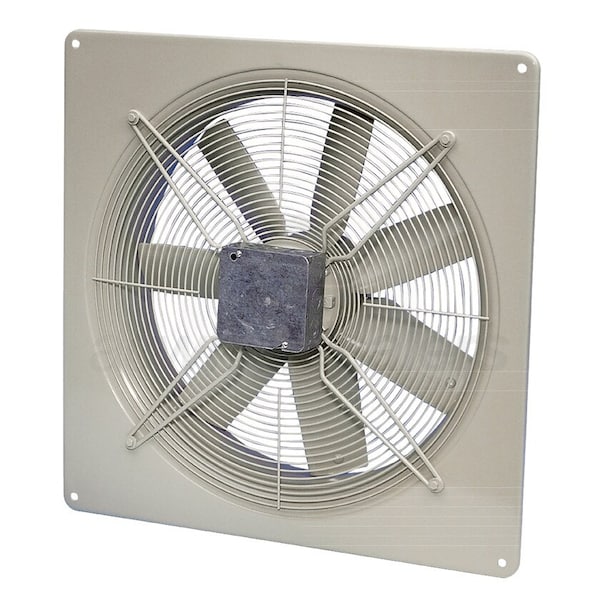

Fantech 7,858 CFM Exhaust Fan Wall Mount 115V 1 Ph Fan Only

Model: FADE25-6 Item Number: 31214
Fantech FADE25-6
PREVIOUS
NEXT
Fantech FADE25-6
Enlarge Image
Our Price: $1,345.00
synchrony card icon
$225 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Fantech 7,858 CFM Exhaust Fan Wall Mount 115V 1 Ph Fan Only
Fantech 7,858 CFM Exhaust Fan Wall Mount 115V 1 Ph Fan Only Model: FADE25-6 Item Number: 31214
$1,345.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Fans
    UPC
    650737342562
Max Air Flow (CFM)
Select Attribute
Type
Select Attribute
Features
View More

Features

Overview for Fantech FADE25-6

The Fantech FADE 25-6 Side Wall Exhaust Fan is a 7,858 CFM commercial axial fan without its assembled housing or damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 25-6 are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737342562
    General Information
    Type
    Exhaust Fan
    Product Line
    FADE
    Product Category
    Fans
    Mount Type
    Wall
    Assembly Type
    Fan Only
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    7858 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    14.8 Sones
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    10.38 Amps
    Dimensions
    Product Width
    31 3/4 Inches
    Shipping Width
    35 Inches
    Shipping Height
    13 Inches
    Shipping Length
    35 Inches
    Shipping Weight
    65 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
