Fantech 1,839 CFM Exhaust Fan Wall Mount 115V 1 Ph Housing and Damper

Model: FADE14-4WHD Item Number: 31217
Ask a Question
Fantech FADE14-4WHD
PREVIOUS
NEXT
Fantech FADE14-4WHD
Fantech FADE14-4WHD
Enlarge Image
Fantech FADE14-4WHD
Fantech FADE14-4WHD
View All
Our Price: $600.00

Ships in 7-14 Business Days
Fantech 1,839 CFM Exhaust Fan Wall Mount 115V 1 Ph Housing and Damper
Fantech 1,839 CFM Exhaust Fan Wall Mount 115V 1 Ph Housing and Damper Model: FADE14-4WHD Item Number: 31217
$600.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Exhaust Fan
    Product Line
    FADE
    Mount Type
    Wall
View More
Max Air Flow (CFM)
Select Attribute
Type
Select Attribute
Features
View More

Features

Overview for Fantech FADE14-4WHD

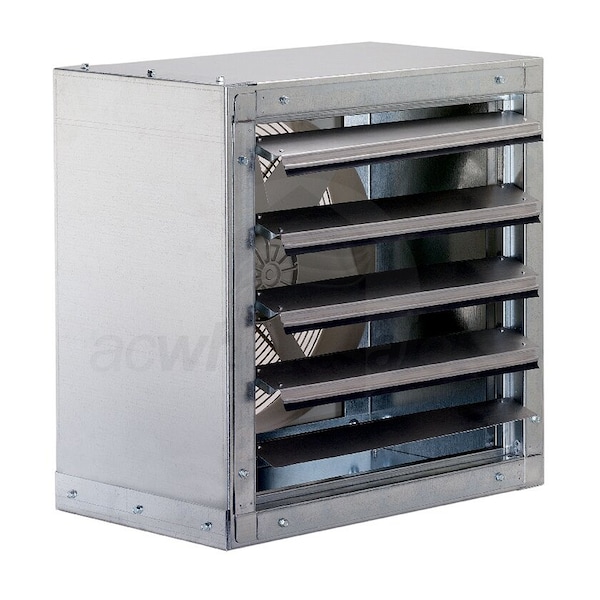

The Fantech FADE 14-4WHD Side Wall Exhaust Fan is a 1,839 CFM commercial axial fan with its assembled housing and damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 14-4WHD are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
Specifications
View More

Specifications

General Information
Type
Exhaust Fan
Product Line
FADE
Mount Type
Wall
Assembly Type
Complete
Housing Material
Galvanized Steel
UPC
650737454234
Performance
Maximum Air Flow
1839 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
9.6 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
2.24 Amps
Dimensions
Product Height
21 Inches
Product Width
19 3/16 Inches
Product Length
15 1/2 Inches
Shipping Width
25 Inches
Shipping Height
20 Inches
Shipping Length
25 Inches
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
