Fantech 355 CFM Central Vent Centri. Multi-Port Exhaust Fan, 4 Point

Model: CVS300A Item Number: 31262
Ask a Question
Fantech CVS300A
PREVIOUS
NEXT
Fantech CVS300A
Enlarge Image
Our Price: $239.95
Ships in 7-14 Business Days
Fantech 355 CFM Central Vent Centri. Multi-Port Exhaust Fan, 4 Point
Fantech 355 CFM Central Vent Centri. Multi-Port Exhaust Fan, 4 Point Model: CVS300A Item Number: 31262
$239.95
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Specification Highlights
    Condition
    New Learn More
    Type
    Ventilation Fan
    Product Line
    CVS
    Ports Quantity
    4
View More
Max Air Flow (CFM)
Select Attribute
Features
View More

Features

Overview for Fantech CVS300A

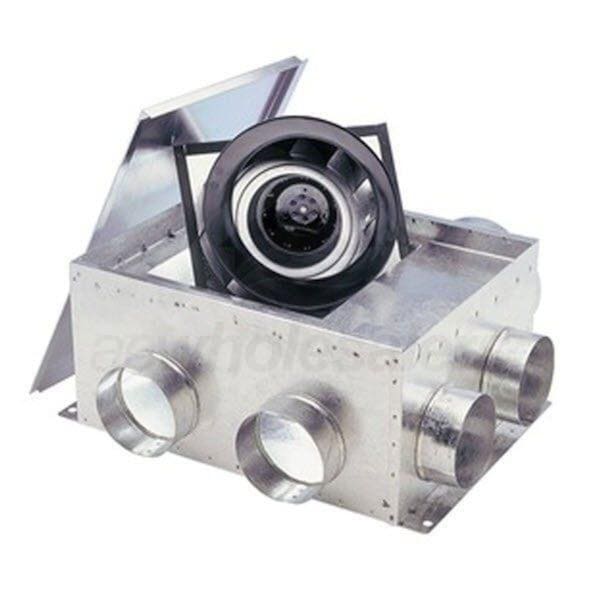

The Fantech CVS 300A Multi-Port Fan is designed for areas where ventilation is needed but space is limited. Commonly installed in the spaces between floors, the CVS 300A is a 4 port centrifugal fan with a maximum airflow of 355 CFM. Multi-port fans allow several exhaust points to connect to one centrally located fan. CVS Series fans are engineered for vibration free, quiet performance. They are capable of handling air flows up to 140 degrees Fahrenheit. Each unit is constructed with a galvanized steel housing and an external rotor motor with a backward-curved centrifugal fan wheel.
Specifications
View More

Specifications

General Information
Type
Ventilation Fan
Product Line
CVS
Ports Quantity
4
Housing Material
Galvanized Steel
UPC
650737333003
Performance
Maximum Air Flow
355 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.07 Amps
Dimensions
Duct Connection
4 Inches
Product Height
8 1/4 Inches
Product Width
16 Inches
Product Length
13 Inches
Shipping Width
21 Inches
Shipping Height
13 Inches
Shipping Length
21 Inches
Shipping Weight
22 Pounds
Intake Diameter
4 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
5 Years
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A
View More

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals
View More
