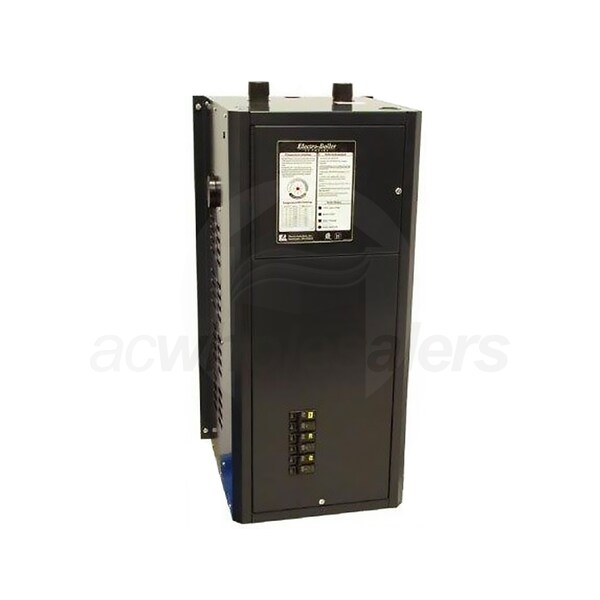

Electro Industries 46K BTU Electric Hot Water Boiler 13.5 kW 240V 1 Ph

Model: EB-WX-13 Item Number: 68429
Electro Industries EB-WX-13
PREVIOUS
NEXT
Electro Industries EB-WX-13
Enlarge Image
Our Price: $3,195.00
synchrony card icon
$56 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 2-3 Weeks
Electro Industries 46K BTU Electric Hot Water Boiler 13.5 kW 240V 1 Ph
Electro Industries 46K BTU Electric Hot Water Boiler 13.5 kW 240V 1 Ph Model: EB-WX-13 Item Number: 68429
$3,195.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    150 Pounds Learn More
    150 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Voltage
Select Attribute
Phase
Select Attribute
DOE Heating Capacity (BTU/Hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Electro Industries EB-WX-13

Our most deluxe model is designed for multiple temperature and zoning applications. This model has the ability to sense water temperature and maintain an accurate boiler temperature output by only energizing the electric elements for needed output (not full capacity). This model eliminates extra costs associated with relays, extra temperature controls, zone boxes, etc. More experienced installers use this boiler to avoid the extra cost of the above.Outdoor sensing with outdoor reset capability. The target supply temperature ramps up as it is colder outside. As part of the EB-WX WarmFlo Electric Boiler Series, the TS Series electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. TS Series EB-WX WarmFlo Electro Boiler is Modulates at a tighter temperature control-Modulating.WarmFlo represents the controlling mechanism within your heating system to "smooth out" the energy capacity within the furnace or boiler to make sure it adjusts to the load capacity requirement at each thermostat call for heat. WarmFlo is the 21st century controller for your heating system. It applies to any electric or dual heat system, new or retrofit. This article presents only two applications - electric boiler and heat pump - do not overlook other applications and the many WarmFlo benefits.
  • Electro Industries EB-WX-13 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 185 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    EB-WX
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Assembly Type
    Packaged
    Includes Pump
    No
    Performance
    Heating Capacity
    46075 BTU
    Heating Capacity (kW)
    13.5 kW
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    56 Amps
    Dimensions
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/4 Inches
    Product Height
    37 5/16 Inches
    Product Width
    17 Inches
    Product Depth
    17 1/16 Inches
    Product Weight
    150 Pounds
    Shipping Weight
    150 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heating Element Warranty
    20 Years
    Vessel Warranty
    20 Years
