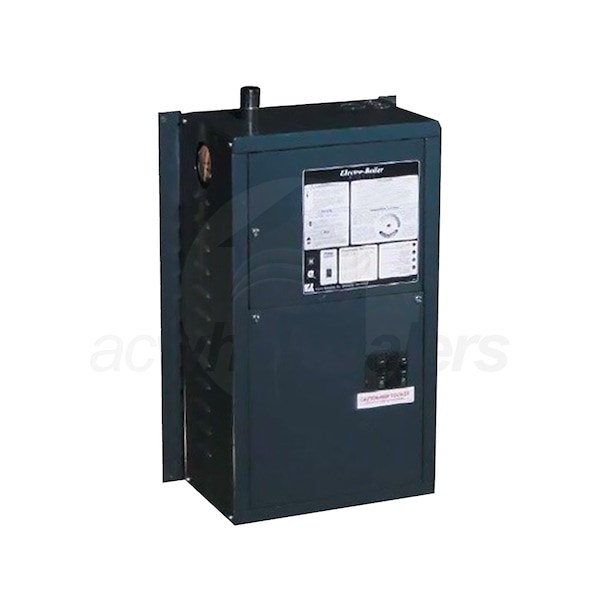

Electro Industries 51K BTU Electric Hot Water Boiler 15 kW 240V 1 Ph

Model: EB-MS-15 Item Number: 18279
Electro Industries EB-MS-15
PREVIOUS
NEXT
Electro Industries EB-MS-15
Enlarge Image
Our Price: $2,421.00
synchrony card icon
$404 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-3 Weeks
Electro Industries 51K BTU Electric Hot Water Boiler 15 kW 240V 1 Ph
Electro Industries 51K BTU Electric Hot Water Boiler 15 kW 240V 1 Ph Model: EB-MS-15 Item Number: 18279
$2,421.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    75 Pounds Learn More
    75 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Electric Heat Capacity (kW)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Electro Industries EB-MS-15

Our new Mid-Size EB-MS Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. As part of our EB-MS Electric Boiler Series, the Midsize electric boiler offers complete application flexibility. Features - 205 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. Mid-Size EB-MS Electro Boiler is Outlet Temperature Sensing Boiler (Staging).
  • Electro Industries EB-MS-15 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 185 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    EB-MS
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Staging
    Mount Type
    Wall
    Assembly Type
    Packaged
    Includes Pump
    No
    Performance
    Heating Capacity
    51000 BTU
    Heating Capacity (kW)
    15 kW
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    62.5 Amps
    Dimensions
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    28 Inches
    Product Width
    17 Inches
    Product Depth
    10 Inches
    Product Weight
    75 Pounds
    Shipping Weight
    75 Pounds
    Warranty Information
    Vessel Warranty
    20 Years
