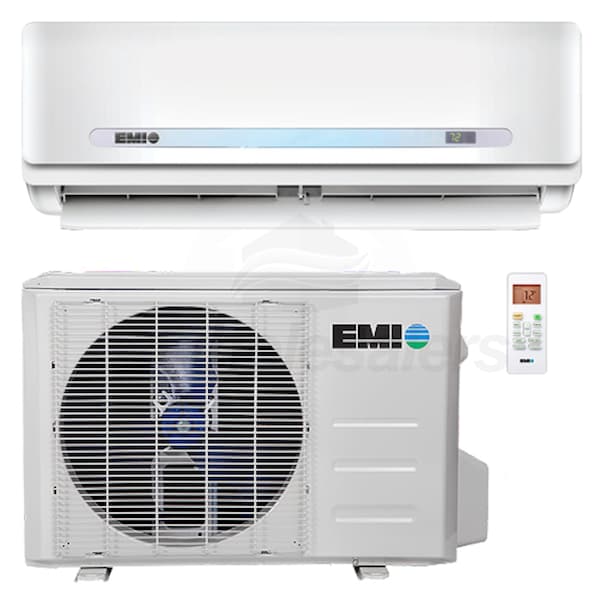

EMI I-verter 12,000 BTU 21.5 SEER Ductless Mini Split Heat Pump 115V

Model: SZ1H12A WALH12A Item Number: 87749
Ask a Question
EMI SZ1H12A WALH12A
PREVIOUS
NEXT
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
Enlarge Image
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
EMI SZ1H12A WALH12A
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    Weight
    62 Pounds Learn More
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • (1) EMI I-verter 12,000 BTU 21.5 SEER Ductless Heat Pump Condenser 115V (SZ1H12A)
  • (1) EMI I-verter 12,000 BTU Ductless Heat Pump Air Handler 115V (WALH12A)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for EMI SZ1H12A WALH12A

Overview for EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A SystemHomeowners and commercial establishments know sometimes you only need to cool or heat one area, not the entire building. Unlike traditional systems which are large, loud and inefficient, the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System provides low cost and energy efficient heating and cooling exactly where you want it, without the need for expensive duct work and noisy machinery.The EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System can be used to control the temperature in one area.The I-Verter Ductless Mini Split series further expands the EMI Ductless Mini-Split product line.EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System throughout the yearsEMI represents years of Ductless Mini Split engineering with the pursuit for perfection. The EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System combines being esthetically pleasing and energy efficient. Construction of the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System is space saving and are the perfect comfort solution for room additions, remodels, garage conversions, workshops or any other space that you want to make comfortable.EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System is backed by Inverter technologyEMI Ductless Mini splits use INVERTER-driven compressor technology which uses only the energy it needs to cool or heat your space. Your system smoothly responds to changes in indoor and outdoor temperatures to precisely control your comfort. This is unlike traditional air conditioning and heating systems that turn fully on and off with a bang. Not only can you maintain a consistently comfortable temperature with the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System, you can also lower your next energy bill.Time to set the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System and forget it.Take advantage of the auto level swing louvers. In cooling mode, louvers self-adjust to horizontal position and circulate cold air more efficiently. In heating mode, louvers deflect hot air downward so hot air will rise and circulate keeping the room warm. You can also take advantage of the 24 Hour Timer built into the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A Wall Mounted Air Handler as a standard feature. Set a wide variety of timer based operations, start and stop at specific times. Control fan speed as well as cool, heat and auto from anywhere in the room.What exactly does the Auto Restart function do on the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System?We understand how frustrating it can be to experience power loss. Even worse is having to reprogram the clock on all of the electronics in the house. The EMI Ductless Mini split company understands that a Ductless Mini Split air conditioner needs to be not only energy efficient but quiet. This is why the EMI Ductless Mini Split Heat Pump Air Conditioner SZ1H12A WALH12A System has auto restart function built in. If the system unexpectedly shuts down due to power failure, system will restart with previous function setting when power is restored.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    • EMI I-verter 12,000 BTU 21.5 SEER Ductless Heat Pump Condenser 115V
      Model: SZ1H12A
      Item Number: 83858
      Quantity: 1

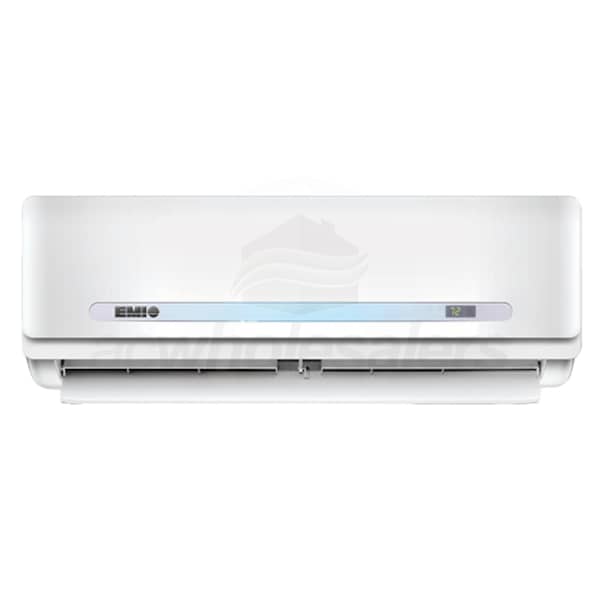

    • EMI I-verter 12,000 BTU Ductless Heat Pump Air Handler 115V
      Model: WALH12A
      Item Number: 83850
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    SZ1H12A Specifications
    WALH12A Specifications
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    12
    Outdoor Unit Size
    12000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating Capacity
    12000 BTU
    SEER Learn More
    21.5
    EER Learn More
    12.5
    HSPF Learn More
    11.2
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    -13 F
    Dimensions
    Product Weight
    62 Pounds
    Shipping Weight
    82 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    2 Years Years
    Compressor Warranty
    6 Years Years
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    SEER Learn More
    21.5
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    13 13/16 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    13 1/8 Inches
    Product Weight
    40 Pounds
    Shipping Weight
    50 Pounds
    Warranty Information
    Parts Warranty Learn More
    2 Years
    Compressor Warranty
    6 Years
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Heating and Cooling
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    12
    Installation Location
    Indoor
    Color
    White
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    11 11/16 Inches
    Product Width
    31 9/16 Inches
    Product Depth
    7 7/16 Inches
    Product Weight
    22 Pounds
    Shipping Weight
    32 Pounds
    Warranty Information
    Parts Warranty Learn More
    2 Years
