Durastar - 18k BTU - Ceiling Cassette - Multi or Single Zone

Model: DRAC18F1A Item Number: 113023
Durastar DRAC18F1A
PREVIOUS
NEXT
Durastar DRAC18F1A
Durastar DRAC18F1A
Durastar DRAC18F1A
Durastar DRAC18F1A
Enlarge Image
Durastar DRAC18F1A
Durastar DRAC18F1A
Durastar DRAC18F1A
Durastar DRAC18F1A
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    35.7 Pounds Learn More
    35.7 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Bundle Includes 2 items
  • product image

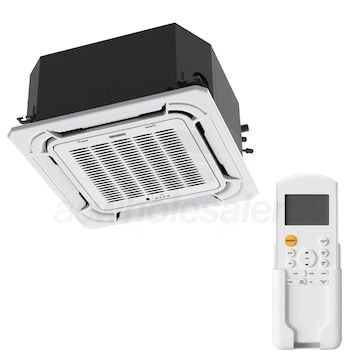

    (1) Durastar 18,000 BTU Ceiling Cassette Indoor Unit (DRAC18F1A-NG)
  • product image
    (1) Durastar Ceiling Cassette Panel for 9K, 12K, 18K Models (DRACPANA1A)
Capacity (BTU/hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DRAC18F1A

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs. Featuring "Follow-Me" technology, heating capabilities down to -13°F and efficiencies up to 21.5 SEER (with compatible outdoor condenser), the DRAC series Ceiling Cassettes are perfect for high-quality comfort.
  • Durastar Ceiling Cassette Features
  • Wireless Remote with "Follow-Me" Technology
  • Single or Multi Zone Compatible
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Third-Party Thermostat Interface
  • The DR24VINT1 interface works with Durastar indoor units, enabling third-party Wi-Fi compatible thermostats to control them. It's compatible with various 24V Wi-Fi thermostat brands like Nest, Ecobee, Honeywell, and Proselect for wireless control.
  • Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
    Bundle Includes 2 items
    • product kit image
      Durastar 18,000 BTU Ceiling Cassette Indoor Unit
      Model: DRAC18F1A-NG
      Item Number: 112985
      Quantity: 1
    • product kit image
      Durastar Ceiling Cassette Panel for 9K, 12K, 18K Models
      Model: DRACPANA1A
      Item Number: 112593
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Ceiling Cassette
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    18000
    Heating BTU
    18000
    Maximum Air Flow
    560 CFM
    Minimum Air Flow
    415 CFM
    Minimum Sound Level
    36 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 1/4 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    35.7 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Years
    General Information
    Type
    Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    18000
    Heating BTU
    18000
    Maximum Air Flow
    560 CFM
    Minimum Air Flow
    415 CFM
    Minimum Sound Level
    36 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 1/4 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    35.7 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    General Information
    Type
    Grille
    Installation Location
    Indoor
    Dimensions
    Product Height
    2 Inches
    Product Width
    25 1/2 Inches
    Product Depth
    25 1/2 Inches
    Product Weight
    5.5 Pounds
