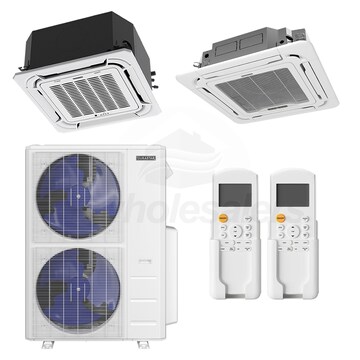

Durastar Ceiling Cassette 2-Zone System - 48,000 BTU Outdoor - 9k + 24k Indoor - 21.5 SEER

Model: DR2H48C0924 Item Number: 113205
Ask a Question
Durastar DR2H48C0924
PREVIOUS
NEXT
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Enlarge Image
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
Durastar DR2H48C0924
View All
FREE Line Set (up to 25ft).
With Durastar Mini Split Systems Purchase
Hurry, Offer Ends Soon!
Our Price: $4,962.00
$63 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Friday, April 16th
Durastar Ceiling Cassette 2-Zone System - 48,000 BTU Outdoor - 9k + 24k Indoor - 21.5 SEER
Durastar Ceiling Cassette 2-Zone System - 48,000 BTU Outdoor - 9k + 24k Indoor - 21.5 SEER Model: DR2H48C0924 Item Number: 113205
$4,962.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Ceiling Cassette
    Operating Mode
    Heating and Cooling
    Number of Zones
    2
View More
Bundle Includes 5 items
  • (1) Durastar - 48k BTU - Outdoor Condenser - For 2-5 Zones (DRA5U48M1A)
  • (1) Durastar 24,000 BTU Ceiling Cassette Indoor Unit (DRAC24F1A-NG)
  • (1) Durastar 9,000 BTU Ceiling Cassette Indoor Unit (DRAC09F1A-NG)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DR2H48C0924

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs.
  • Durastar Ceiling Cassette Air Conditioning System Features
  • Wireless Remote with "Follow-Me" Technology
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Recommended line set sizes for indoor unit connectivity:
  • DRAC09F1A 1/4" x 3/8" Line Set
  • DRAC24F1A 1/4" x 1/2" Line Set
  • Product Note
    • Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
      • Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
        • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
        • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
        • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
        • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
        • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
        Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 5 items
    • Durastar - 48k BTU - Outdoor Condenser - For 2-5 Zones
      Model: DRA5U48M1A
      Item Number: 112580
      Quantity: 1
    • Durastar 24,000 BTU Ceiling Cassette Indoor Unit
      Model: DRAC24F1A-NG
      Item Number: 112987
      Quantity: 1
    • Durastar 9,000 BTU Ceiling Cassette Indoor Unit
      Model: DRAC09F1A-NG
      Item Number: 112984
      Quantity: 1
    • Durastar Ceiling Cassette Panel for 24K Model
      Model: DRACPANB1A
      Item Number: 112592
      Quantity: 1
    • Durastar Ceiling Cassette Panel for 9K, 12K, 18K Models
      Model: DRACPANA1A
      Item Number: 112593
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    DRA5U48M1A Specifications
    DRAC24F1A-NG Specifications
    DRAC09F1A-NG Specifications
    DRACPANB1A Specifications
    DRACPANA1A Specifications
    General Information
    Type
    Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 24
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    48000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    21.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.6
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    11.5
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    48000
    Heating BTU
    48000
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    21.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.6
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    11.5
    Maximum Air Flow
    4500 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    64 dB
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    50 Amps
    Dimensions
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Line Set E Liquid Connection
    1/4 Inch
    Line Set E Gas Connection
    1/2 Inch
    Product Height
    52 1/2 Inches
    Product Width
    37 1/2 Inches
    Product Depth
    16 5/16 Inches
    Product Weight
    223.8 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    No
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    General Information
    Type
    Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    24000
    Heating BTU
    24400
    Maximum Air Flow
    878 CFM
    Minimum Air Flow
    625 CFM
    Minimum Sound Level
    43 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    51 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    8 1/16 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    33 1/16 Inches
    Product Weight
    46.3 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    General Information
    Type
    Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    9000
    Heating BTU
    10000
    Maximum Air Flow
    374 CFM
    Minimum Air Flow
    257 CFM
    Minimum Sound Level
    33 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    41 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 1/4 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    32 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    General Information
    Type
    Grille
    Installation Location
    Indoor
    Dimensions
    Product Height
    2 3/16 Inches
    Product Width
    37 7/16 Inches
    Product Depth
    37 7/16 Inches
    Product Weight
    11 Pounds
    General Information
    Type
    Grille
    Installation Location
    Indoor
    Dimensions
    Product Height
    2 Inches
    Product Width
    25 1/2 Inches
    Product Depth
    25 1/2 Inches
    Product Weight
    5.5 Pounds
