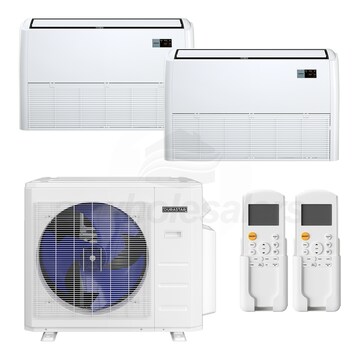

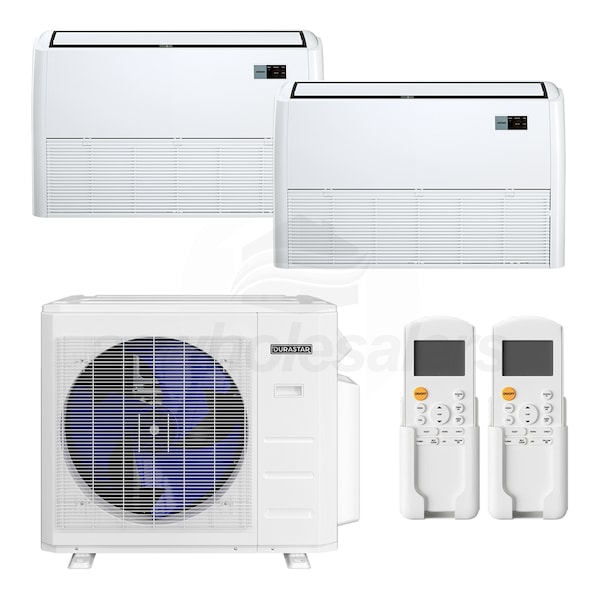

Durastar Floor Mounted 2-Zone System - 36,000 BTU Outdoor - 18k + 18k Indoor - 22.5 SEER

Model: DR2H36F1818 Item Number: 113390
Ask a Question
Durastar DR2H36F1818
PREVIOUS
NEXT
Durastar DR2H36F1818
Durastar DR2H36F1818
Durastar DR2H36F1818
Durastar DR2H36F1818
Durastar DR2H36F1818
Enlarge Image
Durastar DR2H36F1818
Durastar DR2H36F1818
Durastar DR2H36F1818
Durastar DR2H36F1818
Durastar DR2H36F1818
View All
Our Price: $3,824.00
synchrony card icon
$67 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships in 1-2 Business Days
Durastar Floor Mounted 2-Zone System - 36,000 BTU Outdoor - 18k + 18k Indoor - 22.5 SEER
Durastar Floor Mounted 2-Zone System - 36,000 BTU Outdoor - 18k + 18k Indoor - 22.5 SEER Model: DR2H36F1818 Item Number: 113390
$3,824.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Type
    Floor Mounted
    Operating Mode
    Heating and Cooling
    Number of Zones
    2
View More
Bundle Includes 3 items
  • product image
    (1) Durastar - 36k BTU - Outdoor Condenser - For 2-4 Zones (DRA4U36M1A)
  • product image
    (2) Durastar - 18k BTU - Floor/Ceiling - For Multi or Single Zone (DRAF18F1A)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DR2H36F1818

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs.
  • Durastar Floor Mounted Air Conditioning System Features
  • Versatile Floor or Ceiling Installation
  • Wireless Remote with "Follow-Me" Technology
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Recommended line set sizes for indoor unit connectivity:
  • DRAF18F1A 1/4" x 1/2" Line Set (Qty 2)
  • Product Note
    • Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
      • Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
        • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
        • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
        • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
        • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
        • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
        Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    DRA4U36M1A Specifications
    DRAF18F1A Specifications
    General Information
    Type
    Floor Mounted
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    18 + 18
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    SEER Learn More
    22.5
    EER Learn More
    11.25
    HSPF Learn More
    10.3
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Heating BTU
    36000
    SEER Learn More
    22.5
    EER Learn More
    11.25
    HSPF Learn More
    10.3
    Maximum Air Flow
    2147 CFM
    Maximum Sound Level Learn More
    62.3 dB
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    45 Amps
    Dimensions
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Product Height
    31 7/8 Inches
    Product Width
    37 1/4 Inches
    Product Depth
    16 1/8 Inches
    Product Weight
    156.5 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    No
    Warranty Information
    Parts Warranty Learn More
    10 Years
    General Information
    Type
    Floor/Ceiling Mounted
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    18
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    18000
    Heating BTU
    18000
    Maximum Air Flow
    578 CFM
    Minimum Air Flow
    465 CFM
    Minimum Sound Level
    39 dB
    Maximum Sound Level Learn More
    47 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    26 9/16 Inches
    Product Width
    42 1/16 Inches
    Product Depth
    9 1/4 Inches
    Product Weight
    57.1 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    10 Years
