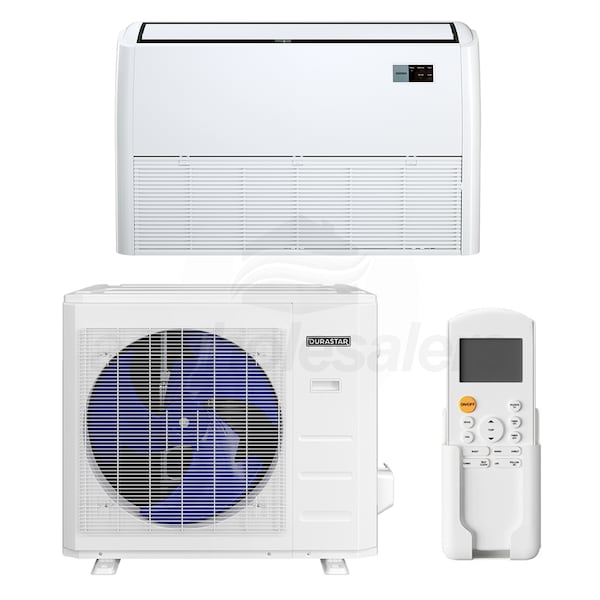

Durastar - 24k BTU Cooling + Heating - Floor/Ceiling Mounted Air Conditioning System - 20.0 SEER

Model: DR1H24FC24 Item Number: 113059
Ask a Question
Durastar DR1H24FC24
PREVIOUS
NEXT
Durastar DR1H24FC24
Durastar DR1H24FC24
Durastar DR1H24FC24
Durastar DR1H24FC24
Durastar DR1H24FC24
Enlarge Image
Durastar DR1H24FC24
Durastar DR1H24FC24
Durastar DR1H24FC24
Durastar DR1H24FC24
Durastar DR1H24FC24
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    Weight
    201.7 Pounds Learn More
    Type
    Floor Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • product image
    (1) Durastar - 24k BTU - Single Zone Outdoor Unit (DRA1U24S1A)
  • product image
    (1) Durastar - 24k BTU - Floor/Ceiling - For Multi or Single Zone (DRAF24F1A)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DR1H24FC24

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs
  • Durastar Floor/Ceiling Mounted Air Conditioning System Features
  • Wireless Remote with "Follow-Me" Technology
  • Versatile Floor or Ceiling Installation
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    DRA1U24S1A Specifications
    DRAF24F1A Specifications
    General Information
    Type
    Floor Mounted
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    24
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating Capacity
    30000 BTU
    SEER Learn More
    20.0
    EER Learn More
    12.5
    HSPF Learn More
    11.0
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/244 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    201.7 Pounds
    Shipping Weight
    224.2 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    206369529
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Heating BTU
    25000
    SEER Learn More
    21.5
    EER Learn More
    12.5
    HSPF Learn More
    11
    Maximum Air Flow
    2235 CFM
    Maximum Sound Level Learn More
    61 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    25 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    31 7/8 Inches
    Product Width
    37 1/4 Inches
    Product Depth
    16 1/8 Inches
    Product Weight
    141.1 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    10 Years
    General Information
    Type
    Floor/Ceiling Mounted
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    24
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    24000
    Heating BTU
    24000
    Maximum Air Flow
    759 CFM
    Minimum Air Flow
    598 CFM
    Minimum Sound Level
    42 dB
    Maximum Sound Level Learn More
    53 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    26 9/16 Inches
    Product Width
    42 1/16 Inches
    Product Depth
    9 1/4 Inches
    Product Weight
    60.6 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    10 Years
