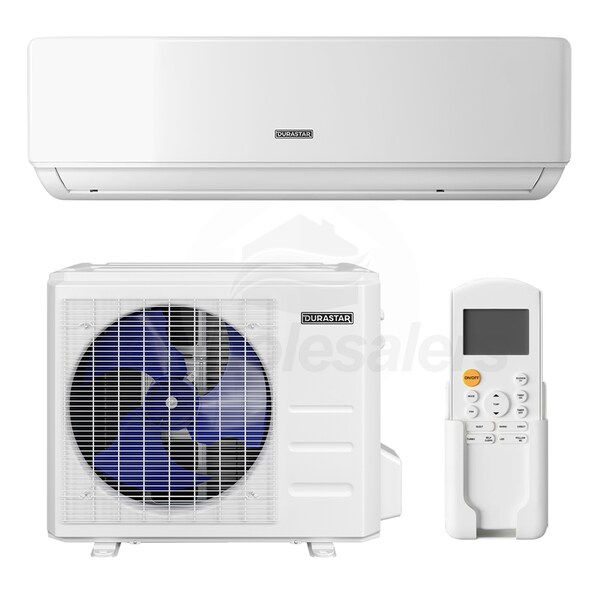

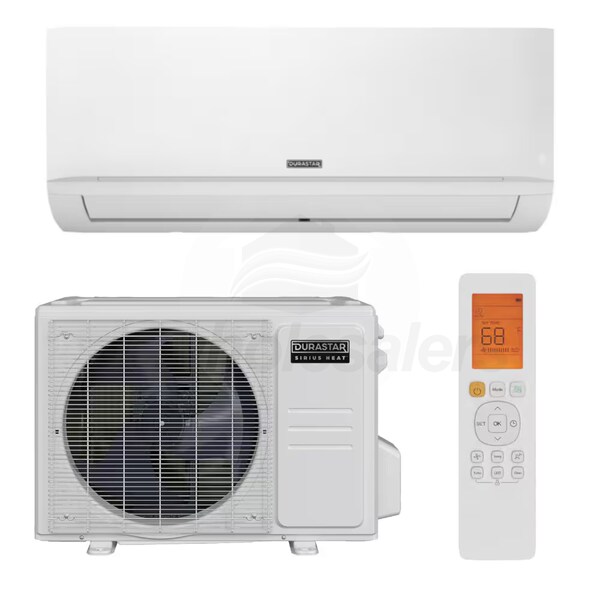

Durastar - 18k BTU Cooling + Heating - Wall Mounted Air Conditioning System - 21.0SEER

Model: DR1H18W18 Item Number: 113047
Ask a Question
Durastar DR1H18W18
PREVIOUS
NEXT
Durastar DR1H18W18
Durastar DR1H18W18
Durastar DR1H18W18
Durastar DR1H18W18
Enlarge Image
Durastar DR1H18W18
Durastar DR1H18W18
Durastar DR1H18W18
Durastar DR1H18W18
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    Weight
    134.7 Pounds Learn More
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • product image
    (1) Durastar - 18k BTU - Single Zone Outdoor Unit (DRA1U18S1A)
  • product image
    (1) Durastar - 18k BTU - Wall Mounted - For Multi or Single Zone (DRAW18F1A)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DR1H18W18

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs
  • Durastar Wall Mounted Air Conditioning System Features
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
    Bundle Includes 2 items
    • product kit image
      Durastar - 18k BTU - Single Zone Outdoor Unit
      Model: DRA1U18S1A
      Item Number: 112579
      Quantity: 1
    • product kit image
      Durastar - 18k BTU - Wall Mounted - For Multi or Single Zone
      Model: DRAW18F1A
      Item Number: 112576
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    DRA1U18S1A Specifications
    DRAW18F1A Specifications
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    18
    Outdoor Unit Size
    18000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Heating Capacity
    18800 BTU
    SEER Learn More
    21.0
    EER Learn More
    13.0
    HSPF Learn More
    10.0
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/232 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    134.7 Pounds
    Shipping Weight
    151.4 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    206369517
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    18000
    Heating BTU
    18000
    SEER Learn More
    21
    EER Learn More
    13
    HSPF Learn More
    10.5
    Maximum Air Flow
    1471 CFM
    Maximum Sound Level Learn More
    60 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    27 5/8 Inches
    Product Width
    33 1/4 Inches
    Product Depth
    14 5/16 Inches
    Product Weight
    105.2 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    10 Years
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    18
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    18000
    Heating BTU
    18000
    Moisture Removal
    3.8 Pints/Hour
    Maximum Air Flow
    559 CFM
    Minimum Air Flow
    306 CFM
    Minimum Sound Level
    32 dB
    Maximum Sound Level Learn More
    43 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    13 3/16 Inches
    Product Width
    42 1/2 Inches
    Product Depth
    8 7/8 Inches
    Product Weight
    29.5 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    10 Years
