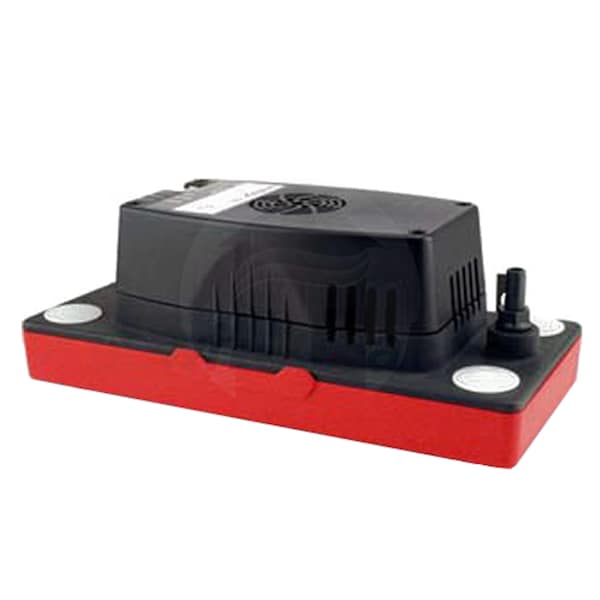

Diversitech Low Profile Condensate Pump 22' Lift 120 Volts

Model: CP-22LP Item Number: 83689
Ask a Question
Diversitech CP-22LP
PREVIOUS
NEXT
Diversitech CP-22LP
Watch Video
Enlarge Image
Diversitech CP-22LP
Diversitech CP-22LP
Watch Video
View All
Our Price: $65.00
55 In-Stock
Ships Wednesday, March 10th
Diversitech Low Profile Condensate Pump 22' Lift 120 Volts
Diversitech Low Profile Condensate Pump 22' Lift 120 Volts Model: CP-22LP Item Number: 83689
$65.00
55 In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    4.7 Pounds
    UPC
    095247121694
View More
Features
View More

Features

Overview for Diversitech CP-22LP

Overview for Diversitech CP-22LPSuitable for use with condensate from high efficiency condensing furnaces and boilers which produce acidic condensate. 22' of lift compared to the typical 20'. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve, and pan pill dispenser. Integrating the CP-22 into your system is easy. 1/4 inch quick connect terminals provide easy connection to the built in overflow switch. 3 terminals are provided allowing flexibility to connect air-handler shut-down and optional alarm as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4 3/8 tall so it's a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degrees F.
  • Check Valve - Removable check valve for easy cleaning.
  • Vibration Isolation - An elastomeric motor mounting gasket dampens vibration.
  • Pan Pill Dispenser - A pan tablet dispenser is included free with every pump. Perfectly compatible with DiversiTech's Pro-Treat pan tablets.
  • Rubber Feet - Rubber feet dampen vibration which reduces noise.
  • Four Inlet Holes - Four inlets versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for increased durability.
  • A Float That Floats - A float manufactured from foamed polyethylene is a simple, chemical and environmentally resistant, long lasting float.
  • Indicator Lights - Red, yellow, and green indicator lights show the pump status. Green for power applied, yellow for pump running, and red for high level alarm.
  • Metal Hang Tabs - Shatterproof stainless steel hang tabs have hole-and-slot design for easy mounting. Tabs are located on convenient 8" centers.
  • Our SKU number(s): Diversitech CP-22LP
  • The manufacturer model number(s): Diversitech CP-22LP
  • Specifications
    View More

    Specifications

    Overview
    Weight
    4.7 Pounds
    UPC
    095247121694
    Pump
    Gallons Per Minute
    1.2 Gallons
    Suction Head
    4.4 Feet
    Max Head
    22 Feet
    Motor
    Starting Amps
    1
    Electrical Data
    Voltage
    120 Volts
    Dimensions
    Product Height
    6 17/24 Inches
    Product Width
    5 43/48 Inches
    Product Length
    11 19/24 Inches
