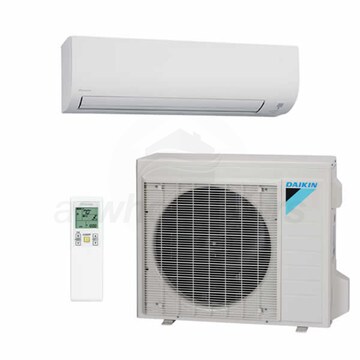

Daikin 24,000 BTU 18 SEER Ductless Heat Pump Air Conditioning System

Model: X24NMVJU Item Number: 65544
Ask a Question
Daikin X24NMVJU
PREVIOUS
NEXT
Daikin X24NMVJU
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Enlarge Image
Daikin X24NMVJU
Daikin X24NMVJU
Watch Video
Daikin X24NMVJU
Watch Video
Daikin X24NMVJU
Watch Video
Daikin X24NMVJU
Watch Video
Daikin X24NMVJU
Watch Video
Daikin X24NMVJU
Watch Video
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
Daikin X24NMVJU
View All
Our Price: $1,851.00
Ships in 1-2 Business Days
Daikin 24,000 BTU 18 SEER Ductless Heat Pump Air Conditioning System
Daikin 24,000 BTU 18 SEER Ductless Heat Pump Air Conditioning System Model: X24NMVJU Item Number: 65544
$1,851.00
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    135 Pounds ? Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    19-Series
View More
Bundle Includes 2 items
  • (1) Daikin 24,000 BTU Single Zone Heat Pump Condenser (RX24NMVJU)
  • (1) Daikin 19 Series 24k BTU Wall Mounted Unit - For Single-Zone (FTX24NMVJU)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin X24NMVJU

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The X24NMVJU is a wall mounted system perfect for all your single zone heating and cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Bundle Includes 2 items
  • Daikin 24,000 BTU Single Zone Heat Pump Condenser
    Model: RX24NMVJU
    Item Number: 62964
    Quantity: 1

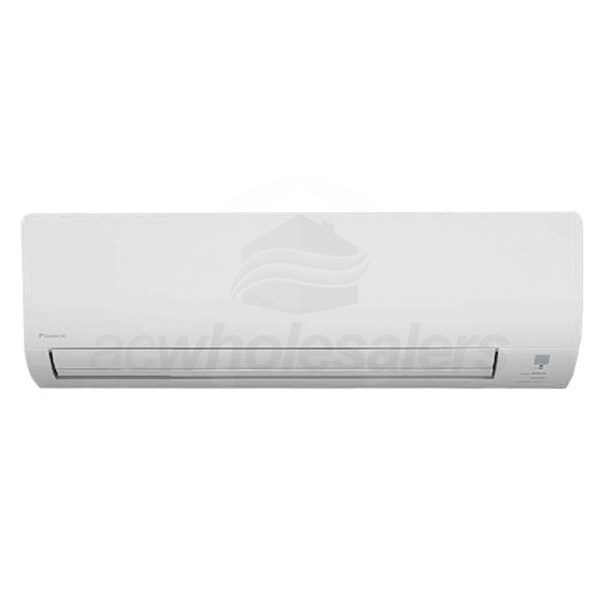

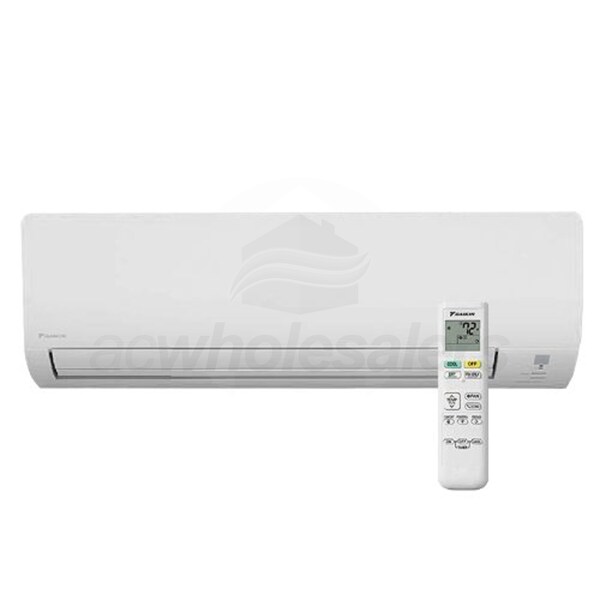

  • Daikin 19 Series 24k BTU Wall Mounted Unit - For Single-Zone
    Model: FTX24NMVJU
    Item Number: 62965
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
RX24NMVJU Specifications
FTX24NMVJU Specifications
General Information
Type
Wall Mounted
Product Line
19-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
24
Refrigerant Type
R-410A
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Line Set Size
1/4" x 5/8"
Performance
Nominal Capacity
24000 BTU
Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
18.0
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
12.5
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
9.0
Cooling Power Input
1700 Watts
Heating Power Input
2010 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
50 F
Dimensions
Product Weight
135 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8064268
General Information
Type
Outdoor Condenser
Product Line
19-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Nominal Capacity
24000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
98.4 Feet
Liquid Connection Size
1/4 Inch
Gas Connection Size
5/8 Inch
Product Height
28 15/16 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
108 Pounds
Shipping Weight
118 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
5 Years
General Information
Type
Wall Mounted
Product Line
19-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
24
Multi-Zone Compatible
No
Refrigerant Type
R-410A

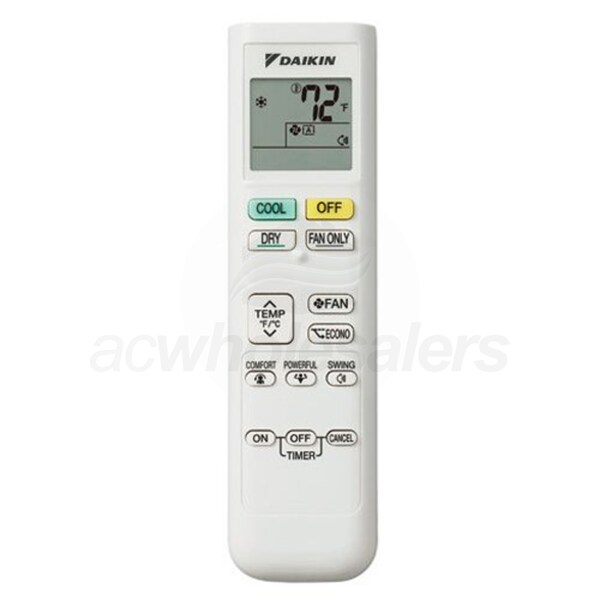

Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
24000 BTU
Cooling Capacity
24000 BTU
Moisture Removal
9.6 Pints/Hour
Minimum Air Flow
403 CFM
Maximum Air Flow
745 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 dB
Minimum Sound Level
34 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Condensate Drain Size
11/16 Inch
Liquid Connection Size
1/4 Inch
Gas Connection Size
5/8 Inch
Product Height
11 5/8 Inches
Product Width
39 Inches
Product Depth
10 1/3 Inches
Product Weight
26 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
