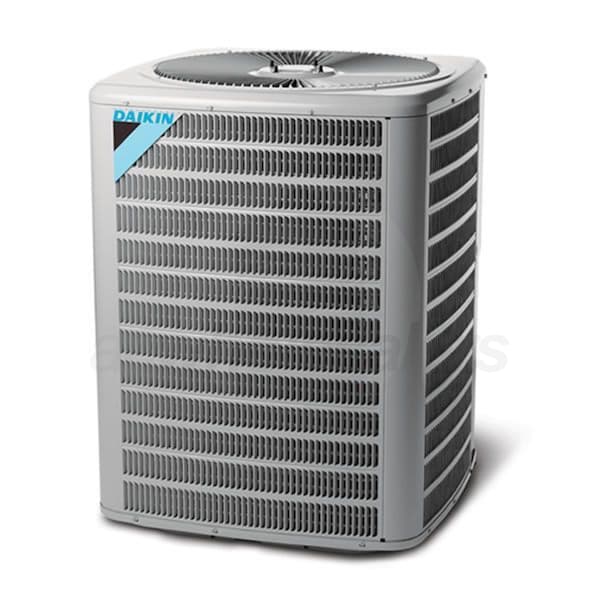

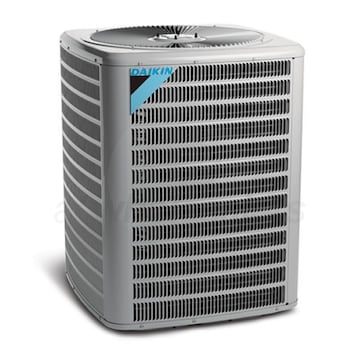

Daikin 7.5 Ton 11.2 EER Air Conditioner Condenser 230V 3 Ph

Name: Daikin 7.5 Ton 11.2 EER Air Conditioner Condenser 230V 3 Ph
Brand: Daikin Light Commercial
SKU: 83638
Price: 3700.00 USD
Availability: OutOfStock

Model: DX11TA0903 Item Number: 83638

Ask a Question

Enlarge Image

View All

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Product Category

Air Conditioning Condensers

UPC

663051566378

Features

Overview for Daikin Light Commercial DX11TA0903

Daikin's DX11 commercial air conditioner uses a high-performance compressor along with a high-efficiency coil design to provide powerful and reliable cooling comfort. The DX11 features a heavy-gauge, galvanized steel casing with a louvered metal guard to protect itself from the elements all year-round. An elevated base pan allows for effective water drainage while also keeping the coil away from debris that can collect inside the unit. Add efficient cooling to your household today with the Daikin DX11 air conditioning system.

Specifications

Overview

Product Category

Air Conditioning Condensers

UPC

663051566378

General Information

Type

Condenser

Product Line

DX11TA

Product Category

Air Conditioning Condensers

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Cooling

Refrigerant Type

R-410A

Installation Location

Outdoor

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Two Stage

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

Performance

Cooling Capacity

90000 BTU

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

11.2

IEER

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

84 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

40 Amps

Recommended Breaker Size

60 Amps

Dimensions

Suction Connection Size

1 3/8 Inches

Liquid Connection Size

5/8 Inch

Product Height

41 1/2 Inches

Product Width

35 1/2 Inches

Product Depth

35 1/2 Inches

Shipping Weight

325 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

5 Limited Years

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Manuals

Spec Sheet
