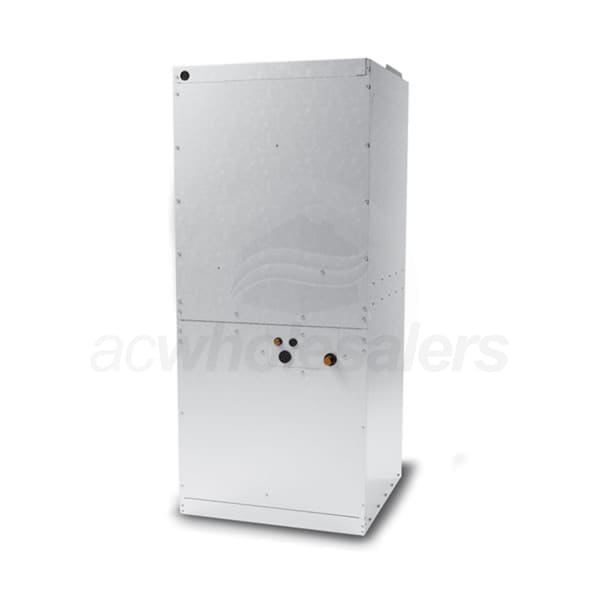

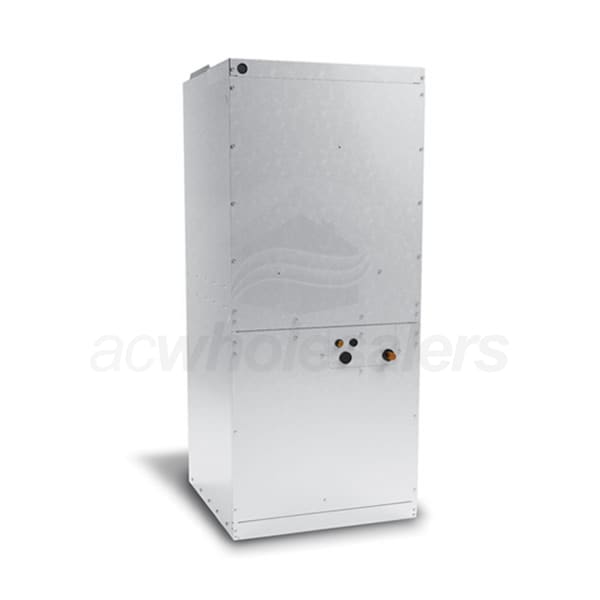

Daikin 7.5 Ton Air Conditioner Air Handler

Model: DAR0904 Item Number: 83642
Daikin Light Commercial DAR0904
PREVIOUS
NEXT
Daikin Light Commercial DAR0904
Daikin Light Commercial DAR0904
Enlarge Image
Daikin Light Commercial DAR0904
Daikin Light Commercial DAR0904
View All
Our Price: $3,205.00
synchrony card icon
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 8-12 Weeks
Daikin 7.5 Ton Air Conditioner Air Handler
Daikin 7.5 Ton Air Conditioner Air Handler Model: DAR0904 Item Number: 83642
$3,205.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    405 Pounds Learn More
    405 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Daikin Light Commercial DAR0904

Overview for Daikin DAR0904Daikin is the world’s leading air conditioning manufacturer, and our products are sold in over 140 countries, including throughout North America. Since the early 1930’s, we've worked to realize a better environment and quality of life through providing heating and cooling solutions.
  • Standard Features:
  • Transformer and blower relay
  • Draw-thru centrifugal blower is belt driven for quiet, efficient operation
  • Heavy-gauge, reinforced, galvanized-steel cabinet
  • Fully insulated with fiberglass blanket
  • Horizontal and vertical condensate pans
  • Built-in filter rack 2 inches filter included
  • Entry on top of panel for both low and high voltage
  • Removable access panels make servicing of unit faster and easier
  • Brass liquid and suction service valves
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    General Information
    Type
    Air Handler
    Product Line
    DAR
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Motor Type
    PSC
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Electric Heat
    Available
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    7.5 Tons
    Cooling BTU
    90000
    Maximum Air Flow
    3000 CFM
    Electrical Data
    Voltage
    460 Volts
    Phase
    3
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6.5 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    60 1/2 Inches
    Product Width
    48 1/8 Inches
    Product Depth
    24 Inches
    Product Weight
    405 Pounds
    Shipping Weight
    405 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
