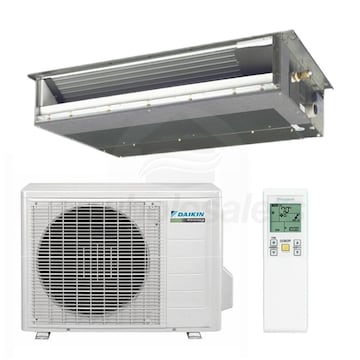

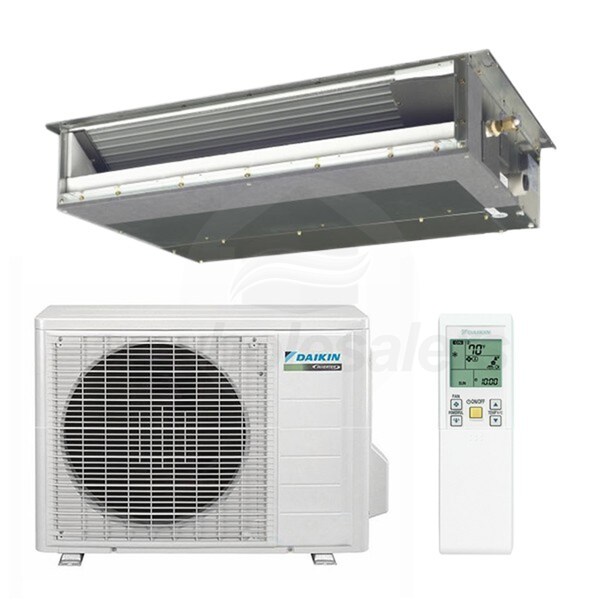

Daikin 12,000 BTU 15.5 SEER Concealed Duct Heat Pump System

Model: DXS12LVJU Item Number: 56786
Ask a Question
Daikin DXS12LVJU
PREVIOUS
NEXT
Daikin DXS12LVJU
Daikin DXS12LVJU
Daikin DXS12LVJU
Enlarge Image
Daikin DXS12LVJU
Daikin DXS12LVJU
Daikin DXS12LVJU
View All
Our Price: $1,953.00
Ships in 1-2 Business Days
Daikin 12,000 BTU 15.5 SEER Concealed Duct Heat Pump System
Daikin 12,000 BTU 15.5 SEER Concealed Duct Heat Pump System Model: DXS12LVJU Item Number: 56786
$1,953.00
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Concealed Duct
    Product Line
    LV-Series
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • (1) Daikin - 12k BTU - LV Series Outdoor Condenser - Single Zone Only (RXS12LVJU)
  • (1) Daikin 12,000 BTU Multi or Single Zone Concealed Duct (FDXS12LVJU)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin DXS12LVJU

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The LV series of split systems packs a wide variety of premium features into a convenient, effective ductless system package. The concealed duct type of indoor unit allows the indoor unit to be hid behind a wall or other building feature, and an advanced filtration system ensures air quality within your home during all stages of operation. Unique circuitry design eliminates standby energy usage by up to 90 percent when compared to other mini split brands, and the included remote means you don't even have to get up from your chair to deliver comfort to your home.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Bundle Includes 2 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
RXS12LVJU Specifications
FDXS12LVJU Specifications
General Information
Type
Concealed Duct
Product Line
LV-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
12
Refrigerant Type
R-410A
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Nominal Capacity
12000 BTU
Cooling Capacity
12000 BTU
Heating Capacity
12000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
15.5
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
10.4
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
0 F
Certifications
ETL Listed
Yes
AHRI Certified
Yes
General Information
Type
Outdoor Condenser
Product Line
LV-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Nominal Capacity
12000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
21 5/8 Inches
Product Width
30 1/8 Inches
Product Depth
11 1/4 Inches
Shipping Weight
75 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Concealed Duct
Product Line
MXS
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
12
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Performance
Nominal Capacity
12000 BTU
Cooling Capacity
12000 BTU
Cooling Power Input
72 Watts
Heating Power Input
72 Watts
Minimum Air Flow
235 CFM
Maximum Air Flow
305 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
35 dB
Minimum Sound Level
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Condensate Drain Size
1 1/24 Inches
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
7 7/8 Inches
Product Width
27 9/16 Inches
Product Depth
24 7/16 Inches
Shipping Weight
64 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
