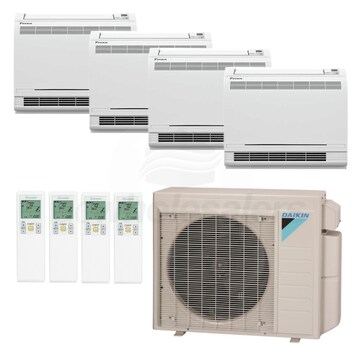

Daikin MXS Floor Mounted 4-Zone System - 36,000 BTU Outdoor - 9k + 9k + 12k + 18k Indoor - 17.7 SEER

Model: D4H36F09091218 Item Number: 122984
Daikin D4H36F09091218
PREVIOUS
NEXT
Daikin D4H36F09091218
Daikin D4H36F09091218
Daikin D4H36F09091218
Daikin D4H36F09091218
Enlarge Image
Daikin D4H36F09091218
Daikin D4H36F09091218
Daikin D4H36F09091218
Daikin D4H36F09091218
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    287 Pounds Learn More
    287 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 5 items
  • product image
    (1) Daikin - 36k BTU - Heat Pump Condenser - Multi Zone (4MXS36RMVJUA)
  • product image
    (1) Daikin 18,000 BTU Multi Zone Floor Mounted Ductless Air Handler (FVXS18NVJU)
  • product image
    (1) Daikin 12,000 BTU Multi Zone Floor Mounted Ductless Air Handler (FVXS12NVJU)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin D4H36F09091218

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The Aurora Series pairs Daikin's latest in condensing technology with quiet, easy to install, floor mounted indoor units. The Aurora Series outdoor condenser is engineered to provide efficient heating and cooling for your home even in extreme weather conditions while guaranteeing long, reliable, service life. Inside your home, Daikin's floor mounted units offer a simple design meant to blend into any setting. Combined with their standard quiet operation, these units are designed to keep your home comfortable without drawing attention. Advanced filtration technology cleans your home's air at the same time it is conditioned, allowing you and your family to breathe easy without fear of lingering pollutants.
  • Inverter Technology
  • The inverter technology works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
  • Low Ambient Cooling and Heating
  • MXS condensers will continue to operate optimally even in colder climates. With an operational cooling range down to 14°F, and a heating range down to 5°F, the MXS can provide heating or cooling in any environment.
  • Whisper Quiet Operation
  • Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the units construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
  • Built-In Advanced Filtration System
  • Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
  • Included Wireless Control
  • The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
  • Recommended line set sizes for indoor unit connectivity:
  • FVXS09NVJU: 1/4" x 3/8" Line Set (Qty 2)
  • FVXS12NVJU: 1/4" x 3/8" Line Set
  • FVXS18NVJU: 1/4" x 1/2" Line Set
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 5 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Floor Mounted
    Product Line
    MXS
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    4
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 9 + 12 + 18
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    17.7
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    9.2
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    12.2
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    287 Pounds
    Shipping Weight
    333 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    205663360
    General Information
    Product Line
    MXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    56 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    23.9 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    1/2 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    1/2 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    5/8 Inch
    Product Height
    28 15/16 Inches
    Product Width
    34 1/4 Inches
    Product Depth
    12 5/8 Inches
    Product Weight
    139 Pounds
    Shipping Weight
    145 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    MXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Maximum Air Flow
    417 CFM
    Minimum Sound Level
    32 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 1/2 Inches
    Product Depth
    8 1/4 Inches
    Product Weight
    37 Pounds
    Shipping Weight
    47 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    MXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    332 CFM
    Minimum Air Flow
    159 CFM
    Minimum Sound Level
    24 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Condensate Drain Size
    13/16 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 1/2 Inches
    Product Depth
    8 1/4 Inches
    Product Weight
    37 Pounds
    Shipping Weight
    47 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    MXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    311 CFM
    Minimum Air Flow
    145 CFM
    Minimum Sound Level
    23 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Condensate Drain Size
    13/16 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 1/2 Inches
    Product Depth
    8 1/4 Inches
    Product Weight
    37 Pounds
    Shipping Weight
    47 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
