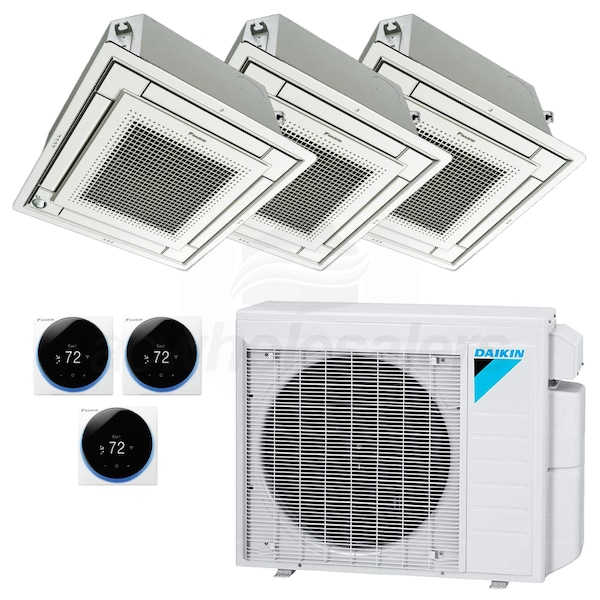

Daikin Ceiling Cassette 3-Zone System - 24,000 BTU Outdoor - 9k + 9k + 9k Indoor - 17.9 SEER

Model: D3H24C09090900 Item Number: 68252
Ask a Question
Daikin D3H24C09090900
PREVIOUS
NEXT
Daikin D3H24C09090900
Daikin D3H24C09090900
Daikin D3H24C09090900
Daikin D3H24C09090900
Enlarge Image
Daikin D3H24C09090900
Daikin D3H24C09090900
Daikin D3H24C09090900
Daikin D3H24C09090900
View All
Our Price: $5,913.68
$74 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 4-6 Weeks
Daikin Ceiling Cassette 3-Zone System - 24,000 BTU Outdoor - 9k + 9k + 9k Indoor - 17.9 SEER
Daikin Ceiling Cassette 3-Zone System - 24,000 BTU Outdoor - 9k + 9k + 9k Indoor - 17.9 SEER Model: D3H24C09090900 Item Number: 68252
$5,913.68
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    299 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    MXS
View More
Bundle Includes 10 items
  • (1) Daikin 24,000 BTU 18 SEER Ductless Multi Zone Heat Pump Condenser (3MXS24RMVJU)

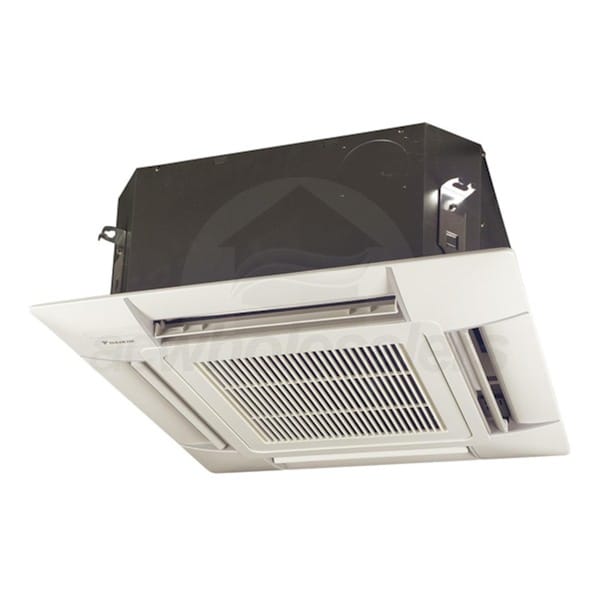

  • (3) Daikin 9,000 BTU Multi Zone Ceiling Cassette Grille Sold Separately (FFQ09Q2VJU-NG)
  • (3) Daikin Wired Remote Controller Ceiling Cassette Units (BRC1E73)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin D3H24C09090900

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This mini split system is designed to provide controlled comfort to any zone in your home. The powerful outdoor unit is engineered to the highest energy efficiency expectations, guaranteeing a long service life of cost-effective performance. The ceiling cassette indoor units blend in seamlessly with surrounding decor, keeping your home comfortable while not drawing attention to themselves. Multiple operating speeds and inverter technology give this multi zone split system the ability to provide efficient comfort to any home imaginable.
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Bundle Includes 10 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
3MXS24RMVJU Specifications
FFQ09Q2VJU-NG Specifications
BRC1E73 Specifications
BYFQ60C2W1W Specifications
General Information
Type
Ceiling Cassette
Product Line
MXS
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9 + 9 + 9
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
17.9
EER Learn More
12.7
HSPF Learn More
12.5
Cooling Power Input
1780 Watts
Heating Power Input
1530 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
299 Pounds
Shipping Weight
303 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8103869
General Information
Type
Outdoor Condenser
Product Line
MXS
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
54 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21.9 Amps
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
1/2 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Product Height
29 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
137 Pounds
Shipping Weight
147 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
MXS
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Not Included
Indoor Unit Size(s) Learn More
9
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
318 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
29.5 dB
Maximum Sound Level Learn More
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
11 1/4 Inches
Product Width
22 5/8 Inches
Product Depth
22 5/8 Inches
Product Weight
48 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Voltage Type
Low-Voltage
Programmable
Yes
Power Source
Hardwired
Interface
Buttons
Minimum Setpoint Range
60 F
Maximum Setpoint Range
90 F
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
3/4 Inch
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Grille
Dimensions
Product Height
1 13/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
1 Pound
Shipping Weight
2 Pounds
