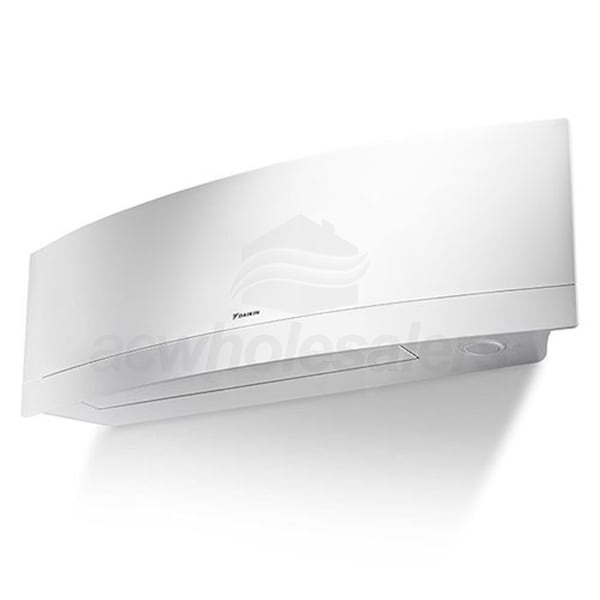

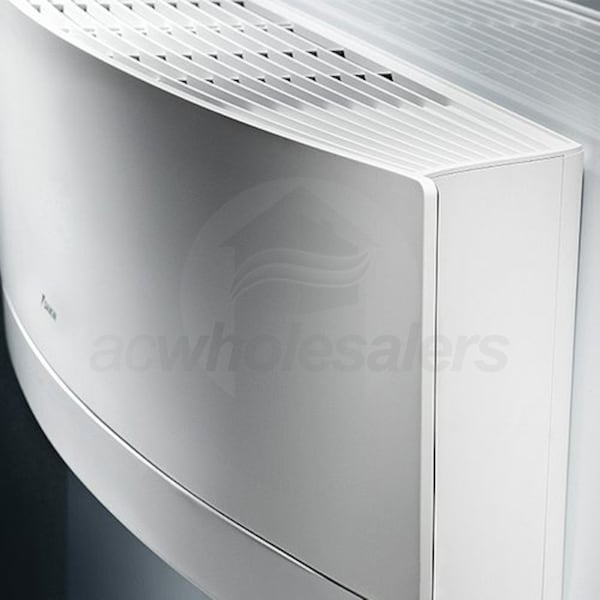

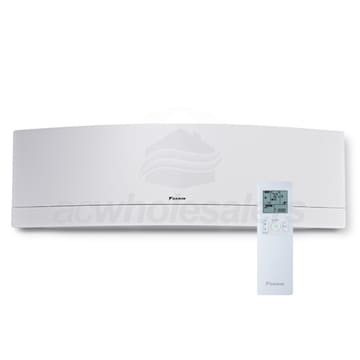

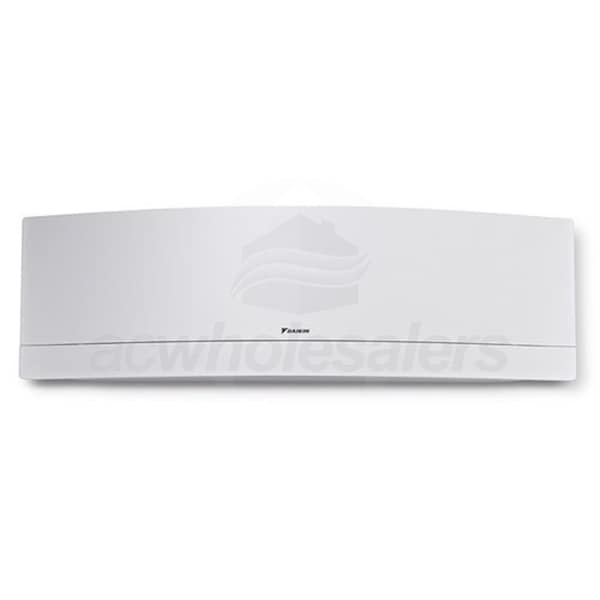

Daikin 12,000 BTU Multi Zone Ductless Wall Mounted Air Handler

Model: CTXG12QVJUW Item Number: 83661
Ask a Question
Daikin CTXG12QVJUW
PREVIOUS
NEXT
Daikin CTXG12QVJUW
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Enlarge Image
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Watch Video
Daikin CTXG12QVJUW
Watch Video
Daikin CTXG12QVJUW
Watch Video
Daikin CTXG12QVJUW
Watch Video
Daikin CTXG12QVJUW
Watch Video
Daikin CTXG12QVJUW
Watch Video
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
Daikin CTXG12QVJUW
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    27 Pounds Learn More Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    Emura
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Daikin CTXG12QVJUW

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The Emura™ Series CTXG12QVJUW is a wall mounted indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and it's sleek, curved silhouette allow the Emura™ unit to blend into almost any home. Daikin indoor units possess powerful energy saving features, allowing Daikin to provide cost-conscious solutions to any home's heating and cooling needs.

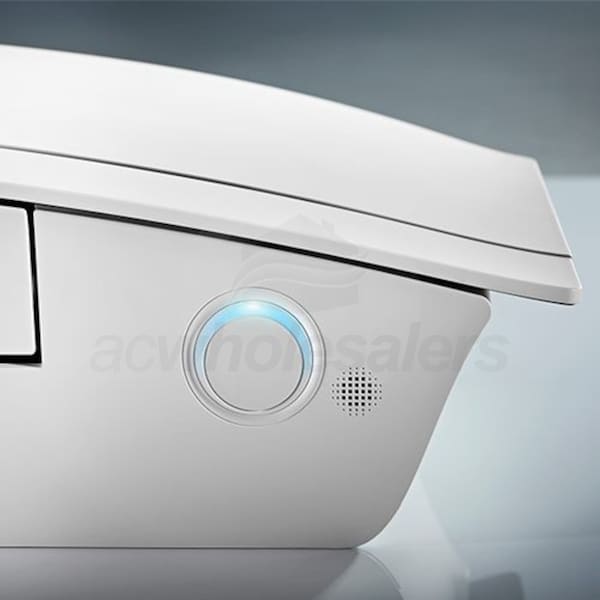

  • 2-Area Intelligent Eye

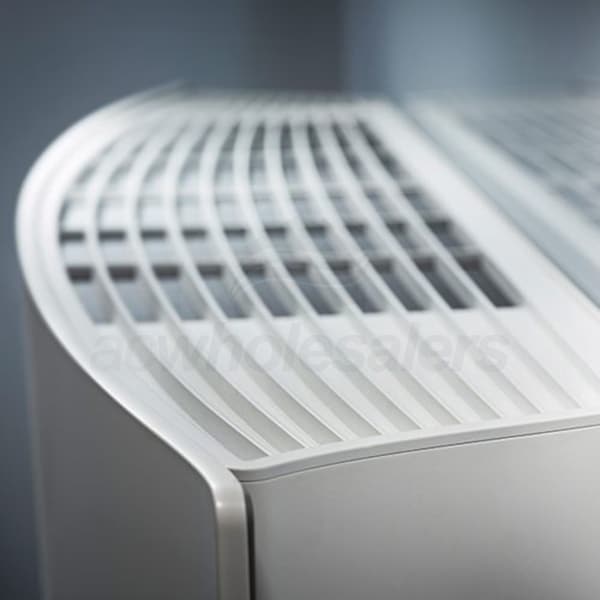

  • Power airflow dual flaps and 3-D Airflow
  • Titanium Apatite Photocatalytic Air Purifying Filter
  • Weekly Timer
  • Program Dry Function
  • Econo Mode
  • Comfort Mode
  • Powerful Operation Mode

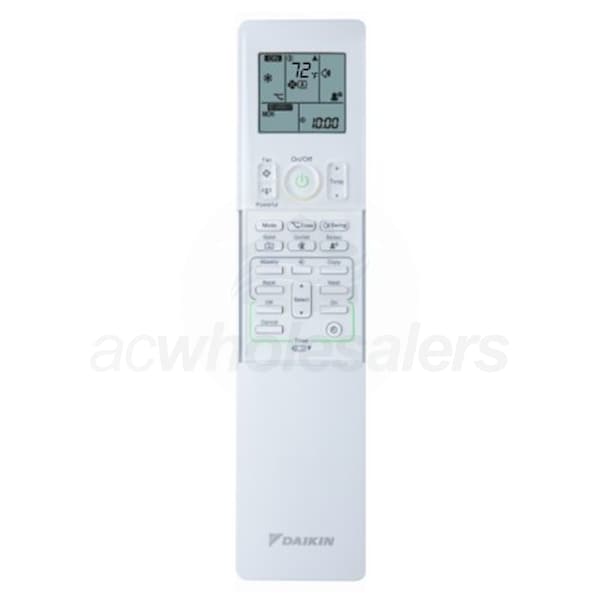

  • Wireless Remote Controller
  • Our SKU number(s): Daikin CTXG12QVJUW
  • The manufacturer model number(s): Daikin CTXG12QVJUW
  • Product Note
    This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Specifications
    View More

    Specifications

    General Information
    Type
    Wall Mounted
    Product Line
    Emura
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Cooling Power Input
    26 Watts
    Heating Power Input
    38 Watts
    Minimum Air Flow
    124 CFM
    Maximum Air Flow
    420 CFM
    Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    45 dB
    Minimum Sound Level
    22 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Condensate Drain Size
    11/16 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    11 15/16 Inches
    Product Width
    39 5/16 Inches
    Product Depth
    8 3/8 Inches
    Product Weight
    27 Pounds
    Shipping Weight
    32 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    12 Years
