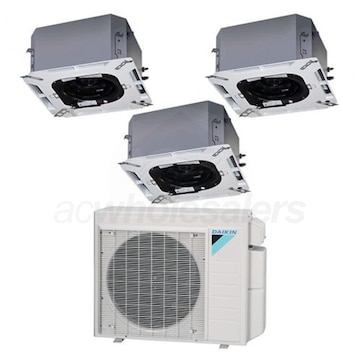

Daikin Ceiling Cassette 3-Zone - 36,000 BTU Outdoor - 9k + 12k + 15k Indoor - 17.7 SEER

Model: 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2 Item Number: 88454
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
PREVIOUS
NEXT
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Enlarge Image
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    283 Pounds Learn More
    283 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Product Line
    MXS Multi Zone
Bundle Includes 4 items
  • product image
    (1) Daikin 36,000 BTU Multi Zone Ductless Heat Pump Condenser (4MXS36NMVJU)
  • product image
    (1) Daikin 12,000 BTU Multi Zone Ceiling Cassette Grille Sold Separately (FFQ12Q2VJU-NG)
  • product image
    (1) Daikin 15,000 BTU Multi Zone Ceiling Cassette Grille Sold Separately (FFQ15Q2VJU-NG)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin 4MXS36 FFQ09Q2 FFQ12Q2 FFQ15Q2

Overview for Daikin 4MXS36NMVJU FFQ09Q2 FFQ12Q2 FFQ15Q2

Daikin's Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two, three or four indoor units to a single outdoor unit, over 1,000 combinations are possible with the choice of wall mount units, slim duct units, ceiling cassette units or a combination. Systems offer energy efficiency levels up to 18.9 SEER and 12.5 HSPF for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split Systems are the smart, reliable solution for your home.
Bundle Includes 4 items
  • product kit image
    Daikin 36,000 BTU Multi Zone Ductless Heat Pump Condenser
    Model: 4MXS36NMVJU
    Item Number: 63139
    Quantity: 1
  • product kit image
    Daikin 12,000 BTU Multi Zone Ceiling Cassette Grille Sold Separately
    Model: FFQ12Q2VJU-NG
    Item Number: 82373
    Quantity: 1
  • product kit image
    Daikin 15,000 BTU Multi Zone Ceiling Cassette Grille Sold Separately
    Model: FFQ15Q2VJU-NG
    Item Number: 82374
    Quantity: 1
  • product kit image
    Daikin 9,000 BTU Multi Zone Ceiling Cassette Grille Sold Separately
    Model: FFQ09Q2VJU-NG
    Item Number: 82156
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
General Information
Type
Ceiling Cassette
Product Line
MXS Multi Zone
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 12 + 15
Performance
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
17.7
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
9.2
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
12.2
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
283 Pounds
Shipping Weight
303 Pounds
General Information
Type
Outdoor Condenser
Product Line
MXS
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
54 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19.8 Amps
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
1/2 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
5/8 Inch
Product Height
29 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
139 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
MXS
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Not Included
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
353 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
38.5 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
11 1/4 Inches
Product Width
22 5/8 Inches
Product Depth
22 5/8 Inches
Product Weight
48 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Ceiling Cassette
Product Line
MXS
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Not Included
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Maximum Air Flow
424 CFM
Minimum Air Flow
283 CFM
Minimum Sound Level
31.5 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
42.5 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
11 1/4 Inches
Product Width
22 5/8 Inches
Product Depth
22 5/8 Inches
Product Weight
48 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Ceiling Cassette
Product Line
MXS
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Not Included
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
318 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
29.5 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
11 1/4 Inches
Product Width
22 5/8 Inches
Product Depth
22 5/8 Inches
Product Weight
48 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
