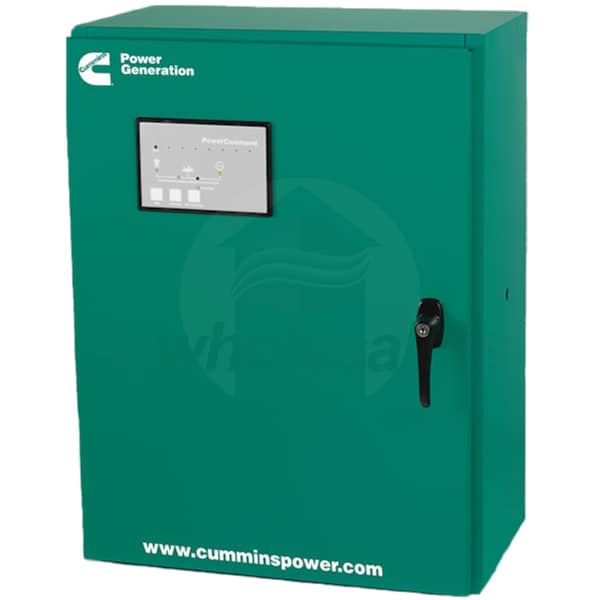

Cummins OTEC600 - 600-Amp PowerCommand® Outdoor Automatic Transfer Switch

Model: A040D005 Item Number: 11933
Cummins Power Generation A040D005
PREVIOUS
NEXT
Cummins Power Generation A040D005
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    225 Pounds
    Consumer Warranty
    1 Year
    Product Length
    59 Inches
Features
View More

Features

Overview for Cummins Power Generation A040D005

  • 600-Amp Outdoor Automatic Transfer Switch
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Intergreal engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual opeation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programble
  • Specifications
    View More

    Specifications

    Overview
    Weight
    225 Pounds
    Consumer Warranty
    1 Year
    Product Length
    59 Inches
    Product Width
    27.5 Inches
    Product Height
    16.5 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    153600 Watts
    Rated Amps
    600 Amps
    Enclosure
    NEMA 3R
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Not Compatible
    ATS Load Shedding
    Not Compatible
    ATS Poles
    2 Poles
    ATS Service Disconnect
    No
    Max Utility Input
    600 Amps
    Max Generator Input
    600 Amps
    Maximum Wattage
    153600 Watts
    UL Listed
    Yes
