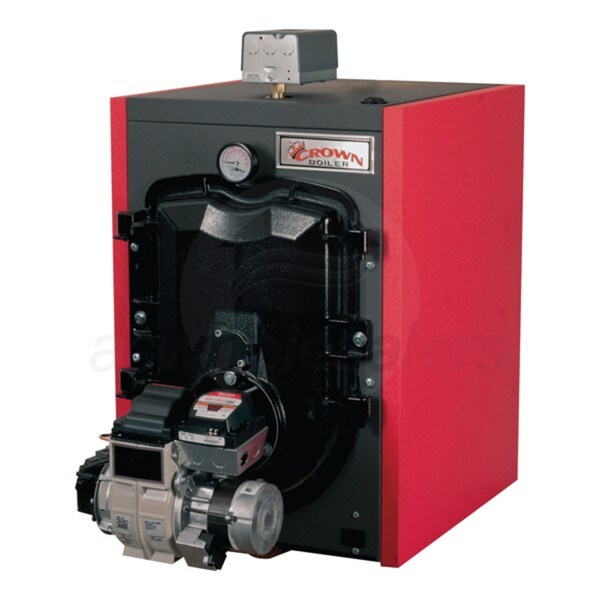

Crown Boiler Co. 86% AFUE 73k BTU Hot Water Oil Boiler Chimney Vent

Model: FWZ060BOLT1SSU Item Number: 24094
Ask a Question
Crown Boiler Co. FWZ060BOLT1SSU
PREVIOUS
NEXT
Crown Boiler Co. FWZ060BOLT1SSU
Enlarge Image
Our Price: $2,891.00
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Only 1 In-Stock
Ships Tuesday, May 11th
Crown Boiler Co. 86% AFUE 73k BTU Hot Water Oil Boiler Chimney Vent
Crown Boiler Co. 86% AFUE 73k BTU Hot Water Oil Boiler Chimney Vent Model: FWZ060BOLT1SSU Item Number: 24094
$2,891.00
Only 1 In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    430 Pounds Learn More
    Product Line
    Freeport
    Medium
    Hot Water
View More
Features
View More

Features

Overview for Crown Boiler Co. FWZ060BOLT1SSU

The Crown Freeport boiler is an oil fired boiler designed from the ground up to maximize reliability across every part of construction. At its core is a three-pass cast iron heat exchanger - the heat from the burned flue gases is circulated three times throughout the heat exchanger, maximizing the heat energy transferred to the water circulating within. A front side swinging burner door provides easy access to all heating surfaces, making routine maintenance an easy task. An included control tops off the feature list of the Freeport, providing thermal purge functionality for increased efficiency.
  • Product Features
  • Fast Heating
  • Cast Iron Heat Exchanger
  • Swing Door with Burner Disconnect plug
  • Hydrolevel 3250
  • Domestic Hot Water Allowed
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    Freeport
    Medium Learn More
    Hot Water
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Oil
    Combustion Type Learn More
    Conventional
    Vent Type Learn More
    Chimney Vent
    DHW Production Learn More
    No
    Modulating/Staging Learn More
    Single Stage
    Mount Type
    Floor
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Burner Model
    Beckett AFG
    Performance
    AFUE Learn More
    86 %
    Input Rate
    0.6 GPH
    DOE Heating Capacity Learn More
    73000 BTU
    Net I=B=R Capacity Learn More
    63000 BTU
    Maximum Operating Pressure
    50 PSI
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Fluid Content
    7.7 Gallons
    Flue Connection Size
    5 Inches
    Supply Connection
    1 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    35 7/8 Inches
    Product Width
    16 1/4 Inches
    Product Depth
    20 3/4 Inches
    Product Weight
    430 Pounds
    Certifications
    Country of Origin
    United States
    AHRI Certified
    Yes
    AHRI Reference Number
    5433306
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    1 Year
    Heat Exchanger Warranty
    20 Years
