Caleffi Z-One™ - Zone Valve Control - Three Zones - Expandable

Model: ZVR103 Item Number: 71576
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review

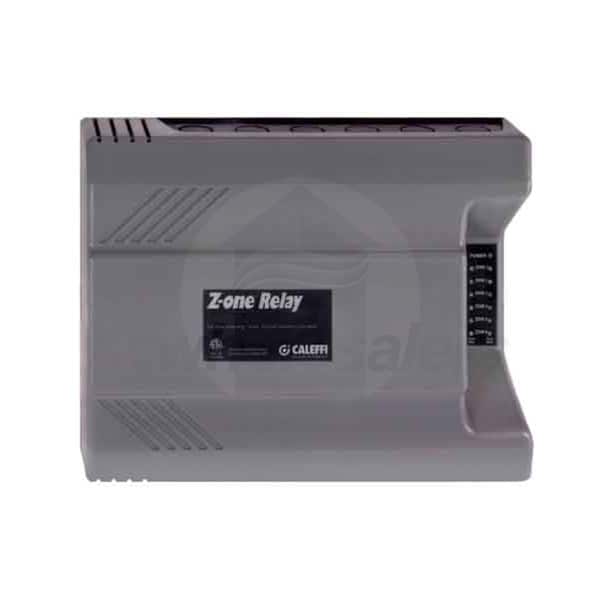

Caleffi ZVR103
PREVIOUS
NEXT
Caleffi ZVR103
Enlarge Image
Our Price: $155.15
synchrony card icon
$26 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory-Direct
Ships in 4-7 Business Days
Caleffi Z-One™ - Zone Valve Control - Three Zones - Expandable
Caleffi Z-One™ - Zone Valve Control - Three Zones - Expandable Model: ZVR103 Item Number: 71576
$155.15
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    2 Pounds Learn More
    2 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
View More
Type
Select Attribute
Maximum Zones
Select Attribute
Features
View More

Features

Overview for Caleffi ZVR103

The Caleffi ZVR103 is a zone valve and boiler operating control operated by low voltage thermostats or controllers. Controlling up to three zone valves, the ZVR103 is a convenient solution for valve control in multi-zone hydronic heating systems. In addition, a system pump and secondary pump is turned on when any zone calls for heat. The ZVR103 can also be used to operate a primary DHW pump.
  • Installer Friendly
  • The Caleffi ZVR103 features ample room for terminations, large screw terminals, an automatic resettable fuse and snap-in transformers to make installation a breeze.
  • Versatile
  • With three selectable 120 VAC auxiliary switches, dedicated pump outputs and unlimited zone expansion, the ZVR103 is an incredibly versatile unit in a small package.
  • Universal Compatibility
  • The ZVR103 features configurable pump logic along with the ability to connect to 2, 3 and 4 wire zone valves and thermostats.
  • Additional Features
  • Primary pump output
  • Three dry contacts for enabling boilers and pumps
  • Selectable priority, pump exercise, post purge zone, remote enable and primary pump status with DIP switches
  • Twelve 1/2" electrical knockouts
  • LED function lights
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    General Information
    Product Line
    Z-One
    Product Category
    Thermostats and Controls
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    3
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Maximum Load
    40 Amps
    Dimensions
    Product Height
    9 1/4 Inches
    Product Width
    11 Inches
    Product Depth
    3 Inches
    Product Weight
    2 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
