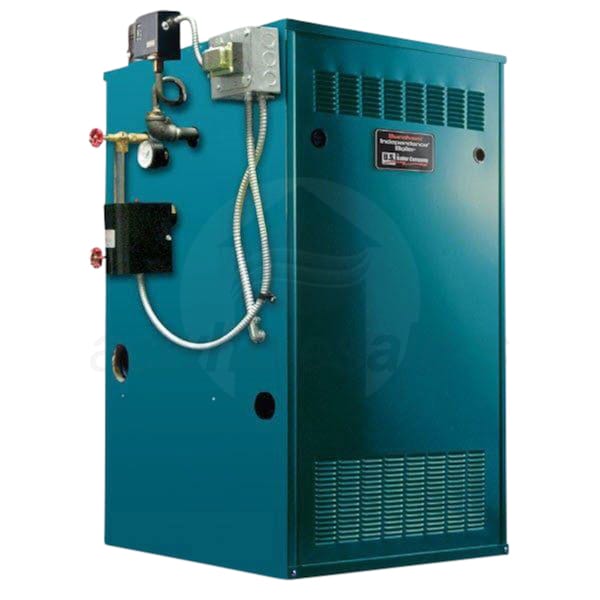

Burnham IN4 - 65K BTU - 82.0% AFUE - Steam Gas Boiler - Chimney Vent - Trim Sold Separately

Model: KIN4LNI-LE2 Item Number: 37667
Burnham KIN4LNI-LE2
PREVIOUS
NEXT
Burnham KIN4LNI-LE2
Enlarge Image
Our Price: $3,223.81
synchrony card icon
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 7-14 Business Days
Burnham IN4 - 65K BTU - 82.0% AFUE - Steam Gas Boiler - Chimney Vent - Trim Sold Separately
Burnham IN4 - 65K BTU - 82.0% AFUE - Steam Gas Boiler - Chimney Vent - Trim Sold Separately Model: KIN4LNI-LE2 Item Number: 37667
$3,223.81
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    420 Pounds Learn More
    420 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham KIN4LNI-LE2

Burnham has had remarkable success achieving a high efficiency for its Independence line of steam boilers. With an AFUE of 83% for a steam boiler, homeowners can be assured that energy costs are as low as possible. Ranging from 62,000 BTU to 385,000 BTU, the Independence line of steam boilers can be used in a wide variety of applications. Using natural or LP gas, a direct vent or natural draft option are both acceptable choices. Cast iron sectional design ensures reliable heat transfer, and an optional water boiler allows for maximum flexibility. Burnham has been at the forefront of boiler design for decades, and the Independence boiler line is no exception to its reputation for quality, safety and efficiency.
  • Burnham KIN4LNI-LE2 Features
  • High Efficiency up to 83% AFUE
  • Natural or LP Gas
  • Direct replacement for thousands of existing boilers
  • Natural draft or power vented
  • Burnham KIN4LNI-LE2 Gas Fired Steam Boiler Additional Features:
  • Cast Iron Sectional Design
  • Optional Water Boiler Option
  • 62,000 to 385,000 BTU size choices
  • Controlled fuel management preserves fuel when burner is not active
  • Product Note
    Boiler trim package must be ordered separately.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    Independence
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Staging
    Mount Type
    Floor
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Includes Pump
    No
    Assembly Type
    Knockdown
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    82 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    105000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    87000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    65000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    5 Inches
    Gas Connection Size
    1/2 Inch
    Supply Connection
    2 Inches
    Return Connection
    2 Inches
    Product Height
    40 Inches
    Product Width
    17 3/4 Inches
    Product Depth
    25 Inches
    Product Weight
    420 Pounds
    Shipping Weight
    420 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
