Buderus 136K 87.0% Hot Water Oil Boiler Chimney Vent For G115WS/5

Model: G115WS/5 Item Number: 37440

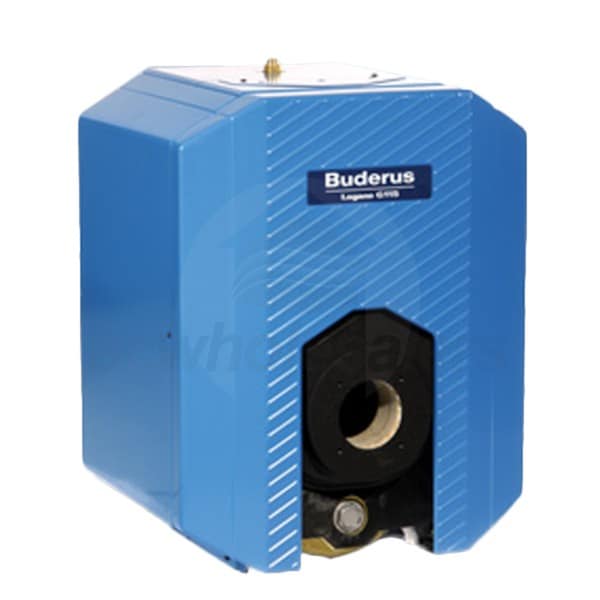

Buderus G115WS/5
PREVIOUS
NEXT
Buderus G115WS/5
Enlarge Image
Our Price: $2,295.00
synchrony card icon
$383 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 3-4 Weeks
Buderus 136K 87.0% Hot Water Oil Boiler Chimney Vent For G115WS/5
Buderus 136K 87.0% Hot Water Oil Boiler Chimney Vent For G115WS/5 Model: G115WS/5 Item Number: 37440
$2,295.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    476 Pounds Learn More
    476 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Buderus G115WS/5

The Buderus G115WS is an advanced oil boiler capable of impressive efficiencies. The stainless steel burner (sold separately) has the capability to pre-mix fuel and oxygenated air before combustion, resulting in a cleanly burning flame that emits remarkably low emissions. The G115WS has the ability to automatically adjust boiler heat to meet temperature demand using an outdoor reset control, both increasing efficiency and dramatically increasing the life of the boiler. An insulating enclosure and patented flexible cast iron rounds of a boiler package that will last you for years to come.
Specifications
View More

Specifications

Overview
Product Category
Boiler
General Information
Product Line
G115WS
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney or Direct Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Staging
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
87 %
Input Rate
1.1 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
136000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
119000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
12.9 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Product Height
30 3/8 Inches
Product Width
23 2/3 Inches
Product Depth
33 2/3 Inches
Product Weight
476 Pounds
Certifications
IBR Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
