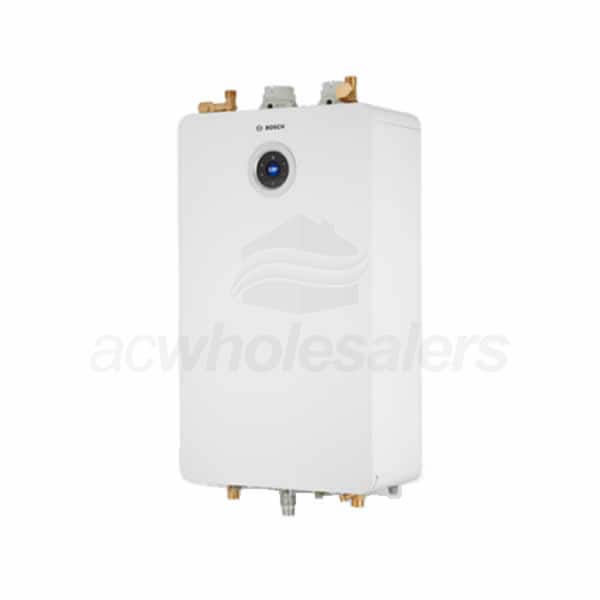

Bosch 160,000 BTU .92 UEF Tankless Water Heater Indoor Direct Vent
Model: T9800 SE 160Item Number: 73648
(1)
Ask a Question
Enlarge Image
View All
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
73.2 Pounds 73.2 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Water Heater - Tankless
UPC
052575110431
View More
Maximum Input Capacity (BTU/Hr)
Includes Pump
Wi-Fi On-Board
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Bosch Thermotechnology T9800 SE 160
Bosch's Greentherm tankless water heaters provide whole home hot water while featuring some the best efficiency ratings on the market. Greentherm water heaters boast an impressive .99 Uniform Energy Factor, which allows them to meet your hot water needs while not draining your wallet. The 9000 series features Bosch's plug n' play design making installation a breeze when paired with its multiple venting options. Optional Wi-Fi connectivity gives you complete control of your hot water at your fingertips.
Optiflow Mangement Technology
This water heater features Bosch's Optiflow system, which uses self-calibrating sensors to automatically configure flue length, gas type, and altitude without a gas analyzer.
Easy to Install
Bosch Greentherm water heaters come with a flexbile and compact plug n' play design, top hyrdaulic connections, and bottom flush ports making them perfect to replace old tank-type heaters.
Built-In Digital Control Panel
The Greentherm tankless hot water heaters have a digital control panel on the front of your unit to adjust temperature and to make sure your system is running properly.
Active Bypass
The Greentherm models all come with an automated, fully modulating bypass for temperature stability to ensure you have a constant accurate temperature.
Convenient Gas Hook Up
The ability to use an existing 1/2" gas line makes the Greentherm an ideal option for storage tank retrofits.
Optional Wi-Fi Control
Control your water heater with the push of a button using Bosch's Wi-Fi app, available in the Apple Store and Google Play.
Product Note
Optional Wi-Fi controls require the Bosch 7736504944 Wi-Fi Module NOT AVAILABLE UNTIL OCT 2018, a working internet connection, and appropriate Bosch app which can be found on the Apple Store and Google Play.
Specifications
Specifications
Overview
Product Category
Water Heater - Tankless
UPC
052575110431
General Information
Type
Tankless Water Heater
Product Line
Greentherm
Product Category
Water Heater - Tankless
Medium MediumMedium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Combustion TypeCondensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category Venting CategoryVenting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Mount Type
Wall
Installation Location
Indoor
Includes Pump
No
Gas Conversion Kit
Included
Performance
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
9000 BTU
Flow Rate at 40F Temperature Rise Flow Rate at 40F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
8.0 GPM
Flow Rate at 50F Temperature Rise Flow Rate at 50F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
6.4 GPM
Flow Rate at 60F Temperature Rise Flow Rate at 60F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
5.4 GPM
Flow Rate at 70F Temperature Rise Flow Rate at 70F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
4.6 GPM
Uniform Energy Factor Uniform Energy FactorUniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.97
Minimum Flow Rate
0.45 GPM
Ultra Low NOx Emissions Ultra Low NOx EmissionsNOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
31 1/2 Inches
Product Width
18 29/48 Inches
Product Depth
9 41/48 Inches
Product Weight
73.2 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
UPC Listed
Yes
AHRI Reference Number
9963061
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
