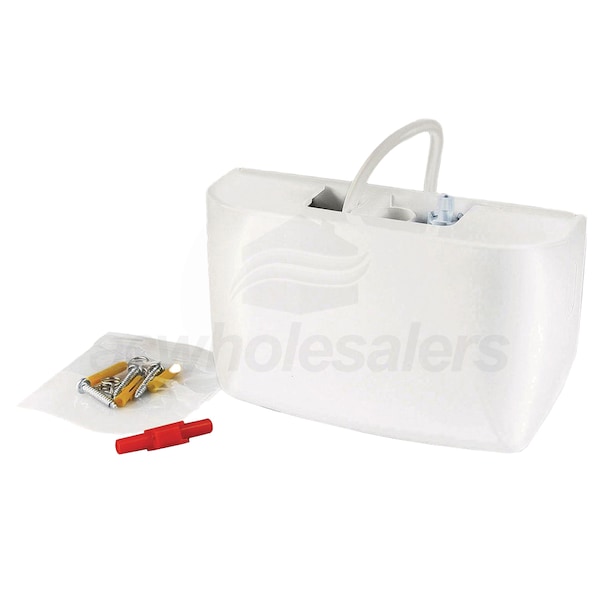

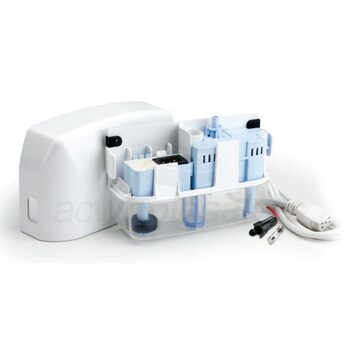

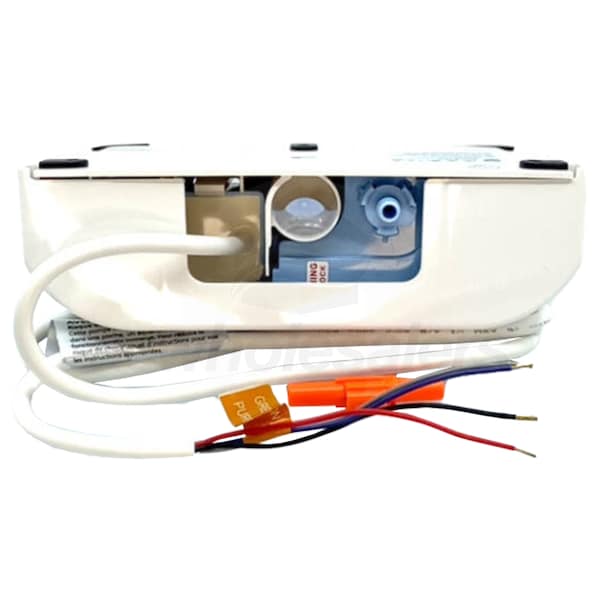

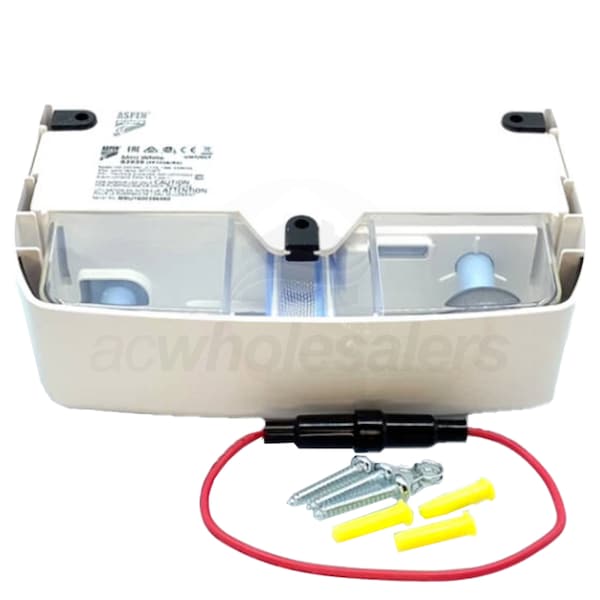

Aspen Mini White - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr

Model: ASP-MW-UNI Item Number: 31127
5.0 out of 5 stars5.0 out of 5 stars
(1)
Write A Review
Aspen ASP-MW-UNI
PREVIOUS
NEXT
Aspen ASP-MW-UNI
Enlarge Image
Aspen ASP-MW-UNI
Aspen ASP-MW-UNI
Watch Video
View All
Our Price: $284.92
synchrony card icon
$48 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
In-Stock
Ships Wednesday, April 17th
Shipping to60601
Aspen Mini White - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Aspen Mini White - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr Model: ASP-MW-UNI Item Number: 31127
$284.92
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
5.0 out of 5 stars5.0 out of 5 stars
(1)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    1.01 Pounds Learn More
    1.01 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Accessories
    UPC
    10021449839393
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Aspen ASP-MW-UNI

A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option. If you're using a high wall system, ducted or free-standing units, you may need an ultra-quick alternative to expel water that has been removed by the cooling system. Aspen's ASP-MW-230 Mini White Condensate Pump is a compact and discrete pump, designed for great performance and easy maintenance. Aspen's ASP-MW-230 is perfect for applications where easy access to the reservoir for future maintenance is key. Plus, this unit is so small and quiet, you'll never even know it's there.
  • Designed for Versatile Installation
  • Aspen Mini Split Condensate Pump Kits like the ASP-MW-UNI are designed to not only be the ultra-quick fix for your air conditioning set up, but also to focus on reliability with an anti-siphon device to keep air from causing priming issues.
  • Performance that Packs a Punch
  • The ASP-MW-UNI has a max flow rate of 3 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
  • Universal Voltage
  • The Aspen ASP-MW-UNI Mini White is compatible with all voltages allowing for an easy integration into your existing components.
  • Product Includes
  • (1) Anti siphon device
  • (1) Drain connector kit
  • (1) Fixing kit
  • (1) Install manual
    • Product Note
    The Aspen ASP-MW-UNI is suitable for use with domestic high wall mounted mini split systems. The ASP-MO-UNI is a compact condensate pump designed for installation below the wall mounted unit, where easy access for maintenance is key. Requires 1/4" ID X 3/8" OD Tubing
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split Accessories
    UPC
    10021449839393
    General Information
    Type
    Condensate Pump
    Product Line
    Mini White
    Product Category
    Mini Split Accessories
    Application
    Surface
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    54000 BTU
    Maximum Head
    32.81 Feet
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    21 dB
    Condensate Removal Rate
    3 GPH
    Electrical Data
    Current Draw
    0.1 Amps
    Dimensions
    Product Height
    4 25/48 Inches
    Product Width
    7 2/12 Inches
    Product Depth
    2 2/12 Inches
    Product Weight
    1.01 Pounds
    Certifications
    Country of Origin
    UK
    CSA Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
