Aspen Maxi Orange - Mini Split Condensate Pump Kit - Universal Voltage - Up to 157,000 BTU/hr

Model: ASP-MAXO-UNI Item Number: 50129
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Aspen ASP-MAXO-UNI
PREVIOUS
NEXT
Aspen ASP-MAXO-UNI
Enlarge Image
Aspen ASP-MAXO-UNI
Aspen ASP-MAXO-UNI
Watch Video
View All
Our Price: $320.37
synchrony card icon
$54 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Product Discontinued
Ships Friday, April 19th
Shipping to60601
Aspen Maxi Orange - Mini Split Condensate Pump Kit - Universal Voltage - Up to 157,000 BTU/hr
Aspen Maxi Orange - Mini Split Condensate Pump Kit - Universal Voltage - Up to 157,000 BTU/hr Model: ASP-MAXO-UNI Item Number: 50129
$320.37
Product Discontinued
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    0.99 Pounds Learn More
    0.99 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Condensate Pump
    Product Line
    Maxi Orange
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Aspen ASP-MAXO-UNI

A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option and more power is needed. If you're using a high wall system, ducted or free-standing units, you may need an alternative way to expel water that has been removed by the cooling system. Aspen's ASP-MAXO-UNI Maxi Orange Condensate Pump is a compact and discrete pump, designed for great performance with its high power motor and submersible secondary reservoir. Aspen's ASP-MAXO-UNI is perfect for large commercial applications.
  • Designed for Versatile Installation
  • Aspen Mini Split Condensate Pump Kits like the ASP-MAXO-UNI are designed to not only that extra boost of performance for your more demanding systems, but also to focus on reliability with an anti-siphon device to keep air from causing priming issues.
  • Performance that Packs a Punch
  • The ASP-MAXO-UNI has a max flow rate of 9 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
  • Plug & Play
  • The ASP-MAXO-UNI is a no hassle, low maintenance unit that's ready to go right out of the box. Just hook up the pump and you're set.
  • Universal Voltage
  • The Aspen ASP-MAXO-UNI Maxi Orange is compatible with all voltages allowing for an easy integration into your existing components.

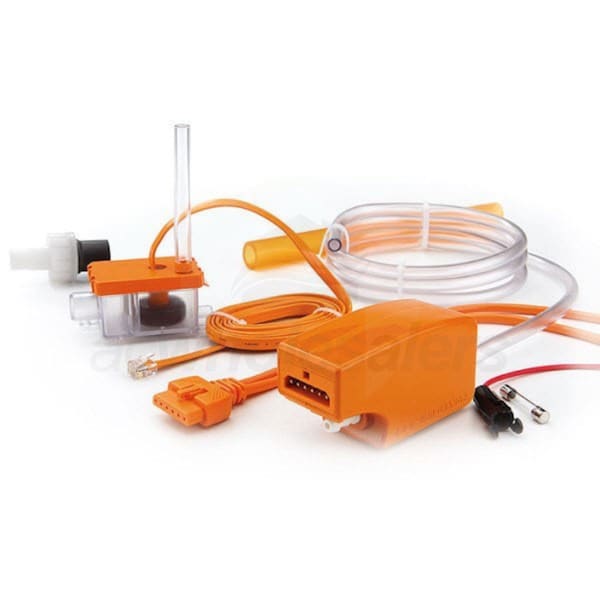

  • Product Includes
  • (1) 1.5m Plug & play power cable
  • (1) Standard Reservoir
  • (1) Optional Submersible Reservoir
  • (1) 150mm Vinyl breather tube 6mm ID
  • (1) Anti siphon device
  • (1) 1.5m Suction Tube 6mm ID
  • (1) 220mm Orange inlet hose 14mm ID
  • (1) Drain connector kit
  • (1) Fixing kit
  • (1) Install manual
    • Product Note
    The Aspen ASP-MAXO-UNI is suitable for use with large commercial high wall split systems, ducted units and floor mounted units. The ASP-MAXO-UNI is designed for above ceiling, inside conduit or behind evaporator installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Condensate Pump
    Product Line
    Maxi Orange
    Application
    Standard
    UPC
    021449839198
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    157000 BTU
    Suction Lift
    6.56 Feet
    Maximum Head
    49.21 Feet
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    35 dB
    Condensate Removal Rate
    9 GPH
    Electrical Data
    Current Draw
    0.1 Amps
    Dimensions
    Product Height
    1 1/3 Inches
    Product Width
    1 13/24 Inches
    Product Depth
    3 7/48 Inches
    Product Weight
    0.99 Pounds
    Certifications
    Country of Origin
    UK
    CSA Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
