Aspen Silent+ Mini Aqua - Mini Split Condensate Pump Kit - 230V - Up to 54,000 BTU/hr

Model: ASP-MA-230SP Item Number: 50131
Aspen ASP-MA-230SP
Aspen ASP-MA-230SP
Enlarge Image
Our Price: $356.58
synchrony card icon
$60 / Month
Suggested monthly payments with 6 month financing.
Ships Friday, June 21st
Shipping to60601
Aspen Silent+ Mini Aqua - Mini Split Condensate Pump Kit - 230V - Up to 54,000 BTU/hr
Aspen Silent+ Mini Aqua - Mini Split Condensate Pump Kit - 230V - Up to 54,000 BTU/hr Model: ASP-MA-230SP Item Number: 50131
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    0.4 Pounds Learn More
    0.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Accessories
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
View More


Overview for Aspen ASP-MA-230SP

A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option. If you're using a high wall system, ducted or free-standing units, you may need an alternative way to expel water that has been removed by the cooling system. Aspen's ASP-MA-230SP Mini Aqua Silent+ Condensate Pump is the slimmest, quietest pump in its class, designed for great performance and simple plug-and-play operation. Aspen's ASP-MA-230SP is perfect for being installed directly in the unit and is so small and quiet, you'll never even know it's there.
  • Silent+ Technology
  • Complete with an acoustic damper and Silent+ technology, the ASP-MA-230SP is a small yet powerful solution for any situation, even in sound-sensitive applications.
  • Designed for Versatile Installation
  • Aspen Mini Split Condensate Pump Kits like the ASP-MA-230SP are designed to not only be the slimmest, most inconspicuous pump available, but also to focus on reliability with an anti-siphon device to keep air from causing priming issues.
  • Performance that Packs a Punch
  • The ASP-MA-230SP has a max flow rate of 3 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
  • Plug & Play
  • The ASP-MA-230SP is a no hassle, low maintenance unit that's ready to go right out of the box. Just hook up the pump and you're set.

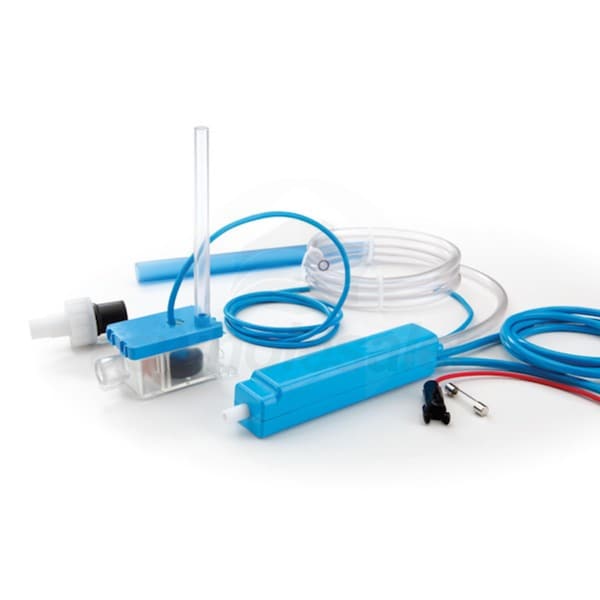

  • Product Includes
  • (1) Acoustic Dampener and 1m Aqua Discharge Tube
  • (1) 1.5m Plug & play power cable
  • (1) Standard Reservoir
  • (1) 150mm Vinyl breather tube 6mm ID
  • (1) Anti siphon device
  • (1) 1.5m Suction Tube 6mm ID
  • (1) 220mm Blue inlet hose 14mm ID
  • (1) Drain connector kit
  • (1) Fixing kit
  • (1) Install manual
  • Product Note
    The Aspen ASP-MA-230SP is suitable for use with ducted, floor standing and high wall mounted mini split systems. The ASP-MA-230SP is ideal for installation directly inside the mini split unit and in applications where silence is key, but can also be installed above the ceiling or inside the conduit.
    View More


    Product Category
    Mini Split Accessories
    General Information
    Condensate Pump
    Product Line
    Silent+ Mini Aqua
    Product Category
    Mini Split Accessories
    Low Profile
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    54000 BTU
    Suction Lift
    6.56 Feet
    Maximum Head
    32.81 Feet
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    19 dB
    Condensate Removal Rate
    3 GPH
    Electrical Data
    Current Draw
    0.1 Amps
    Product Height
    1 1/3 Inches
    Product Width
    1 13/24 Inches
    Product Depth
    3 7/48 Inches
    Product Weight
    0.4 Pounds
    Country of Origin
    CSA Listed
    Warranty Information
    Warranty Learn More
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
