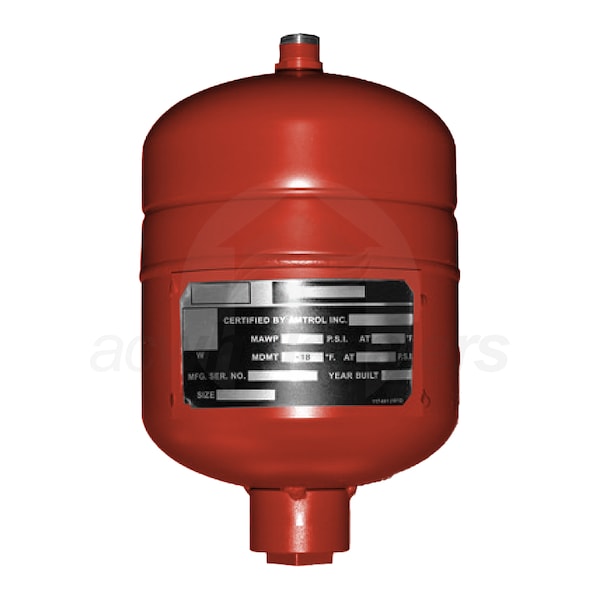

Amtrol 3/4" NPT Connection 0.9 Gallons Max Acceptance

Model: ST-5C-DD Item Number: 81417
Amtrol ST-5C-DD
PREVIOUS
NEXT
Amtrol ST-5C-DD
Amtrol ST-5C-DD
Enlarge Image
Amtrol ST-5C-DD
Amtrol ST-5C-DD
View All
Our Price: $1,164.00
synchrony card icon
$194 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Tuesday, September 26th
Shipping to60601
Amtrol 3/4
Amtrol 3/4" NPT Connection 0.9 Gallons Max Acceptance Model: ST-5C-DD Item Number: 81417
$1,164.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater - Expansion Tanks
    UPC
    642031662583
Storage Volume (Gallons)
Select Attribute
ASME Certified
Learn More
ASME Certified
The largest focus of the American Society of Mechanical Engineers is the Boiler and Pressure Vessel Code (BPVC). The BPVC provides regulations for design, fabrication, installation, inspection, care, and use of boilers, pressure vessels, and nuclear components. This certification is given to show that these standards are met.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Amtrol ST-5C-DD

In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed hot water systems. Today, they are continuing to roll out efficient and reliable tanks to improve your system. The Therm-X-Trol® in-line thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, this expansion tank is able to then return the water to the system when hot water is used. The Therm-X-Trol® also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the Therm-X-Trol® is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-5C-DD is ideal for commercial applications.
  • USA Made, ASME Certified
  • All ST-C thermal expansion tanks are made in US facilities and meet ASME Section VIII, Division 1 standards.
  • Heavy Duty Tank
  • Amtrol's diaphragm design features an ASME approved steel shell for increased strength, while its reduced diameter and weight allow for easy handling and installation.
  • Eliminates Wasted Energy
  • Expanded water collected by the Therm-X-Trol tank returns the water back to your system, preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • Therm-X-Trol thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
  • Antimicrobial Protection
  • The Therm-X-Trol tank features an antimicrobial inner lining that neutralizes bacteria in your water system on contact. This safe, silver-ion technology targets only active microorganisms.
  • Fresh Water Turbulator™
  • The Therm-X-Trol's Fresh Water Turbulator™ agitates the incoming water stream, creating a water-jet scrubbing action that prevents sediment buildup and extends the life of your tank.
  • Product Note
    This product must be shipped freight due to shipping restrictions on pre-charged expansion tanks.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Expansion Tanks
    UPC
    642031662583
    General Information
    Product Line
    Therm-X-Trol
    Product Category
    Water Heater - Expansion Tanks
    Casing
    Steel
    Flange Material
    Stainless Steel
    Connection Type
    NPT
    Color
    Red
    Performance
    Maximum Operating Temperature
    200 F
    Maximum Operating Pressure
    150 PSI
    Dimensions
    Storage Volume
    2 Gallons
    Maximum Acceptance Volume
    0.9 Gallons
    Connection Size
    3/4 Inch
    Product Diameter
    8 Inches
    Product Height
    14 Inches
    Shipping Height
    14 19/48 Inches
    Shipping Width
    9 Inches
    Shipping Length
    9 5/48 Inches
    Certifications
    Country of Origin
    United States
    ASME Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
