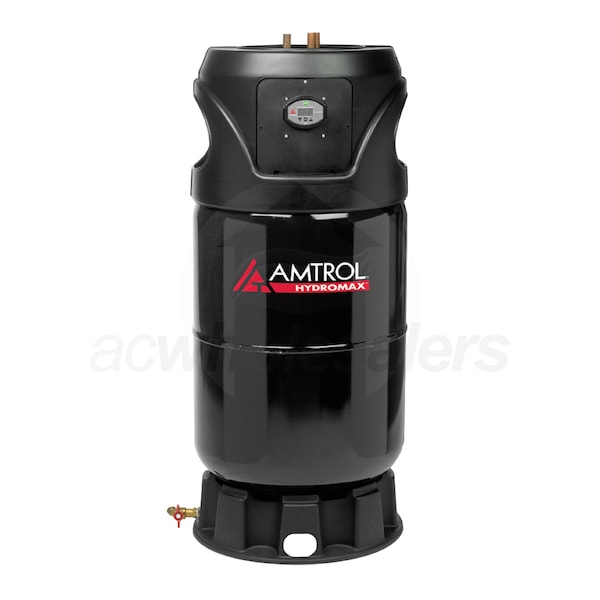

Amtrol Gallon Indirect-Fired Water Heater HDPE 224

Model: HM-41LDW Item Number: 23078
Amtrol HM-41LDW
PREVIOUS
NEXT
Amtrol HM-41LDW
Enlarge Image
Our Price: $2,904.00
synchrony card icon
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-7 Business Days
Amtrol Gallon Indirect-Fired Water Heater HDPE 224
Amtrol Gallon Indirect-Fired Water Heater HDPE 224 Model: HM-41LDW Item Number: 23078
$2,904.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    124 Pounds Learn More
    124 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Heater - Indirect-Fired
    UPC
    642031659859
Tank Size
Select Attribute
Control Type
Select Attribute
Features
View More

Features

Overview for Amtrol HM-41LDW

For almost 70 years Amtrol has continued to roll out top of the line HVAC technology. The HM indirect-fired water heater is the perfect example of the innovation they continue to provide. With advanced control technology paired with undeniable reliability, HM's modern design is unique as well as efficient. By using your home's boiler energy, HM reduces fuel cost while maximizing hot water output. An Ener-G-NET control system puts on-demand fuel savings at your finger tips, and can even diagnose and troubleshoot any problems that may arise. There is no flame, flue, or fuel lines giving you the freedom to install almost anywhere, and a triple shelled tank ensures strength and longevity. A Hi-Delta heat exchanger provides performance from optimal coil spacing, and is removable for easy cleaning and service. Equipped with a relief valve, blowdown tube, heat trap, and Turbulator Dip Tube to reduce sediment build-up, there is no doubt that the HM is "Efficiency at its Best". This water heater is equipped with a double walled coil for regional code compliance.

Product Features

Ener-G-NET Digital Control Instantaneous indirect technology put user modes and installer settings right at your finger tips, while built-in diagnostics allow you to identify problem for quick repair or adjustments.

Bimodal HDPE Poly Bottle
A high density polyethylene (HDPE) bottle is corrosion-proof and provides fresh, clean water, while resisting chlorides, scale, or aggressive water.

Unique Molded Insulation
The HM has reaction injection molded (RIM) insulation which enhances efficiency by eliminating gaps that lead to heat loss.

Deep Drawn Steel Construction
Deep drawn steel has twice the strength of regularly used steel construction while a Tuf-Kote HG finish repels harsh or damp environments.

Bottom Mounted Drain Valve
A pre-installed bottom mounted drain valve completely empties the tank while a sediment trap captures and flushes debris that would otherwise be left in the tank.

Hi-Delta Heat Exchanger
Both energy efficient and scale resistant, the Hi Delta heat exchanger is designed with optimal coil spacing for performance, and is removable for easy cleaning.

Specifications
View More

Specifications

Overview
Product Category
Water Heater - Indirect-Fired
UPC
642031659859
General Information
Type
Indirect Water Heater
Product Line
HydroMax
Product Category
Water Heater - Indirect-Fired
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Control Type
Ener-G-NET
Application
Residential
Connection Type
Sweat
Material
HDPE
Color
Black
Capacity
41 Gallons
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
224 Gallons
Continuous Recovery Rate
242 Gallons
Dimensions
Connection Size
3/4 Inch
Product Diameter
22 Inches
Product Height
55 Inches
Product Weight
124 Pounds
Shipping Height
51 Inches
Shipping Width
22 Inches
Shipping Length
22 Inches
Shipping Weight
124 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
7 Years
