Amtrol 4.4 Gallon Expansion Tank & Fill Valve Combination Kit

Model: FT-110-100 Item Number: 23069
Amtrol FT-110-100
PREVIOUS
NEXT
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Enlarge Image
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
Amtrol FT-110-100
View All
Our Price: $113.00
synchrony card icon
$19 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships in 1-2 Business Days
Amtrol 4.4 Gallon Expansion Tank & Fill Valve Combination Kit
Amtrol 4.4 Gallon Expansion Tank & Fill Valve Combination Kit Model: FT-110-100 Item Number: 23069
$113.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    17 Pounds Learn More
    17 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    642031114600
Bundle Includes 3 items
  • product image

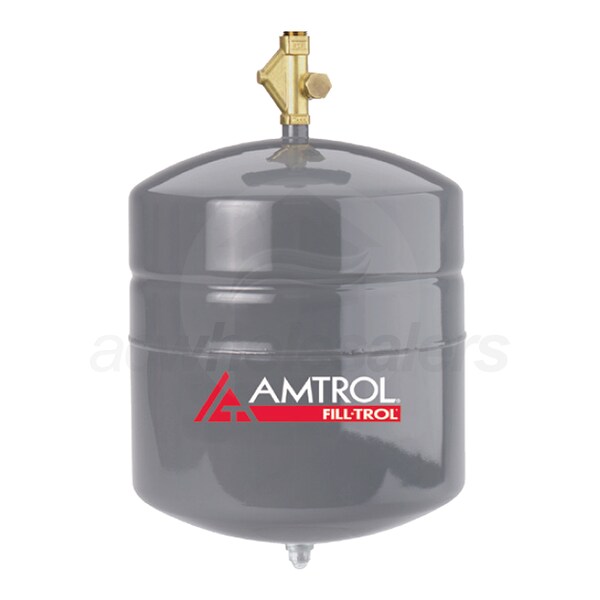

    (1) Amtrol 4.4 Gallon Expansion Tank & Fill Valve 1/2" NPT Connection (FT-110)
  • product image

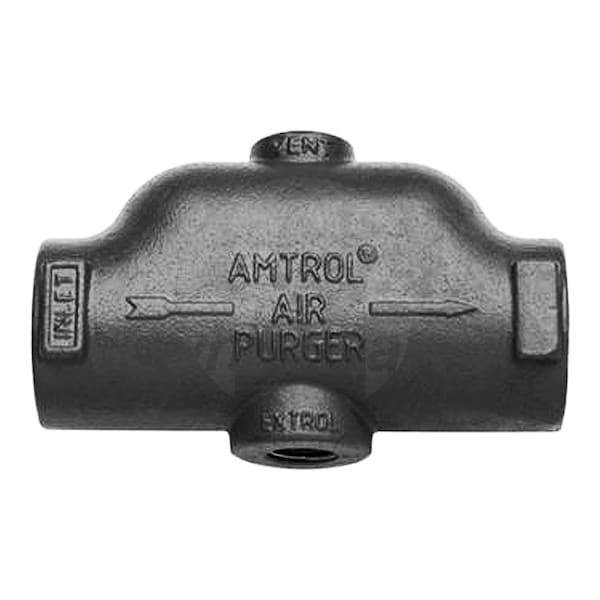

    (1) Amtrol 1" Air Purger for Amtrol 700 Series Automatic Air Vents (443-1)
  • product image

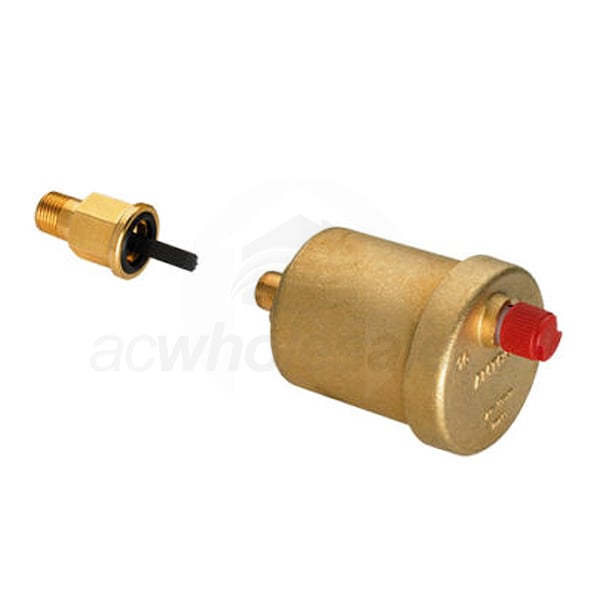

    (1) Amtrol 1/8" MPS Automatic Air Vent (700-30)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Amtrol FT-110-100

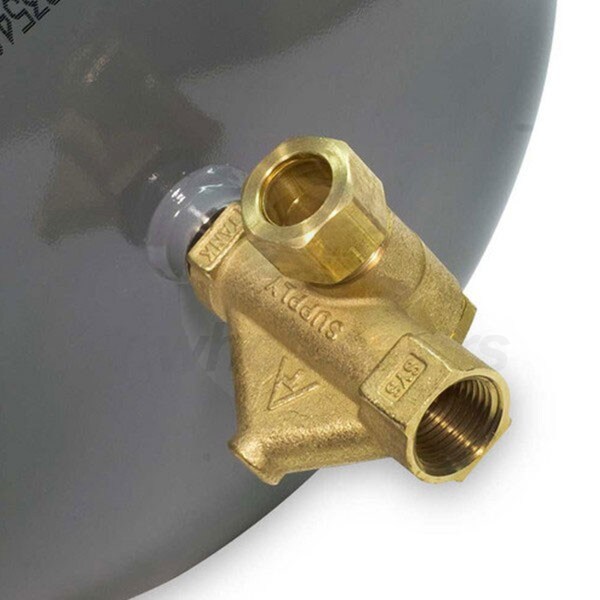

In 1954, Amtrol invented the first expansion tank to control pressure build-up and energy consumption in heating and chilled water systems. More than 50 years later they are still the world?s leading expansion tank manufacturer. The FT expansion tank collects expanded water as system temperatures rise, reducing potentially dangerous pressure build-up. Ideal for residential applications, the FT is equipped with an automatic fill valve, 100 percent tested sealed air cushion, water-tight reservoir, air stem for pre-charge adjustment, and a deep drawn steel tank, all ensuring the reliability of your tank over the long haul. FT-110-100 also includes an air purger that separates water from air, as well as an automatic air vent that eliminates system air. This keeps your whole system running smoother, quieter, and more effectively.
Bundle Includes 3 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Overview
Product Category
Boiler Accessories
UPC
642031114600
General Information
Product Line
Fill-Trol
Product Category
Boiler Accessories
Connection Type
NPT
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
100 PSI
Dimensions
Storage Volume
4 Gallons
Maximum Acceptance Volume
2.5 Gallons
Connection Size
1/2 Inch
Product Diameter
11 Inches
Product Height
16 Inches
Product Weight
17 Pounds
Shipping Width
11 Inches
Shipping Height
23 Inches
Shipping Length
11 Inches
Shipping Weight
23 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Product Line
Fill-Trol
Product Category
Boiler Accessories
Connection Type
NPT
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
100 PSI
Dimensions
Storage Volume
4 Gallons
Maximum Acceptance Volume
2.5 Gallons
Connection Size
1/2 Inch
Product Diameter
11 Inches
Product Height
16 Inches
Product Weight
12 Pounds
Shipping Width
11 Inches
Shipping Height
17 Inches
Shipping Length
11 Inches
Shipping Weight
17 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Boiler Accessories
General Information
Type
Air Purger
Product Category
Boiler Accessories
Connection Type
NPT
Material
Cast Iron
Performance
Maximum Operating Pressure
125 PSI
Dimensions
Connection Size
1 Inch
Product Height
4 Inches
Product Width
2 1/2 Inches
Product Length
6 Inches
Product Weight
4 Pounds
Shipping Weight
4 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
1 Year
Overview
Product Category
Boiler Accessories
General Information
Product Category
Boiler Accessories
Connection Type
MPS
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
150 PSI
Dimensions
Connection Size
1/8 Inch
Product Height
3 3/4 Inches
Product Width
2 Inches
Product Length
2 Inches
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Boiler Accessories
