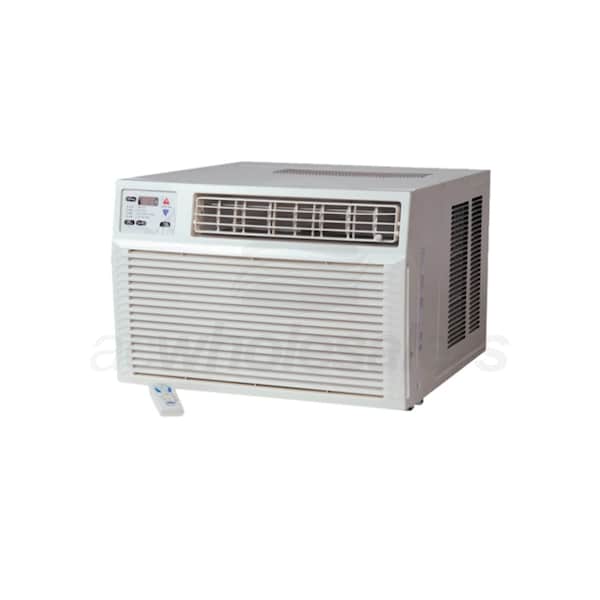

Amana 9,000 BTU Window/Wall Heat Pump with Heat 208/230V

Model: AH093G35AX Item Number: 100206
Amana AH093G35AX
Amana AH093G35AX
Enlarge Image
Our Price: $880.00
synchrony card icon
$147 / Month
Suggested monthly payments with 6 month financing.
Ships Tuesday, July 23rd
Shipping to60601
Amana 9,000 BTU Window/Wall Heat Pump with Heat 208/230V
Amana 9,000 BTU Window/Wall Heat Pump with Heat 208/230V Model: AH093G35AX Item Number: 100206
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    111 Pounds Learn More
    111 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner - Room-Window
Cooling Capacity (BTU/Hr)
Select Attribute
View More


Overview for Amana AH093G35AX

Looking for complete room comfort without breaking the bank on a central air system? The Amana AH09 is a powerful 9,000 BTU through-the-wall heat pump that features high-efficiency operation with an array of convenient features. With both heating and cooling capabilities, the AH09 will keep your room comfortable no matter the season.
  • Ready for Wall or Window Installation
  • The AH09 includes a wall case and window kit for either type of installation. A slide-out chassis allows for simple installation and service accessibility.
  • Heating and Cooling
  • Unlike most through-the-wall air conditioners, the AH09 is a heat pump that provides both heating and cooling operation. The AH09 also features electric heating for lower heat applications.
  • Three Speed Fan
  • Adjust the settings to cater to your needs by choosing between 3 separate fan speeds to find the best air output and noise levels.
  • Wireless Remote Included
  • There's no need to get up and walk across the room to change the temperature or settings. The AH09 comes with a wireless remote to easily switch between modes and adjust the set temperature.
  • Multi-Directional Airflow
  • The AH09 features multi-directional airflow to allow for heating or cooling to any part of the room. The AH09 also features an automatic swing mode so you won't have to adjust the air direction each time.
  • Slide-Out Filter
  • The AH09 includes an easily accessible front slide-out filter that can be cleaned and used throughout the life of the heat pump.
  • Hydrophilic Coated Coils
  • The AH09's evaporator and condenser coils feature a hydrophilic coating for increased airflow, heat exchange and higher efficiency.
  • Specifications
    View More


    Product Category
    Air Conditioner - Room-Window
    General Information
    Through-the-Wall Heat Pump
    Product Line
    Product Category
    Air Conditioner - Room-Window
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    Remote Control
    Blower Motor Type
    Electric Heat
    Electronic Control Panel
    Installation Type
    Cooling Capacity
    8700 BTU
    Heating Capacity
    7200 BTU
    Electric Heat Capacity
    3.6 kW
    Moisture Removal
    2.2 Pints/Hour
    EER Learn More
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    Cooling Power Input
    910 Watts
    Heating Power Input
    810 Watts
    Electrical Data
    Plug Type
    NEMA 6-20P
    208/230 Volts
    60 Hz
    Current Draw
    4.2 Amps
    Maximum Load
    16 Amps
    Product Height
    15 3/8 Inches
    Product Width
    22 5/8 Inches
    Product Depth
    26 3/4 Inches
    Product Weight
    111 Pounds
    Shipping Weight
    111 Pounds
    Power Cord Length
    4 Feet
    UL Listed
    Warranty Information
    Unit Replacement Warranty
    1 Year
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
