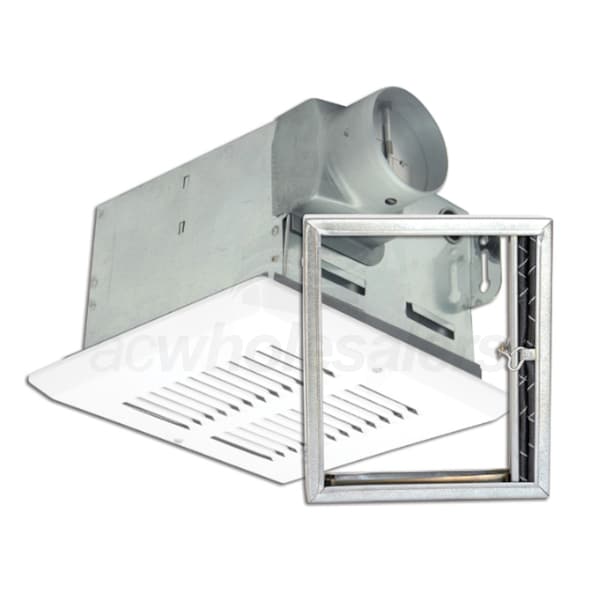

Air King 50 CFM 3" Fire Rated Bathroom Exhaust Fan
Model: FRAS50Item Number: 80014
Ask a Question
Enlarge Image
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Product Category
Fans
UPC
083162253125
View More
Air Flow (CFM)
+Share This Product
Features
Features
Overview for Air King FRAS50
For over forty years and counting, Air King continues to demonstrate their reputation for making high quality ventilation products. Air King is a cost effective air exchanger that is designed to bring in fresh air, remove humidity, and maintain a set temperature. It has internal sensors provide limits on air intake that is too humid, hot, cold, or dry. Simply by dialing in the desired air flow, temperature, and humidity, and will start bringing in the precise amount of fresh air you need. The Air King comes fully assembled and its compact design allows for simple installation. With an air flow range from 40 to 120 CFM and a virtually limitless duct length range, is a powerful, energy-efficient fresh air solution for families and home builders alike.
Fire Rated System
The FRAS50 exhaust fan is UL rated to be installed into wood frame construction and are designed to automatically shut off and seal the duct if high temperatures are detected.
Back Draft Damper
A metallic, fire rated back draft damper comes included with the FRAS50 to eliminate back drafts and keep volume levels to a minimum.
Low-Profile Grille
The low-profile grille featured on the FRAS50 sits nearly flush with the ceiling, preventing the fan from detracting from your bathroom aesthetic while still adhering to fire rating regulations.
Simple Installation
Adjustable mounting brackets included with the FRAK80 allow for quick and easy installation.
Warranty
Every Air King product is warranted against defects in workmanship and materials for 1 year from the date of the purchase. During the warranty period, Air King will repair or replace any defective parts, or replace the entire product.
Specifications
Specifications
Overview
Product Category
Fans
UPC
083162253125
General Information
Type
Bathroom Fan
Product Category
Fans
Mount Type
Ceiling
Color
White
Housing Material
Steel
Includes Light
No
Performance
Maximum Air Flow
50 CFM
Maximum Sound Level Maximum Sound LevelThe sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
3 Sones
RPM
2125 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
48 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.9 Amps
Dimensions
Duct Connection
3 Inches
Product Height
5 7/8 Inches
Product Width
7 7/8 Inches
Product Length
7 3/8 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
