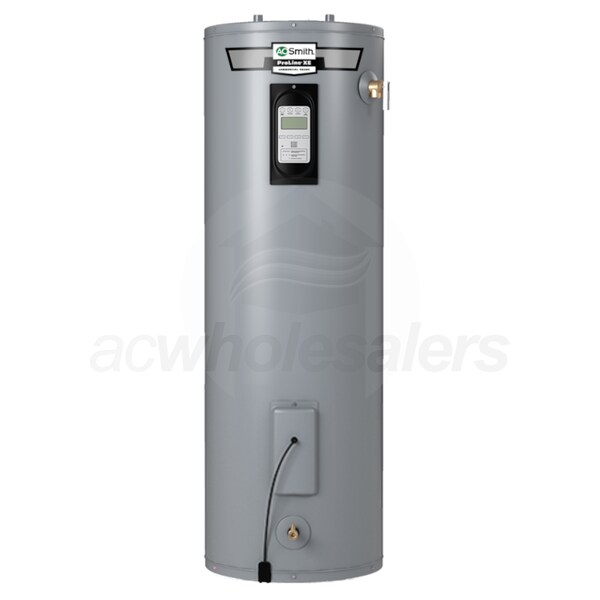

A.O. Smith ProLine® XE - 240V Single Phase Water Heater - 40 Gal. Storage - 59 Gal. First Hour Delivery - 0.93 UEF - Leak Detection - Tall

Model: PXGT-40 Item Number: 117120
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
A.O. Smith Tank PXGT-40
PREVIOUS
NEXT
A.O. Smith Tank PXGT-40
Enlarge Image
Our Price: $1,096.97
synchrony card icon
$183 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Shipping Not Available
A.O. Smith ProLine® XE - 240V Single Phase Water Heater - 40 Gal. Storage - 59 Gal. First Hour Delivery - 0.93 UEF - Leak Detection - Tall
A.O. Smith ProLine® XE - 240V Single Phase Water Heater - 40 Gal. Storage - 59 Gal. First Hour Delivery - 0.93 UEF - Leak Detection - Tall Model: PXGT-40 Item Number: 117120
$1,096.97
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater - Tank
    UPC
    671657250652
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for A.O. Smith Tank PXGT-40

A.O. Smith has led the way in innovative hot water solutions for nearly 80 years. With unmatched quality and diversity, A.O. Smith can provide hot water anywhere it's needed. The A.O. Smith ProLine® XE is a commercial-grade residential electric water heater featuring an electronic display and leak detection. The simple-to-use touchscreen display has multiple operating modes for improved efficiency and provides diagnostic feedback for your convenience. The enhanced heating elements in the ProLine® XE feature dual 4,500 watt elements, allowing for faster recovery. The ProLine® XE is equipped with the DynaClean™ system, reducing sediment buildup. Featuring a CoreGard™ anode rod with a stainless steel core, the A.O. Smith ProLine® XE series has an extended life due to superior tank protection.
  • Leak Detection Sensor
  • With built-in leak detection, the A.O. Smith ProLine® XE sounds an audible alarm when water is detected.
  • Electronic Interface
  • The touchscreen displays multiple operating modes like energy saver and vacation modes, that provide increased efficiency. The interface also provides diagnostic feedback and dry fire protection.
  • Heating Elements
  • With dual 4,500 watt enhanced heating elements, the water heater delivers reliable operation and fast recovery times.
  • Brass Drain Valve
  • The solid brass, ball type, tamper resistant drain valve on the A.O. Smith ProLine® XE provides enhanced flow. Use with a standard female hose fitting for simple draining and maintenance.
  • Glass Coating
  • Featuring Blue Diamond® glass coating, the ProLine® XE has better corrosion resistance compared to standard glass lining.
  • Warranty
  • 10 Year Parts
  • 10 Year Tank
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Tank
    UPC
    671657250652
    General Information
    Type
    Electric Water Heater
    Product Line
    ProLine XE
    Product Category
    Water Heater - Tank
    Delivery Options
    Pickup Only
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Storage Type
    Tank
    Application
    Residential
    Mount Type
    Floor
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    59 Gallons
    Uniform Energy Factor Learn More
    Uniform Energy Factor
    Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
    0.93
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Storage Volume
    40 Gallons
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Product Height
    60 1/4 Inches
    Product Width
    20 Inches
    Product Depth
    20 Inches
    Shipping Weight
    118 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    206445813
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Years
    Vessel Warranty
    10 Years
