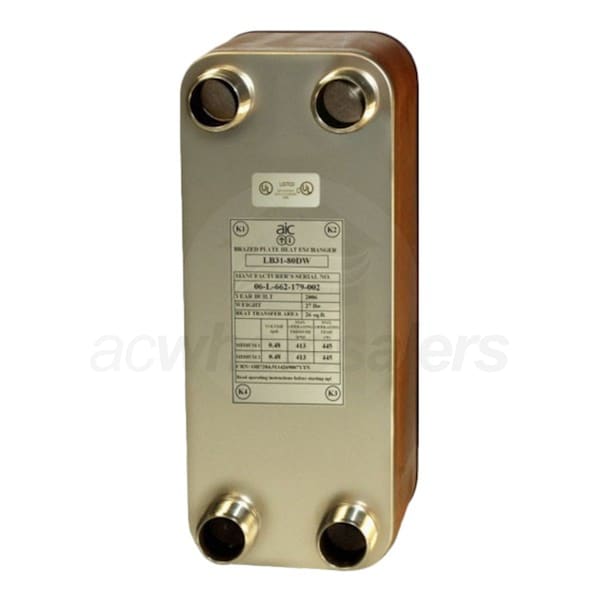

AIC Alliance LB31-030XJ Brazed Flat Plate to Plate Heat Exchanger- Single Wall-Up to 100,000BTU
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Product Category
Boiler Accessories
View More
+Share This Product
Features
Features
Overview for AIC Alliance LB31-30XJ

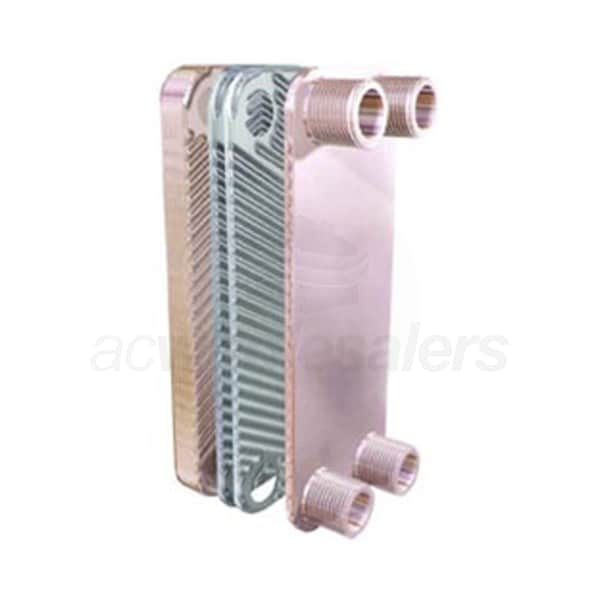

Brazed Flat Plate to Plate Heat Exchanger consist of stainless steel plate packs, which have embossed chevron patterns. The plates are turned 180 degrees to each other, causing the plate ridges to intersect and creating a lattice of intersecting channels. Fluids can flow in counter-current and co-current way. The entire construction is nondismountable and scaled together by means of brazing in a special vacuum furnace.
Brazed Flat Plate to Plate Heat Exchanger Features
High heat transfer coefficient
Small unit size with high heat transfer capacity
High resistance to pressure and temperature fluctuations
Cost efficiency
Plates and connections: stainless steel
Brazing: copper and nickel
Easy installation
Factory Tested
Specifications
Specifications
Overview
Product Category
Boiler Accessories
General Information
Product Category
Boiler Accessories
Dimensions
Storage Volume
0.49 Gallons
Product Height
12 Inches
Product Width
3 5/24 Inches
Product Length
5 Inches
Shipping Weight
12.5 Pounds
