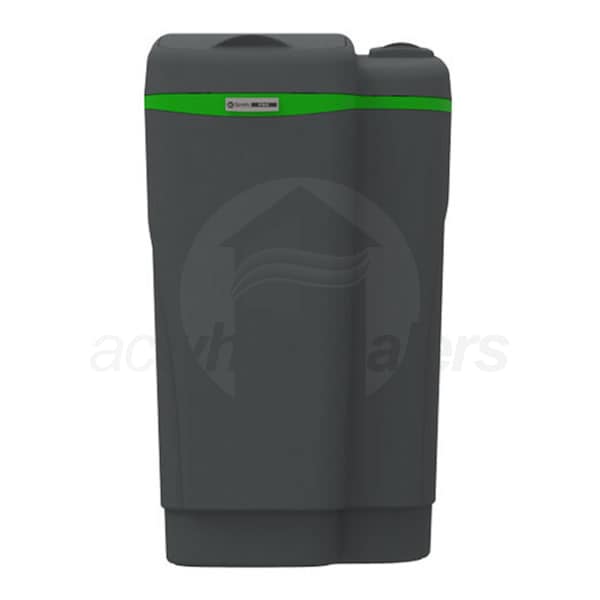

A.O. Smith - AOW-S500 - Salt Based Water Softener - 49,800 Grain Capacity

Model: 100037597 Item Number: 97744
A.O. Smith Water Filtration 100037597
A.O. Smith Water Filtration 100037597
Enlarge Image
Our Price: $810.00
synchrony card icon
$135 / Month
Suggested monthly payments with 6 month financing.
Only 2 In-Stock
Ships Friday, May 24th
Shipping to60601
A.O. Smith - AOW-S500 - Salt Based Water Softener - 49,800 Grain Capacity
A.O. Smith - AOW-S500 - Salt Based Water Softener - 49,800 Grain Capacity Model: 100037597 Item Number: 97744
Only 2 In-Stock
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    145 Pounds Learn More
    145 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Filtration
Grain Capacity (Grains)
Select Attribute
View More


Overview for A.O. Smith Water Filtration 100037597

Protect your appliances and eliminate hard water spots and stains with an A.O. Smith water softener. Soften the water throughout your home by reducing excessive calcium and magnesium. Solve the hard water problems of hard and damaging buildup on faucets, appliances, water heaters, shower heads and walls. Spend less time scrubbing hard water spots on glasses and dishes, and save money on both utility bills and cleaning supplies.
  • Designed, Engineered, and Built to Last
  • Patented, slim, single-unit design with built-in bypass valve will serve you for years to come. The Bypass Valve can isolate the softener should it malfunction or leak. It can also permit the use of untreated water for watering plants.
  • Fast & Quiet Regeneration
  • Recharges softening media quickly so you don't experience downtime. After producing 21 gallons, total length of regeneration is 27.5 minutes.
  • Power Loss Protection
  • Backup battery saves your settings in case of power loss.
  • Touchscreen Controller
  • Modify settings with ease on 2.7" monochrome touchscreen controller. Never run out of soft water with fast and quiet regeneration.
  • Self-Cleaning Pre-Filter
  • You'll never have to fuss with a filter replacement with the self-cleaning pre-filter on board.
  • Salt and Capacity Range
  • Minimum Capacity/Salt : 8,650 grains/1.66 lbs
  • Middle Capacity/Salt : 33,410 grains/8 lbs
  • Maximum Capacity/Salt : 49,800 grains/15 lbs
  • Warranty
  • One Year Complete Unit Warranty
  • Three Year Electronics Warranty
  • Six Year Valve Warranty
  • Twelve Year Media Tank and Cabinet
  • Specifications
    View More


    Product Category
    Water Filtration
    General Information
    Water Softener
    Product Line
    Product Category
    Water Filtration
    Battery System
    Battery Backup
    Storage Type
    200 lbs.
    Control Type
    Monochrome Touchscreen
    Mount Type
    Installation Location
    Supply Connection Type
    1" Male NPT
    Return Connection Type
    1" Male NPT
    Potable Water Usage
    Maximum Water Temperature
    120 F
    Minimum Water Temperature
    40 F
    Minimum Operating Temperature
    40 F
    Maximum Operating Temperature
    120 F
    Minimum Operating Pressure
    20 PSI
    Maximum Operating Pressure
    120 PSI
    Maximum Grain Capacity
    49800 Grains
    Salt Storage Capacity
    200 Gallons
    Maximum Hardness Removal
    110 gpg
    Total Length of Regeneration
    42.5 Minutes
    Output Between Refills
    30 Gallons
    Maximum Iron Reduction
    10 ppm
    Maximum Chlorine
    0 ppm
    Minimum pH
    Service Flow Rate @ 15 PSI
    7 GPM
    Electrical Data
    Voltage at 60 Hz
    115 Volts
    Product Height
    39 1/2 Inches
    Product Width
    22 19/24 Inches
    Product Depth
    18 5/48 Inches
    Product Weight
    145 Pounds
    ASNI Listed
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Warranty Information
    Warranty Learn More
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
