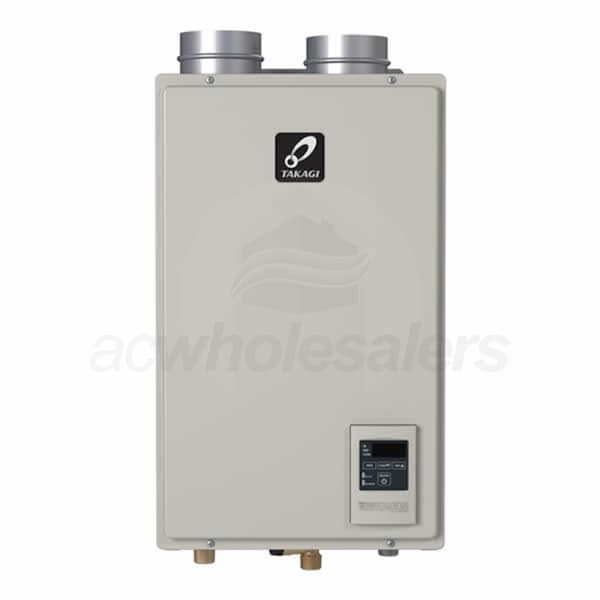

Takagi 120,000 BTU Tankless Water Heater Natural Gas Direct Vent

Name: Takagi 120,000 BTU Tankless Water Heater Natural Gas Direct Vent
Brand: Takagi
SKU: 70554
Price: 845.00 USD
Availability: InStock
Rating: 4.00 (1 reviews)

Model: T-H3M-DV-NG Item Number: 70554

(1)

Ask a Question

Enlarge Image

Add to Cart Form

Our Price: $845.00

$141 / Month

Suggested monthly payments with 6 month financing.

Click for important monthly payment and offer information.

Only 2 In-Stock

Ships Tuesday, March 28th

Shipping to60601

Takagi 120,000 BTU Tankless Water Heater Natural Gas Direct Vent Model: T-H3M-DV-NG Item Number: 70554

$845.00

Only 2 In-Stock

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

44 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Water Heater - Tankless

UPC

671657177317

Fuel Type

To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.

Installation Location

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Takagi T-H3M-DV-NG

Takagi has been delivering innovative residential and commercial hot water solutions for over 60 years. Their line of tankless water heaters are unmatched in quality and diversity, providing the perfect hot water solution for any situation. The T-H3M-DV-N is part of Takagi's high efficiency condensing line of water heaters. Condensing technology paired with Ultra-Low NOx emissions standard gives the T-H3M-DV-N a top of the line 0.93 Uniform Energy Factor, making this one of the most efficient heaters on the market. Operating on a .5" gas line, the T-H3M line is perfect for replacing existing storage tanks without changing the gas line.

Half Inch Gas Line Connection

T-H3M models come with a .5" gas line connection, making them perfect for replacing existing storage tanks without altering existing gas lines.

High Efficiency Condensing Technology

The T-H3M-DV-N features the latest in water heating condensing technology. It delivers hot water at among the highest efficiency available, keeping dollars in your pocket.

Ultra-Low NOx Emissions

The T-H3M-DV-N is designed to qualify for the most stringent Low NOx standards. This includes SCAQMD standards and other air quality management districts meant to limit pollution in the southwest United States.

Dual Heat Exchangers

The primary exchanger is made of commercial-grade HRS35 copper, designed to be more resilient against corrosion. The backup is made of stainless steel, also designed to protect against corrosion.

Multiple Safety Features

H3M models come with a long list of safety features standard. These include: an air-fuel ration sensor, exhaust and water temperature safety controls, an overheat cut-off fuse, and an internal freeze protection system.

Installation and Control Options

All H3M-DV come with a wall mount temperature remote control and advanced diagnostics to simplify troubleshooting.

Specifications

Overview

Product Category

Water Heater - Tankless

UPC

671657177317

General Information

Type

Tankless Water Heater

Product Category

Water Heater - Tankless

Medium

Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.

Hot Water

Heat Exchanger Material

Copper/Stainless

Fuel Type

To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.

Natural Gas

Combustion Type

Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.

Condensing

Vent Type

Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.

Direct Vent

Venting Category

Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel

Storage Type

Tankless

Mount Type

Wall

Installation Location

Indoor

Maximum Altitude

10100 Feet

Includes Pump

Gas Conversion Kit

Not Available

Performance

Maximum Input Capacity

The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.

120000 BTU

Minimum Input Capacity

15000 BTU

Flow Rate at 40F Temperature Rise

Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.

5.4 GPM

Flow Rate at 50F Temperature Rise

Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.

4.4 GPM

Flow Rate at 60F Temperature Rise

Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.

3.8 GPM

Flow Rate at 70F Temperature Rise

Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.

3.2 GPM

Uniform Energy Factor

Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.

0.90

Minimum Flow Rate

0.5 GPM

Flow Rate at 77F Temperature Rise

2.8 GPM

Ultra Low NOx Emissions

NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.

Yes

Electrical Data

Voltage

120 Volts

Phase

Frequency

60 Hz

Dimensions

Primary Vent Pipe Diameter

4 Inches

Gas Connection Size

1/2 Inch

Cold Water Inlet

3/4 Inch

Hot Water Outlet

3/4 Inch

Product Height

22 7/8 Inches

Product Width

13 7/8 Inches

Product Depth

10 13/16 Inches

Product Weight

44 Pounds

Certifications

Energy Star Listed

Yes

CSA Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

7067087

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

5 Years

Heat Exchanger Warranty

15 Years

Reviews

(1)

Reviews

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals

Takagi T-H3M Installation Manual

Takagi T-H3M Submittal
