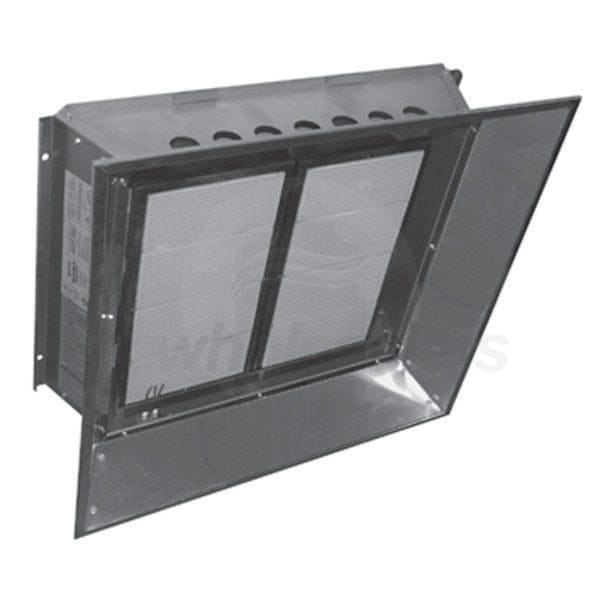

Modine's MHR100 is a cost efficient way to provide high intensity infrared heat to any garage or workplace. Able to recover from cold outdoor air drafts almost instantly, the MHR100 is well suited for workshops with outdoor workspaces. No air mover is required because infrared heat is used, which makes operation whisper quiet. Because the MHR100 heats objects instead of the air surrounding them, it is an excellent choice for spot heating, even in drafty spaces or large warehouses. Combined with its versatility, these features make the MHR100 a well rounded, efficient infrared unit heater capable of heating nearly any work environment.
Product Features
Grooved Ceramic Heating Tiles
High temperature cordierite-based grooved heating tiles form the heating element of the MHR100. These specially designed heating tiles are capable of withstanding extreme temperatures to provide maximum heat transfer while maintaining clean and efficient operation.
Fast Temperature Recovery
The MHR100 heats surfaces instead of the air surrounding them, which allows for incredibly fast temperature recovery. Patrons in high traffic commercial locations will feel warmth the instant they step into the heated area.
Whisper Quiet Operation
The MHR100 does not use any forced air mechanism for air movement which allows for almost completely silent operation. This is a fantastic benefit for commercial locations where noise could distract from work being done.
Polished Aluminum Reflectors
The MHR100 comes equipped with polished aluminum reflectors, effective at directing nearly all heat generated by the infrared heater to the desired heating area. This provides even, comfortable heat transfer over a wide area.
Aluminized Steel Frame
The aluminized steel frame used with the infrared unit heater lends steadfast durability to its operation. This adds to the longevity of the heater and also allows for a wide variety of hanging configurations.
Product Note
This MHR high intensity infrared heater is also available in the following pilot light configurations:
- 24V Direct Spark Ignition
- Two Stage 24V Ignition
- Millivolt Standing Pilot Ignition
For ordering information, call our sales department at (866) 554-HEAT (4328).
*Disclaimer* If customer suspects freight damage upon inspecting the unit at delivery. The customer should notate damage notes on the delivery slip and refuse delivery. The unit will be sent back to Modine and a new unit will be sent to customer free of charge to customer. If customer accepts the delivery of the unit and realizes after the delivery that the unit is in fact damaged. They will have to work with PED to submit a freight claim process. Please work with PED on this case-situation, so we can figure out how to rectify the situation.
