Mitsubishi - 18k BTU - M-Series Multi-Position Air Handler - For Multi or Single-Zone

Model: SVZ-KP18NA Item Number: 96623

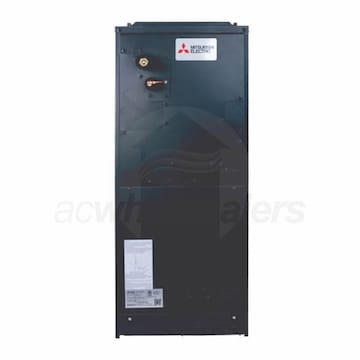

Mitsubishi SVZ-KP18NA
PREVIOUS
NEXT
Mitsubishi SVZ-KP18NA
Enlarge Image
Mitsubishi SVZ-KP18NA
Mitsubishi SVZ-KP18NA
Watch Video
View All
Our Price: $1,769.25
synchrony card icon
$295 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 16-20 Weeks
Mitsubishi - 18k BTU - M-Series Multi-Position Air Handler - For Multi or Single-Zone
Mitsubishi - 18k BTU - M-Series Multi-Position Air Handler - For Multi or Single-Zone Model: SVZ-KP18NA Item Number: 96623
$1,769.25
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    93 Pounds Learn More
    93 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi SVZ-KP18NA

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SVZ-KP18NA is a heat pump air handler unit designed to bring high-efficiency temperature control to larger zones. This unit features a highly efficient, completely enclosed EC motor and a positive pressure cabinet with air leakage of less than 2.0%. Its unique blow through design allows for simple coil cleaning when the blower is removed. Pair the SVZ-KP18NA with a Mitsubishi outdoor condenser for efficient and effective home comfort for years to come.
  • Energy Efficient Circulation
  • The SVZ-KP air handler includes an ECM blower motor to provide more efficient and more intelligent airflow for your home.
  • Airtight
  • The SVZ-KP air handler features a positive pressure cabinet with less than 2.0% air leakage, allowing your comfort system to produce results at its full potential.
  • Simple Maintenance
  • With a removable blower, the air handler can be easily cleaned and maintained. The air handler also includes a washable filter to ensure the air in your home is as fresh as can be.
  • Flexible Venting
  • With the ability to be installed vertically or horizontally, the SVZ-KP air handler can be easily adapted to fit in any duct system.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Ducted Vertical Air Handler
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Maximum Air Flow
    675 CFM
    Minimum Air Flow
    471 CFM
    Minimum Sound Level
    33 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    41 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    39 13/16 Inches
    Product Width
    17 Inches
    Product Depth
    21 5/8 Inches
    Product Weight
    93 Pounds
    Shipping Weight
    106 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
