Mitsubishi 12,000 BTU 22.0 SEER Ductless Ceiling Cassette Heat Pump

Model: SL-KF12NA.TH Item Number: 96633
Ask a Question
Mitsubishi SL-KF12NA.TH
PREVIOUS
NEXT
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Enlarge Image
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
Mitsubishi SL-KF12NA.TH
View All
Our Price: $2,448.75
synchrony card icon
$409 / Month
Suggested monthly payments with 6 month financing.
Ships in 3-4 Weeks

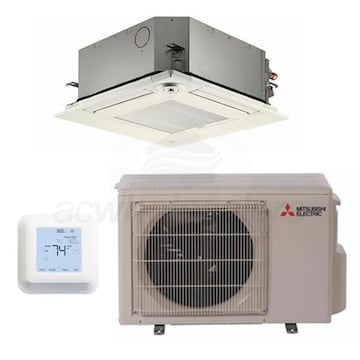

Mitsubishi 12,000 BTU 22.0 SEER Ductless Ceiling Cassette Heat Pump
Mitsubishi 12,000 BTU 22.0 SEER Ductless Ceiling Cassette Heat Pump Model: SL-KF12NA.TH Item Number: 96633
$2,448.75
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    112 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    M-Series
View More
Bundle Includes 4 items
  • product image
    (1) Mitsubishi - 12k BTU - M-Series SUZ Outdoor Condenser - Single Zone Only (SUZ-KA12NA2.MX)
  • product image
    (1) Mitsubishi - 12k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF12NA.TH-NG)
  • product image
    (1) Mitsubishi Wireless Programmable RedLINK Thermostat & Receiver Kit (MHK2)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi SL-KF12NA.TH

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SL-KF12NA is a packaged single zone heat pump mini split system designed to bring discreet heating and cooling to any room in your home. Featuring Mitsubishi's 3D i-see Sensor,™ the indoor cassette unit thermally scans for warm and cold spots so conditioned air can be directed effectively. The outdoor condenser uses some of the most advanced technology available to modulate temperature without energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any application.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 4 items
  • product kit image
    Mitsubishi - 12k BTU - M-Series SUZ Outdoor Condenser - Single Zone Only
    Model: SUZ-KA12NA2.MX
    Item Number: 96253
    Quantity: 1
  • product kit image
    Mitsubishi - 12k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately
    Model: SLZ-KF12NA.TH-NG
    Item Number: 96239
    Quantity: 1
  • product kit image
    Mitsubishi Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Models
    Model: SLP-18EAFU
    Item Number: 96243
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
SUZ-KA12NA2.MX Specifications
SLZ-KF12NA.TH-NG Specifications
MHK2 Specifications
SLP-18EAFU Specifications
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
12000 BTU
SEER Learn More
22.0
EER Learn More
13.3
HSPF Learn More
11.4
Cooling Power Input
900 Watts
Heating Power Input
1310 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
112 Pounds
Shipping Weight
116 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202392022
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Minimum Sound Level
49 dB
Maximum Sound Level Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
16 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
81 Pounds
Shipping Weight
88 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
335 CFM
Minimum Air Flow
207 CFM
Minimum Sound Level
34 dB
Maximum Sound Level Learn More
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 31/48 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Product Line
RedLINK
Programmable
Yes
Power Source
AA Batteries
Interface
Touchscreen
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Dimensions
Product Height
4 1/12 Inches
Product Width
4 1/12 Inches
Product Depth
1 1/16 Inches
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
