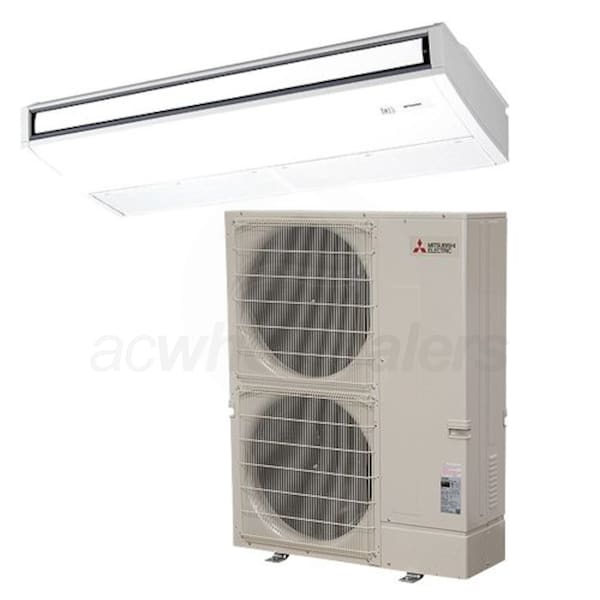

Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Ceiling Suspended Air Conditioning System - 14.5 SEER

Name: Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Ceiling Suspended Air Conditioning System - 14.5 SEER
Brand: Mitsubishi
SKU: 88254
Price: 8531.25 USD
Availability: InStock

Model: PUZ-HA42NKA PCA-A42KA7.TH Item Number: 88254

Ask a Question

Enlarge Image

View All

Add to Cart Form

Our Price: $8,531.25

$107 / Month

With our 132 months 9.99% APR*

132 fixed monthly payments required.

Click for important monthly payment and offer information.

Factory-Direct

Ships in 16-20 Weeks

Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Ceiling Suspended Air Conditioning System - 14.5 SEER Model: PUZ-HA42NKA PCA-A42KA7.TH Item Number: 88254

$8,531.25

Factory-Direct

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Free Lift Gate

*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

389 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Mini Split Heat Pump System

Bundle Includes 2 items

(1) Mitsubishi - 42k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA42NKA1)
(1) Mitsubishi 42,000 BTU Ceiling Suspended Air Conditioner Air Handler (PCA-A42KA7.TH)

View Full Bundle

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features & Bundle Details

Overview for Mitsubishi PUZ-HA42NKA PCA-A42KA7.TH

Overview for the Mitsubishi Ductless PUZ-HA42NKA PCAA42KA7 Ceiling Suspended Heat Pump Air Conditioning System

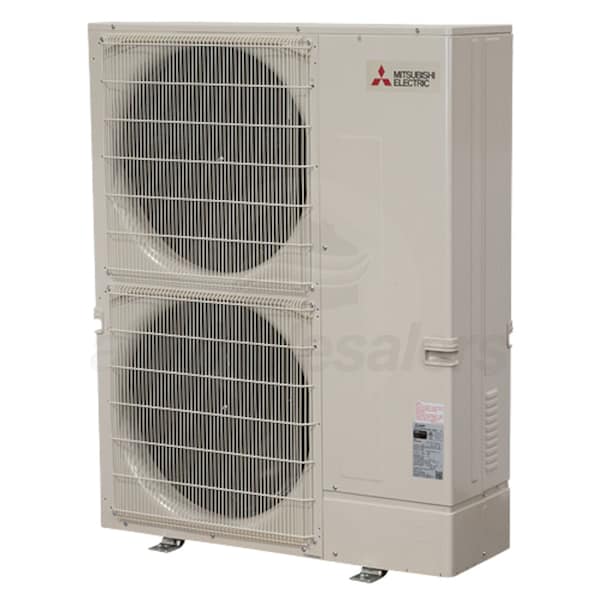

Overview for the Mitsubishi Ductless PUZ-HA42NKA Hyper Heating H2i Heat Pump Air Conditioner Condenser
This Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser is compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units. Users benefit from a wide range of installation possibilities. Every rugged outdoor unit is completely assembled and test-run at the factory prior to shipment resulting in industry leading reliability. The heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate, finished with electrostatically applied, thermally fused acrylic or polyester powder coating for superb corrosion protection. The front fan grille is tough, high-impact ABS plastic designed for years of reliability.

But why purchase the Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser is the smart solution. You get what you pay for when it comes to air conditioning.

The Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser has Ductless Inverter technology.
Housed in the outdoor unit, the Mitsubishi Electric INVERTER-driven compressor integrates advanced sensor technology to detect subtle changes in temperature. Like a car's cruise control, the sensors automatically adjust the compressor speed to match system output requirements perfectly. INVERTER-driven compressors dramatically reduce the system's energy use, unlike conventional compressors that run only at one speed, resulting in an endless wasteful cycle of starting and stopping. Excellent efficiency and significant energy savings are the result. Electronic linear expansion valves are employed to meter precisely and adapt the refrigerant flow continuously, ensuring exact capacity delivery. The Mitsubishi Ductless PUZ-HA42NKA Heat Pump Air Conditioner Condenser also utilize advanced Pulse Amplitude Modulation (PAM) circuitry. PAM adjusts the form of the current output wave to emulate the form of the supply voltage wave. These technological features allow 98 percent input power utilization.

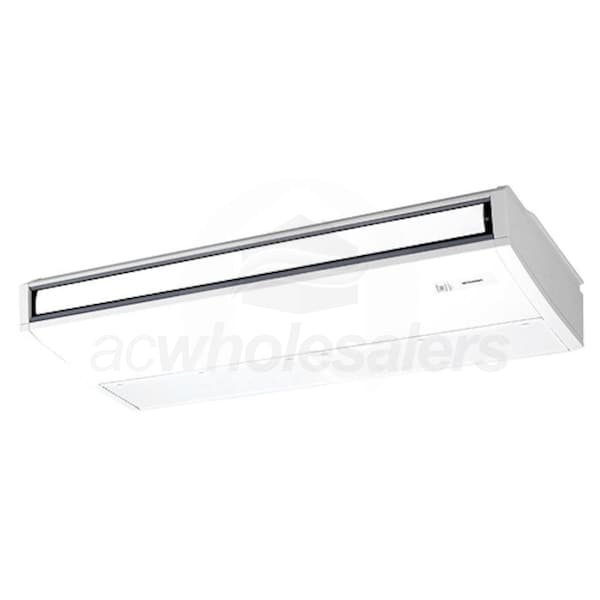

Overview for the Mitsubishi Ductless PCAA42KA7 Ceiling Suspended Air Conditioner Air Handler
The P-Series Mitsubishi Ductless Mini split Mr. Slim unit delivers flexible and convenient cooling and heating solutions to almost any commercial or large residential setting. Whether in a church, an office building, a school, a nursing home, a restaurant, a retail store, or even an equipment room, the compact design of the Mitsubishi Ductless PCAA42KA7 Ceiling Suspended Air Conditioner Air Handler makes cooling and heating difficult spaces a breeze. The Mitsubishi Ductless Mini Split P-Series equipment has various types. Each application type can be a perfect solution from almost any application.

Are there different type of Mitsubishi P-Series Ductless Air Conditioners?
Yes, Mitsubishi Electric offer a variety of types of Ductless Mini Splits when it comes to the Ductless P-Series offerings. Wall-mounted Ductless Mini Splits are classified as the Mitsubishi PKA Series, where Mitsubishi Ductless Ceiling Recessed are the PLA Series. Mitsubishi Ductless also offers Ceiling Suspended equipment which is PCA Series or if your looking for Mitsubishi Ductless technology but need it in a ducted application, no worries Mitsubishi Ductless also offers a solution. The Mitsubishi Ductless PEAD Series is a ducted solution which can branch out to multiple rooms. Mitsubishi Ductless recently added a Multi-position Air Handler similar to the unitary products under the PVA Series.

But why purchase the Mitsubishi Ductless PCAA42KA7 Ceiling Suspended Air Conditioner Air Handler when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PCAA42KA7 Ceiling Suspended Air Conditioner Air Handler from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PCAA42KA7 Ceiling Suspended Air Conditioner Air Handler system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PCAA42KA7 Ceiling Suspended Air Conditioner Air Handler is the smart solution. You get what you pay for when it comes to air conditioning.

Precision Temperature Control Technology

The PUZ-HA42NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.

H2i Technology

The PUZ-HA42NHA maintains heating operation with outdoor temperatures as low as -13° F. The PCZ-HA42NHA also features hot-start heat-pump technology to ensure that no cold air escapes during warm up.

Dehumidification

When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.

Vane Control

Optimal air flow can be achieved with the PCA-A42KA thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.

Product Note

This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.

Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..

Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.

Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.

Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.

Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Bundle Includes 2 items

Mitsubishi - 42k BTU - P-Series H2i Outdoor Condenser - Single Zone Only
Model: PUZ-HA42NKA1
Item Number: 110290
Quantity: 1
Mitsubishi 42,000 BTU Ceiling Suspended Air Conditioner Air Handler
Model: PCA-A42KA7.TH
Item Number: 80536
Quantity: 1

Specifications

Included In This Bundle

Bundle Overview

PUZ-HA42NKA1 Specifications

PCA-A42KA7.TH Specifications

Overview

Product Category

Mini Split Heat Pump System

General Information

Type

Ceiling Suspended

Product Line

P-Series H2i

Product Sub-line

Hyper-Heating

Product Category

Mini Split Heat Pump System

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Number of Zones

A zone is a room or area within a building that has its own temperature control.

Refrigerant Type

R-410A

Indoor Unit Size(s)

Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.

Outdoor Unit Size

42000 BTU

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

Line Set Size

3/8" x 5/8"

Performance

Cooling BTU

42000

Cooling Capacity

42000 BTU

Heating Capacity

48000 BTU

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

14.5

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

10.0

HSPF

HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.

10.4

Cooling Power Input

4200 Watts

Heating Power Input

4800 Watts

Low Ambient Heating

Yes

Minimum Outdoor Temperature for Heating

This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.

-13 F

Minimum Outdoor Temperature for Cooling

23 F

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Dimensions

Product Weight

389 Pounds

Shipping Weight

393 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

201754491

General Information

Type

Outdoor Condenser

Product Line

P-Series H2i

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Refrigerant Type

R-410A

Installation Location

Outdoor

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Variable-Speed

Performance

Cooling BTU

42000

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

51 dB

Low Ambient Heating

Yes

Minimum Outdoor Temperature for Heating

-13 F

Minimum Outdoor Temperature for Cooling

23 F

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

37 Amps

Recommended Breaker Size

44 Amps

Dimensions

Maximum Line Length

245 Feet

Refrigerant Charge

13.25 Pounds

Gas Connection Size

5/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

52 3/4 Inches

Product Width

41 3/8 Inches

Product Depth

14 Inches

Product Weight

287 Pounds

Shipping Weight

295 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Compressor Warranty

7 Years

General Information

Type

Ceiling Suspended

Product Line

P-Series

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Refrigerant Type

R-410A

Indoor Unit Size(s)

Motor Type

Variable-Speed

Performance

Cooling BTU

42000

Cooling Capacity

42000 BTU

Maximum Air Flow

1025 CFM

Minimum Air Flow

810 CFM

Electrical Data

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

2 Amps

Recommended Breaker Size

15 Amps

Dimensions

Gas Connection Size

6 1/4 Inches

Liquid Connection Size

3/8 Inch

Product Height

9 1/16 Inches

Product Width

63 Inches

Product Depth

26 3/4 Inches

Shipping Weight

102 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals
