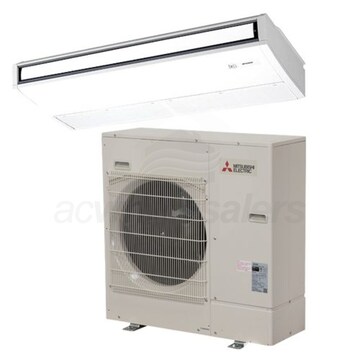

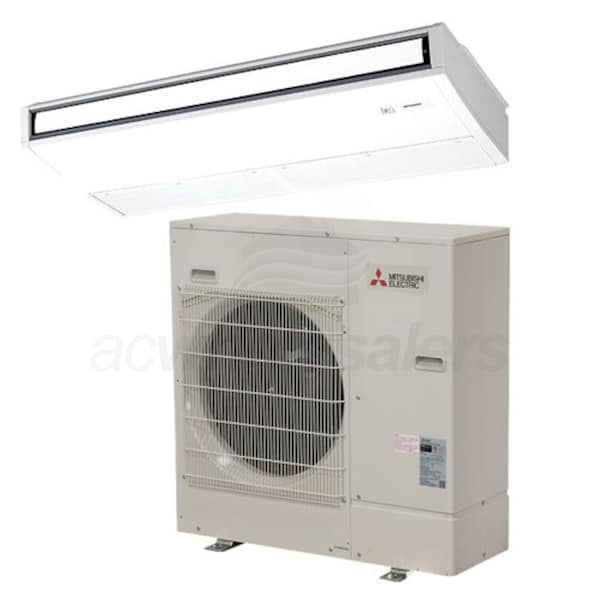

Mitsubishi - 24k BTU Cooling Only - P-Series Ceiling Suspended Air Conditioning System - 21.2 SEER

Name: Mitsubishi - 24k BTU Cooling Only - P-Series Ceiling Suspended Air Conditioning System - 21.2 SEER
Brand: Mitsubishi
SKU: 88207

Model: PUY-A24NHA7 PCAA24KA7 Item Number: 88207

(0)

Write A Review

Enlarge Image

View All

(0)

Write A Review

Specification Highlights

Condition

New

Weight

250 Pounds

Product Category

Mini Split Cooling Only System

Bundle Includes 2 items

(1) Mitsubishi - 24k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A24NHA7)
(1) Mitsubishi 24,000 BTU Ceiling Suspended Air Conditioner Air Handler (PCAA24KA7)

View Full Bundle

System BTU/h

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features & Bundle Details

Overview for Mitsubishi PUY-A24NHA7 PCAA24KA7

Overview for the Mitsubishi Ductless PUY-A24NHA7 PCAA24KA7 Ceiling Suspended Air Conditioning System

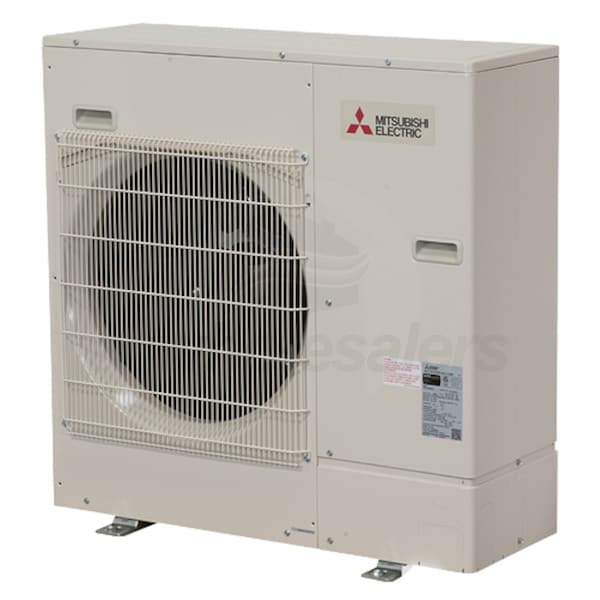

Overview for the Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser
This Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser is compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units. Users benefit from a wide range of installation possibilities. Every rugged outdoor unit is completely assembled and test-run at the factory prior to shipment resulting in industry leading reliability. The heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate, finished with electrostatically applied, thermally fused acrylic or polyester powder coating for superb corrosion protection. The front fan grille is tough, high-impact ABS plastic designed for years of reliability.

But why purchase the Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser is the smart solution. You get what you pay for when it comes to air conditioning.

The Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser has Ductless Inverter technology.
Housed in the outdoor unit, the Mitsubishi Electric INVERTER-driven compressor integrates advanced sensor technology to detect subtle changes in temperature. Like a car's cruise control, the sensors automatically adjust the compressor speed to match system output requirements perfectly. INVERTER-driven compressors dramatically reduce the system's energy use, unlike conventional compressors that run only at one speed, resulting in an endless wasteful cycle of starting and stopping. Excellent efficiency and significant energy savings are the result. Electronic linear expansion valves are employed to meter precisely and adapt the refrigerant flow continuously, ensuring exact capacity delivery. The Mitsubishi Ductless PUY-A24NHA7 Air Conditioner Condenser also utilize advanced Pulse Amplitude Modulation (PAM) circuitry. PAM adjusts the form of the current output wave to emulate the form of the supply voltage wave. These technological features allow 98 percent input power utilization.

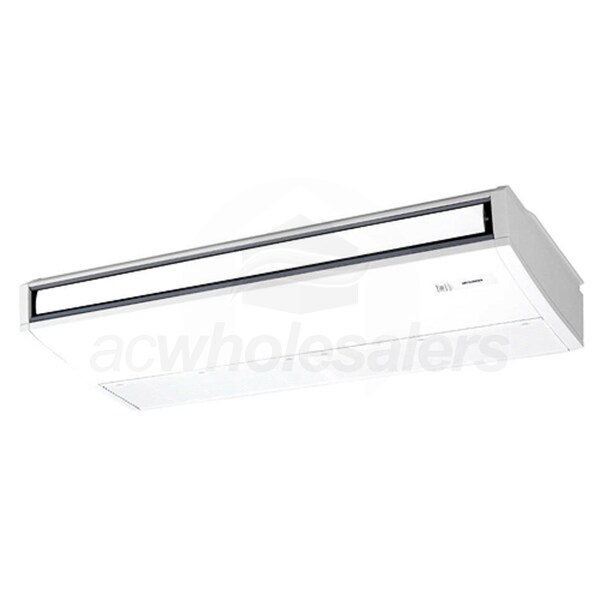

Overview for the Mitsubishi Ductless PCAA24KA7 Ceiling Suspended Air Conditioner Air Handler
The P-Series Mitsubishi Ductless Mini split Mr. Slim unit delivers flexible and convenient cooling solutions to almost any commercial or large residential setting. Whether in a church, an office building, a school, a nursing home, a restaurant, a retail store, or even an equipment room, the compact design of the Mitsubishi Ductless PCAA24KA7 Ceiling Suspended Air Conditioner Air Handler makes cooling difficult spaces a breeze. The Mitsubishi Ductless Mini Split P-Series equipment has various types. Each application type can be a perfect solution from almost any application.

Are there different type of Mitsubishi P-Series Ductless Air Conditioners?
Yes, Mitsubishi Electric offer a variety of types of Ductless Mini Splits when it comes to the Ductless P-Series offerings. Wall-mounted Ductless Mini Splits are classified as the Mitsubishi PKA Series, where Mitsubishi Ductless Ceiling Recessed are the PLA Series. Mitsubishi Ductless also offers Ceiling Suspended equipment which is PCA Series or if your looking for Mitsubishi Ductless technology but need it in a ducted application, no worries Mitsubishi Ductless also offers a solution. The Mitsubishi Ductless PEAD Series is a ducted solution which can branch out to multiple rooms. Mitsubishi Ductless recently added a Multi-position Air Handler similar to the unitary products under the PVA Series.

But why purchase the Mitsubishi Ductless PCAA24KA7 Ceiling Suspended Air Conditioner Air Handler when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PCAA24KA7 Ceiling Suspended Air Conditioner Air Handler from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PCAA24KA7 Ceiling Suspended Air Conditioner Air Handler system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PCAA24KA7 Ceiling Suspended Air Conditioner Air Handler is the smart solution. You get what you pay for when it comes to air conditioning.

Precision Temperature Control Technology

The PUY-A24NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.

Dehumidification

When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.

Vane Control

Optimal air flow can be achieved with the PCA-A24KA thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.

Product Note

This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.

Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..

Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.

Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.

Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.

Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Bundle Includes 2 items

Mitsubishi - 24k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only
Model: PUY-A24NHA7
Item Number: 84635
Quantity: 1
Mitsubishi 24,000 BTU Ceiling Suspended Air Conditioner Air Handler
Model: PCA-A24KA7.TH
Item Number: 84618
Quantity: 1

Specifications

Included In This Bundle

Bundle Overview

PUY-A24NHA7 Specifications

PCA-A24KA7.TH Specifications

Overview

Product Category

Mini Split Cooling Only System

General Information

Type

Ceiling Suspended

Product Line

P-Series

Product Category

Mini Split Cooling Only System

Operating Mode

Cooling Only

Number of Zones

Refrigerant Type

R-410A

Indoor Unit Size(s)

Outdoor Unit Size

24000 BTU

DOE Regional Compliance

Nationwide

Line Set Size

3/8" x 5/8"

Performance

Cooling BTU

24000

Cooling Capacity

24000 BTU

SEER

21.2

EER

12.2

Cooling Power Input

1960 Watts

Minimum Outdoor Temperature for Cooling

23 F

Dimensions

Product Weight

250 Pounds

Shipping Weight

278 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

201754529

General Information

Type

Ceiling Suspended

Product Line

P-Series

Product Category

Mini Split System Components

Operating Mode

Heating and Cooling

Refrigerant Type

R-410A

Indoor Unit Size(s)

Motor Type

Variable-Speed

Configuration

Single-Zone

Performance

Cooling BTU

24000

Cooling Capacity

24000 BTU

Maximum Air Flow

670 CFM

Minimum Air Flow

530 CFM

Electrical Data

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

1 Amp

Recommended Breaker Size

15 Amps

Dimensions

Gas Connection Size

5/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

9 1/16 Inches

Product Width

53 1/8 Inches

Product Depth

26 3/4 Inches

Product Weight

222 Pounds

Shipping Weight

258 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Parts Warranty

5 Years

Overview

Product Category

Mini Split System Components
