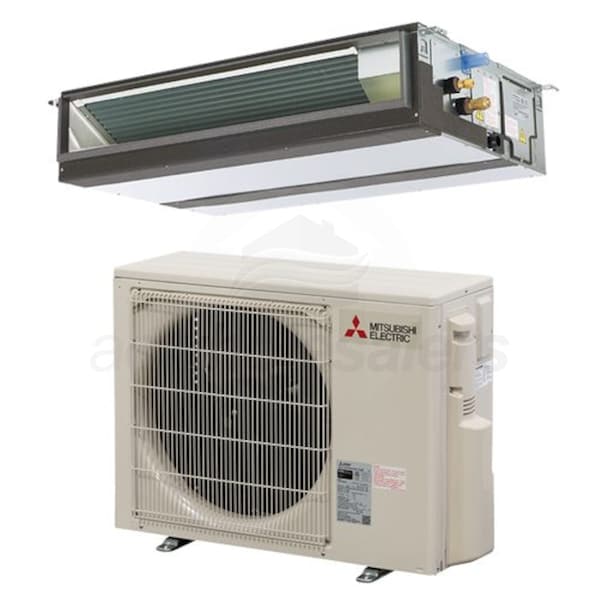

Mitsubishi 12,000 BTU 21 SEER Ducted Mini Split Air Conditioner System

Model: PUY-A12NKA7 PEAD-A12AA7 Item Number: 88211
Ask a Question
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
View All
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Mitsubishi PUY-A12NKA7 PEAD-A12AA7
Enlarge Image

Price Match

PLUS Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
$3,540.00
Ships in 7-14 Business Days
Free Shipping *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Free Lift Gate *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Mitsubishi 12,000 BTU 21 SEER Ducted Mini Split Air Conditioner System Model: PUY-A12NKA7 PEAD-A12AA7 Item Number: 88211
$3,540.00
QTY
Features
Specifications
Reviews
Product Q&A
Manuals
Save For Later
Ask a Question
Condition: New This product is new and has never been used. It's in its original packaging, which has not been opened.
Weight: 92 Pounds Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Specification Highlights
    Type
    Single Zone
    Product Line
    P-Series
    Operating Mode
    Cooling Only
    Number of Zones
    1
View More
Bundle Includes 2 items

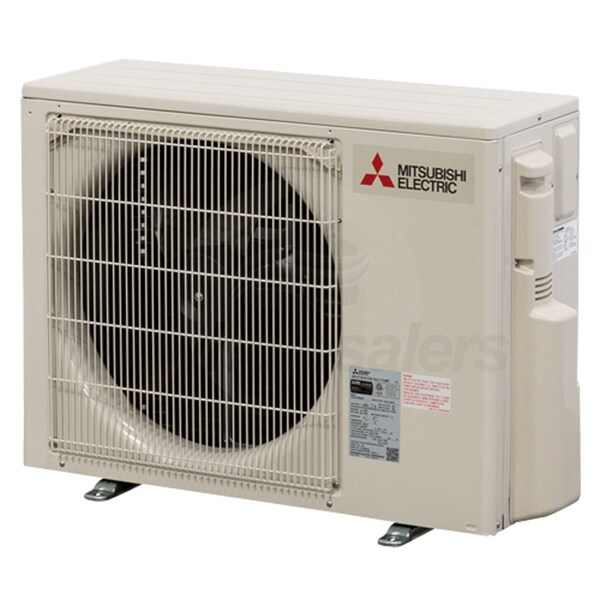

  • (1) Mitsubishi 12,000 BTU Mini Split Air Conditioner P-Series Condenser (PUY-A12NKA7)
  • (1) Mitsubishi 12,000 BTU Ducted Mini Split Air Conditioner Air Handler (PEAD-A12AA7)
View Full Bundle
Features & Bundle Details

Features & Bundle Details

Overview for Mitsubishi PUY-A12NKA7 PEAD-A12AA7

    Overview for the Mitsubishi Ducted PUY-A12NKA7 PEAD-A12AA7 Air Conditioning SystemOverview for the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner CondenserThis Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser is compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units. Users benefit from a wide range of installation possibilities. Every rugged outdoor unit is completely assembled and test-run at the factory prior to shipment resulting in industry leading reliability. The heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate, finished with electrostatically applied, thermally fused acrylic or polyester powder coating for superb corrosion protection. The front fan grille is tough, high-impact ABS plastic designed for years of reliability.But why purchase the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser when I can just use a window unit?Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser is the smart solution. You get what you pay for when it comes to air conditioning.The Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser has Ductless Inverter technology.Housed in the outdoor unit, the Mitsubishi Electric INVERTER-driven compressor integrates advanced sensor technology to detect subtle changes in temperature. Like a car's cruise control, the sensors automatically adjust the compressor speed to match system output requirements perfectly. INVERTER-driven compressors dramatically reduce the system's energy use, unlike conventional compressors that run only at one speed, resulting in an endless wasteful cycle of starting and stopping. Excellent efficiency and significant energy savings are the result. Electronic linear expansion valves are employed to meter precisely and adapt the refrigerant flow continuously, ensuring exact capacity delivery. The Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser also utilize advanced Pulse Amplitude Modulation (PAM) circuitry. PAM adjusts the form of the current output wave to emulate the form of the supply voltage wave. These technological features allow 98 percent input power utilization.Overview for the Mitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air HandlerMitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air Handler utilizes short duct runs, allowing for the conditioning of adjacent spaces or extending the range of distributed capacities within a single zone with very little visual impact to the conditioned area. With features like a built-in condensate lift mechanism, adjustable static pressure, multiple fan speeds, DRY Mode, and an operating sound as low as 23 dB(A), the Mitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air Handler expands the number of application possibilities. The Mitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air Handler is ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference ballrooms, fitness centers, and more.Are there different type of Mitsubishi P-Series Ductless Air Conditioners?Yes, Mitsubishi Electric offer a variety of types of Ductless Mini Splits when it comes to the Ductless P-Series offerings. Wall-mounted Ductless Mini Splits are classified as the Mitsubishi PKA Series, where Mitsubishi Ductless Ceiling Recessed are the PLA Series. Mitsubishi Ductless also offers Ducted equipment which is PCA Series or if you're looking for Mitsubishi Ductless technology but need it in a ducted application, no worries Mitsubishi Ductless also offers a solution. The Mitsubishi Ductless PEAD Series is a ducted solution which can branch out to multiple rooms. Mitsubishi Ductless recently added a Multi-position Air Handler similar to the unitary products under the PVA Series.The Mitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air Handler is a versatile piece of Ductless technology.Similar to the Mitsubishi Ductless Mini Split M-Series units the Mitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air Handler fills larger spaces with substantial cooling from a compact, ducted package. Walk into any room where a Mitsubishi Ductless PEAD-A12AA7 Ducted Air Conditioner Air Handler is installed, and all you'll notice is the perfectly comfortable climate. What you may not notice is the unit itself, for it mounts unobtrusive and concealed design for use with short-run duct work.
  • The manufacturer model number(s): Mitsubishi PUY-A12NKA7 PEAD-A12AA7
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Bundle Includes 2 items
Specifications

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
PUY-A12NKA7 Specifications
PEAD-A12AA7 Specifications
General Information
Type
Single Zone
Product Line
P-Series
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling Only
Number of Zones A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
12000
Performance
Cooling Capacity
12000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
21.1
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
13
Cooling Power Input
920 Watts
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
92 Pounds
Certifications
AHRI Certified
Yes
General Information
Type
Condenser
Product Line
PUY
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Nominal Cooling Capacity
12000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
34 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
21.1
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
9.875 Inches
Product Width
45.312 Inches
Product Depth
28.875 Inches
Product Weight
58 Pounds
Shipping Weight
69 Pounds
Liquid Valve Connection Size
0.25 Inches
Suction Valve Connection Size
0.5 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
General Information
Product Line
P-Series
Refrigerant Type
R410-A
Motor Type
Variable-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Single-Zone
Performance
Nominal Cooling Capacity
12000 BTU
Minimum Air Flow
353 CFM
Maximum Air Flow
494 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1.45 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
9.875 Inches
Product Width
35.437 Inches
Product Depth
28.875 Inches
Shipping Weight
69 Pounds
Liquid Valve Connection Size
0.25 Inches
Suction Valve Connection Size
0.5 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
