Mitsubishi - 12k BTU Cooling + Heating - M-Series KA H2i Concealed Duct Air Conditioning System - 19.3 SEER

Model: PEZ-KA12NAH Item Number: 107666
Ask a Question
Mitsubishi PEZ-KA12NAH
PREVIOUS
NEXT
Mitsubishi PEZ-KA12NAH
Mitsubishi PEZ-KA12NAH
Mitsubishi PEZ-KA12NAH
Enlarge Image
Mitsubishi PEZ-KA12NAH
Mitsubishi PEZ-KA12NAH
Mitsubishi PEZ-KA12NAH
View All
Our Price: $2,943.00
synchrony card icon
$52 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Backordered
Estimated Availability September 08, 2021
Mitsubishi - 12k BTU Cooling + Heating - M-Series KA H2i Concealed Duct Air Conditioning System - 19.3 SEER
Mitsubishi - 12k BTU Cooling + Heating - M-Series KA H2i Concealed Duct Air Conditioning System - 19.3 SEER Model: PEZ-KA12NAH Item Number: 107666
$2,943.00
Backordered
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    129 Pounds Learn More
    Type
    Concealed Duct
    Product Line
    M-Series
View More

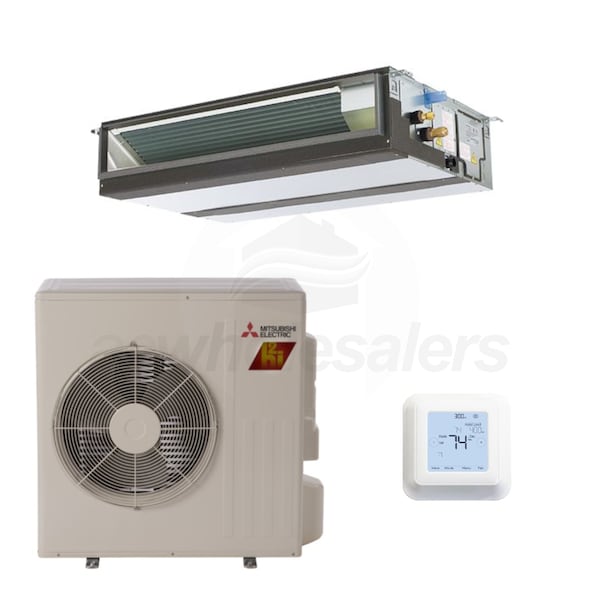

Bundle Includes 3 items
  • product image
    (1) Mitsubishi - 12k - M-Series H2i Univseral Outdoor Condenser - Single Zone Only (SUZ-KA12NAHZ.TH)
  • product image
    (1) Mitsubishi 12,000 BTU Ducted Mini Split Air Conditioner Air Handler (PEAD-A12AA7)
  • product image
    (1) Mitsubishi Wireless Programmable RedLINK Thermostat & Receiver Kit (MHK2)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi PEZ-KA12NAH

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the SE-KA12NAH is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned comfort to homes in frigid climates. The concealed duct indoor unit is designed to bring unobtrusive cooling to any room in a large home or business while taking advantage of existing ductwork. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller and base pan heater factory installed, this system is the perfect combination of convenience and comfort for any application in a sub-freezing environment.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 3 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
SUZ-KA12NAHZ.TH Specifications
PEAD-A12AA7 Specifications
MHK2 Specifications
General Information
Type
Concealed Duct
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
15000 BTU
SEER Learn More
19.3
EER Learn More
14.1
HSPF Learn More
11.0
Cooling Power Input
850 Watts
Heating Power Input
1100 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
129 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204627044
General Information
Type
Outdoor Condenser
Product Line
SUZ H2i
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
34 5/8 Inches
Product Width
38 9/16 Inches
Product Depth
13 Inches
Product Weight
129 Pounds
Shipping Weight
148 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Concealed Duct
Product Line
P-Series
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Motor Type
Variable-Speed
Configuration Learn More
Single-Zone
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
494 CFM
Minimum Air Flow
353 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1.45 Amps
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 7/8 Inches
Product Width
35 7/16 Inches
Product Depth
28 7/8 Inches
Shipping Weight
69 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Product Line
RedLINK
Programmable
Yes
Power Source
AA Batteries
Interface
Touchscreen
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Dimensions
Product Height
4 1/12 Inches
Product Width
4 1/12 Inches
Product Depth
1 1/16 Inches
