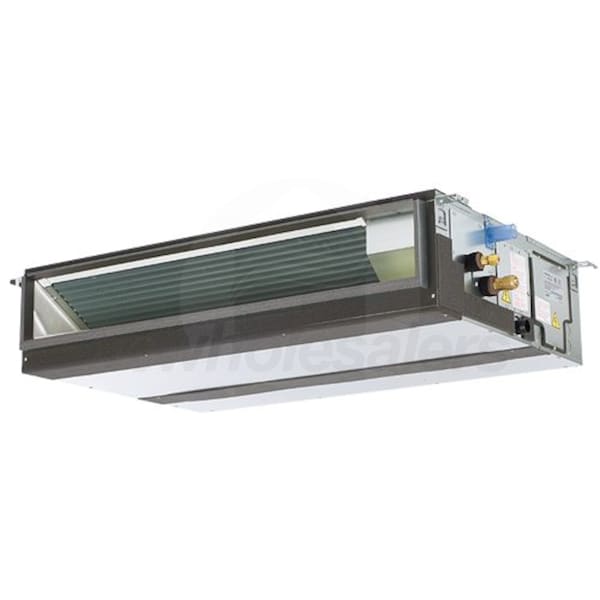

Mitsubishi 24,000 BTU Ducted Mini Split Air Conditioner Air Handler

Model: PEAD-A24AA7 Item Number: 84620
Mitsubishi PEAD-A24AA7
PREVIOUS
NEXT
Mitsubishi PEAD-A24AA7
Enlarge Image
Mitsubishi PEAD-A24AA7
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
Mitsubishi PEAD-A24AA7
Watch Video
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    220 Pounds Learn More
    220 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi PEAD-A24AA7

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

The P-Series Mitsubishi Ductless Mini split Mr. Slim unit delivers flexible and convenient cooling and heating solutions to almost any commercial or large residential setting. Whether in a church, an office building, a school, a nursing home, a restaurant, a retail store, or even an equipment room, the compact design of the Mitsubishi Ducted PEAD-A24AA7 Air Conditioner Air Handler makes cooling and heating difficult spaces a breeze. The Mitsubishi Ductless Mini Split P-Series equipment has various types. Each application type can be a perfect solution from almost any application.
  • Product Features
  • Wide Ranging External Static Pressure
  • Built In Condensate Lift Mechanism
  • Auto Fan Speed Mode
  • Optional FB Series
  • Unobtrusive Ceiling Concealed Design
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Motor Type
    Variable-Speed
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Maximum Air Flow
    741 CFM
    Minimum Air Flow
    512 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    2.63 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 7/8 Inches
    Product Width
    43 5/16 Inches
    Product Depth
    28 7/8 Inches
    Product Weight
    220 Pounds
    Shipping Weight
    258 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
