Mitsubishi M-Series - 18k BTU Cooling + Heating - H2i Floor Mounted Air Conditioning System - 22.0 SEER2

Model: MZ-KJ18NA Item Number: 76686
Mitsubishi MZ-KJ18NA
PREVIOUS
NEXT
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Enlarge Image
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Watch Video
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
Mitsubishi MZ-KJ18NA
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    157 Pounds Learn More
    157 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System

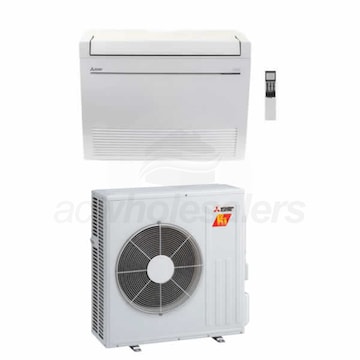

Bundle Includes 2 items
  • product image

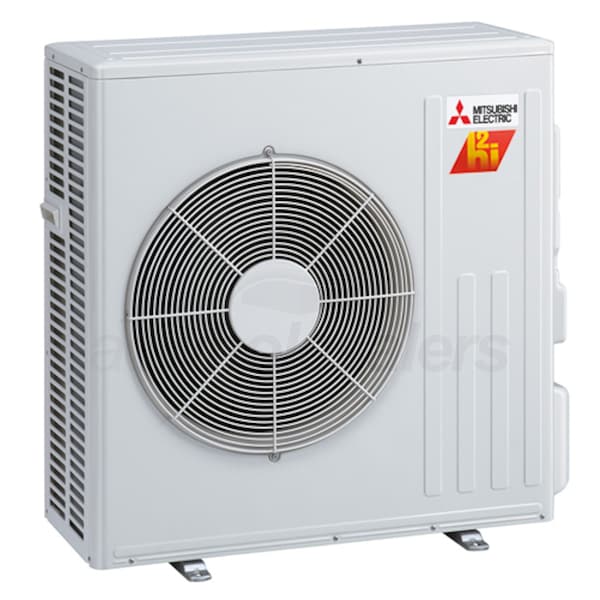

    (1) Mitsubishi 18,000 BTU 21 SEER Ductless Hyper Heat Pump Condenser (MUFZ-KJ18NAHZ-U1)
  • product image

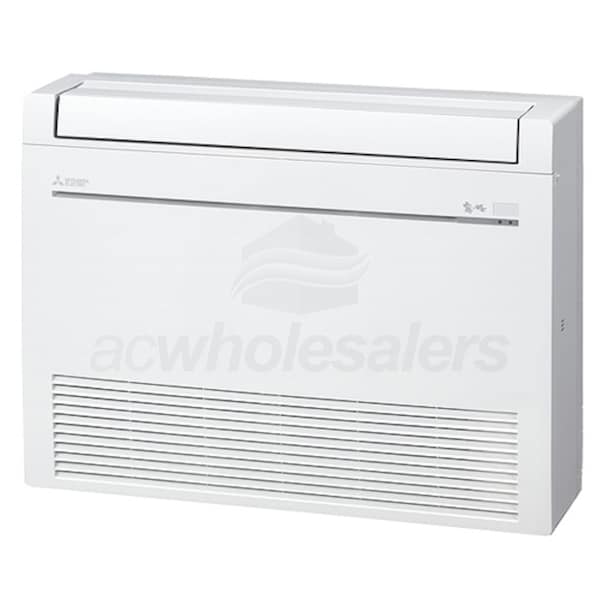

    (1) Mitsubishi 18,000 BTU Floor Mount Heat Pump Air Handler (MFZ-KJ18NA-U1)
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MZ-KJ18NA

Overview for Mitsubishi MUFZ-KJ18NAHZ-U1 MFZ-KJ18NA-U1
The Mr. Slim series from Mitsubishi Electric MFZ Floor-standing indoor unit mounts three inches above the floor and has front panel access to the filter for ease of cleaning. The MFZ units provide energy efficient solutions to provide personalized comfort for difficult areas that may be smaller or don't have usable space on the walls.
  • H2i Technology
  • Low or negative ambient temperatures don't bother the MZ-KJ18NA. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 F.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MFZ-KJ can improve the efficiency of cooling operations without compromising the comfort provided.
  • Powerful Mode
  • The powerful setting on the MFZ-KJ makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • Multiple Airflow Options
  • When 2 FLOW is selected the unit will blow air from the top and front of the unit. When 1 FLOW is selected, air only blows from the top of the unit.
  • Dehumidification
  • When the indoor unit is run in dry mode, it will remove unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the room.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Hot Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Recommended line set sizes for indoor unit connectivity:
  • MFZ-KJ18NA-U1: 1/4" x 1/2" Line Set
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Floor Mounted
    Product Line
    M-Series H2i
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    18000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    17000 BTU
    Heating Capacity
    21000 BTU
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    22.0
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.6
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    10.3
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    157 Pounds
    Shipping Weight
    161 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    210819448
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    18000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    16 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    100 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    34 5/8 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    13 Inches
    Product Weight
    124 Pounds
    Shipping Weight
    134 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Floor Mounted
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

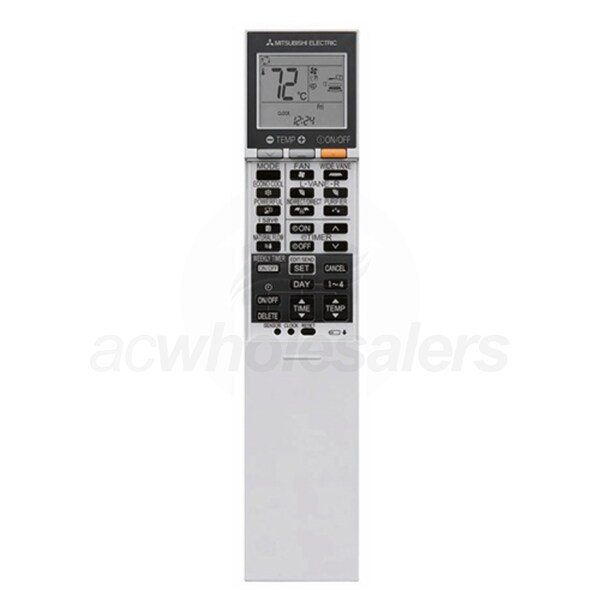

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Maximum Air Flow
    470 CFM
    Minimum Air Flow
    168 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    23 5/8 Inches
    Product Width
    29 25/48 Inches
    Product Depth
    8 23/48 Inches
    Product Weight
    33 Pounds
    Shipping Height
    27 3/4 Inches
    Shipping Width
    32 3/4 Inches
    Shipping Depth
    12 Inches
    Shipping Weight
    43 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
