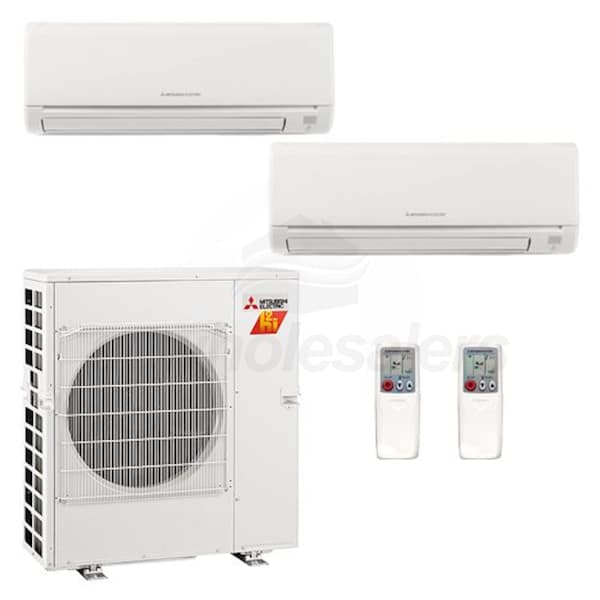

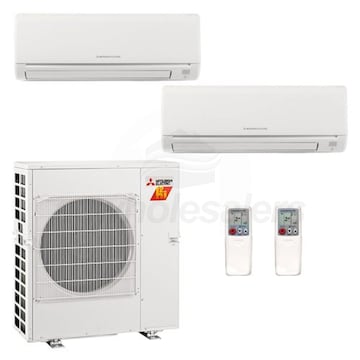

Mitsubishi Wall Mounted 2-Zone System - 20,000 BTU Outdoor - 6k + 15k Indoor - 20.0 SEER

Model: MXZ2C20NA MSZGL06NA MSZGL15NA Item Number: 87403
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
PREVIOUS
NEXT
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Enlarge Image
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    198 Pounds Learn More
    198 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
View More
Bundle Includes 4 items
  • product image

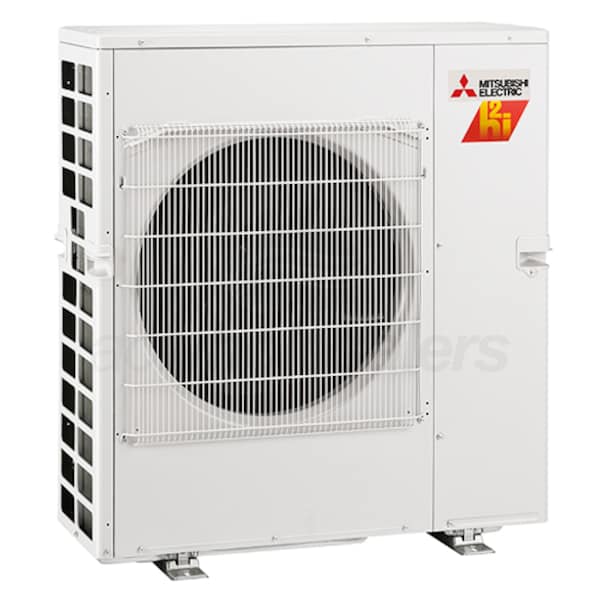

    (1) Mitsubishi - 20k BTU - M-Series Outdoor Condenser - For 2 Zones (MXZ-2C20NA3)
  • product image

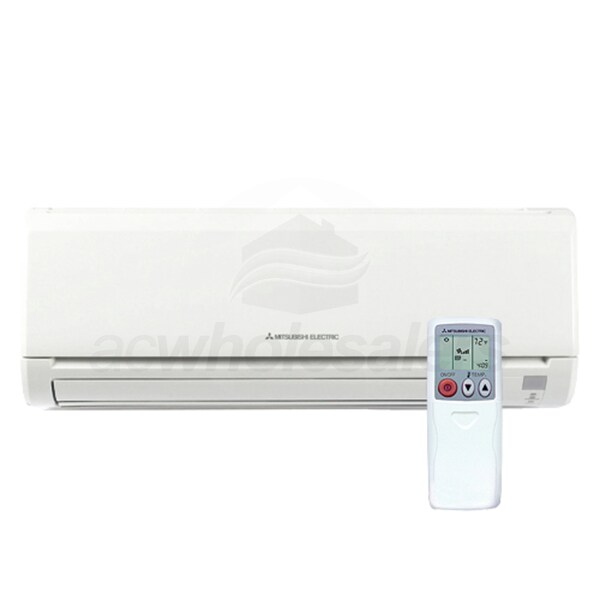

    (1) Mitsubishi GL-Series 15k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL15NA-U1)
  • product image
    (1) Mitsubishi GL-Series 6k BTU Wall Mounted Unit - For Multi-Zone (MSZ-GL06NA-U1)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA

Overview for Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA

With the Mr. Slim series from Mitsubishi Electric you can enjoy ideal levels of comfort in the rooms you use most with Mitsubishi's multiroom system. Each room (zone) operates independently. People in different rooms the kitchen, master bedroom, or living room can With the Mr. Slim series from Mitsubishi Electric you can enjoy temperature settings that make each of them most comfortable. If youre looking for a complete comfort solution for several different rooms, the MXZ multi-room system is the right choice. The system is flexible enough to conform to a particular cooling and heating need and offers numerous different indoor unit combinations. An MXZ multi-room system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home. Homeowners can also benefit from lower energy costs year-round while staying comfortable thanks to Mitsubishi Electrics energy-efficient technologies that are a part of every system that we make.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
MXZ-2C20NA3 Specifications
MSZ-GL15NA-U1 Specifications
MSZ-GL06NA-U1 Specifications
MAC-A454JP-E Specifications
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 15
Outdoor Unit Size
20000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
20.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
12.7
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
10
Cooling Power Input
2245 Watts
Heating Power Input
2455 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
198 Pounds
Shipping Weight
226 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
207342459
General Information
Type
Outdoor Condenser
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
No
Base Pan Heater Included
No
Performance
Cooling BTU
20000
Cooling Capacity
20000 BTU
Heating Capacity
25000 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
54 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17..2 Amps
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
27 5/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
126 Pounds
Shipping Height
33 1/2 Inches
Shipping Width
40 Inches
Shipping Depth
18 1/2 Inches
Shipping Weight
147 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

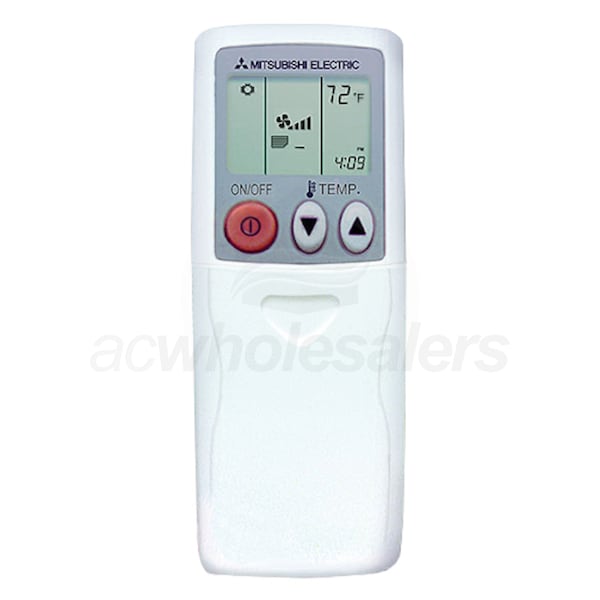

Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Installation Location
Indoor
Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Moisture Removal
2.7 Pints/Hour
Maximum Air Flow
533 CFM
Minimum Air Flow
205 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Maximum Air Flow
399 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Port Adapter
Product Category
Mini Split Accessories
Connection Type
Flared
Dimensions
End 1 Connection Size
3/8 Inch
End 2 Connection Size
1/2 Inch
Product Weight
0.5 Pounds
Warranty Information
Parts W
90 Days
Overview
Product Category
Mini Split Accessories
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Manuals
View More
Share
×
Mitsubishi Wall Mounted 2-Zone System - 20,000 BTU Outdoor - 6k + 15k Indoor - 20.0 SEER
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Loading
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Watch Video
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
Mitsubishi MXZ2C20NA MSZGL06NA MSZGL15NA
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
