Mitsubishi - 24k BTU - M-Series Outdoor Condenser - For 2-3 Zones

Model: MXZ-3C24NA4 Item Number: 151388

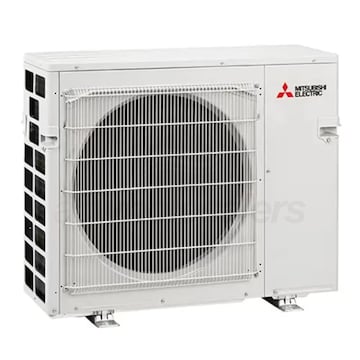

Mitsubishi MXZ-3C24NA4
PREVIOUS
NEXT
Mitsubishi MXZ-3C24NA4
Enlarge Image
Originally $2,989.50, you save 3%
Our Price: $2,900.00
synchrony card icon
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Thursday, November 7th
Shipping to60601
Mitsubishi - 24k BTU - M-Series Outdoor Condenser - For 2-3 Zones
Mitsubishi - 24k BTU - M-Series Outdoor Condenser - For 2-3 Zones Model: MXZ-3C24NA4 Item Number: 151388
$2,900.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    142 Pounds Learn More
    142 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    M-Series
Capacity (BTU/hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi MXZ-3C24NA4

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MXZ-3C24NA4 is an outdoor condenser for use in multi-zone mini split applications. It supports up to three indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units and efficiency-boosting inverter technology, the MXZ-3C24NA4 is a smart addition for nearly any home.
  • Precision Temperature Control Technology
  • This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Mix and Match
  • The MXZ-3C24NA4 is compatible with more than a dozen different indoor units. It even works with the advanced MSZ-FS indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.
  • Product Compatible With
  • Mitsubishi MSZ-GS Wall Mounted Mini Split Indoor Units
  • Mitsubishi MSZ-FS Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MFZ-KJ Floor Standing Mini Split Indoor Units
  • Mitsubishi SEZ-KD Concealed Duct Mini Split Indoor Units
  • Mitsubishi MLZ-KP One-Way Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi SLZ-KF Ceiling Cassette Mini Split Indoor Units
  • Product Note
    This product requires two compatible Mitsubishi mini split indoor units and the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    No
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    22000 BTU
    Heating Capacity
    30600 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    22.1 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    1/2 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    31 17/48 Inches
    Product Width
    37 19/48 Inches
    Product Depth
    13 Inches
    Product Weight
    142 Pounds
    Shipping Height
    38 3/8 Inches
    Shipping Width
    41 17/48 Inches
    Shipping Depth
    7 5/16 Inches
    Shipping Weight
    174 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
