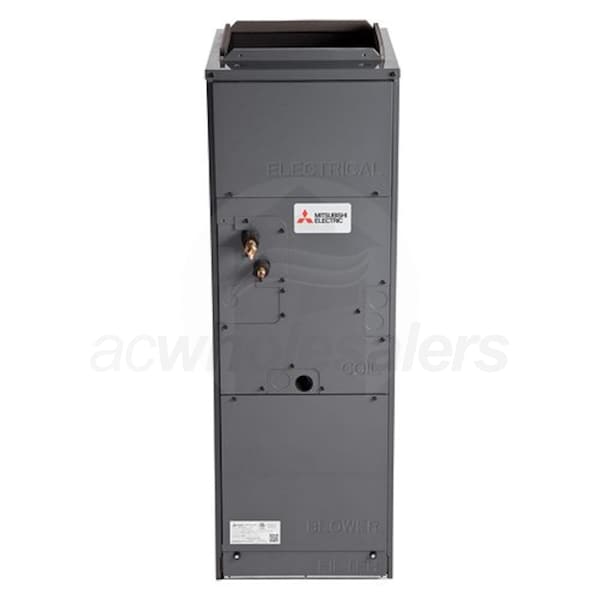

Mitsubishi 30,000 BTU Multi Position Ducted Heat Pump Air Handler

Model: MVZ-A30AA7 Item Number: 84616
Mitsubishi MVZ-A30AA7
PREVIOUS
NEXT
Mitsubishi MVZ-A30AA7
Mitsubishi MVZ-A30AA7
Mitsubishi MVZ-A30AA7
Enlarge Image
Mitsubishi MVZ-A30AA7
Mitsubishi MVZ-A30AA7
Mitsubishi MVZ-A30AA7
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Ducted Vertical Air Handler
    Product Line
    M-Series
    Operating Mode
    Heating and Cooling
Features
View More

Features

Overview for Mitsubishi MVZ-A30AA7

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Overview for Mitsubishi MVZ-A30AA7Mitsubishi MVZ-A30AA7 30,000 BTU Multi Position Ducted Heat Pump Air Handler.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    General Information
    Type
    Ducted Vertical Air Handler
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    30
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Zone
    Performance
    Cooling BTU
    30000
    Cooling Capacity
    30000 BTU
    Maximum Air Flow
    875 CFM
    Minimum Air Flow
    613 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    4.13 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    54 1/4 Inches
    Product Width
    21 Inches
    Product Depth
    21 5/8 Inches
    Shipping Weight
    145 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
